DIMENSIONS SPECIFICATIONS

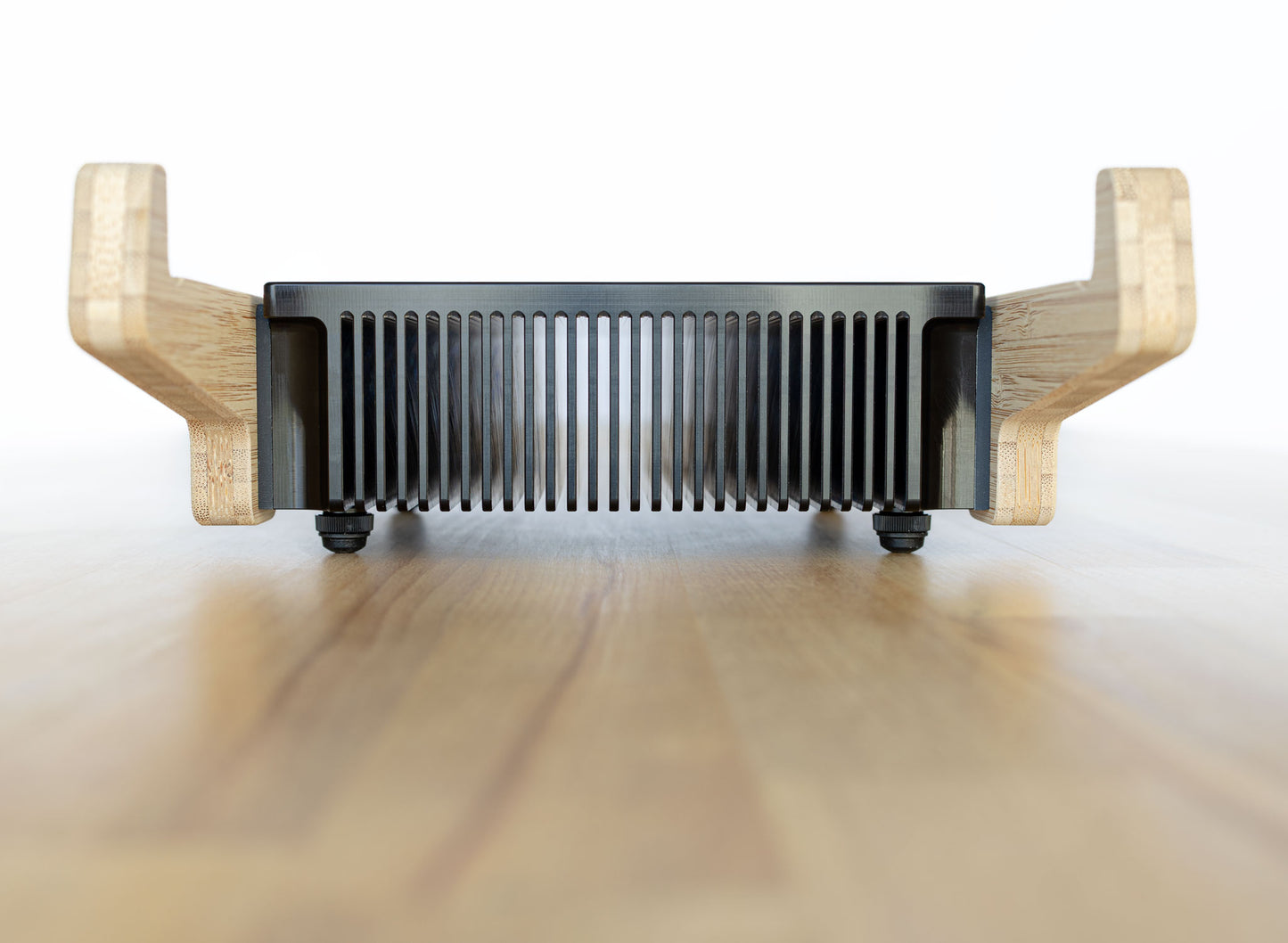

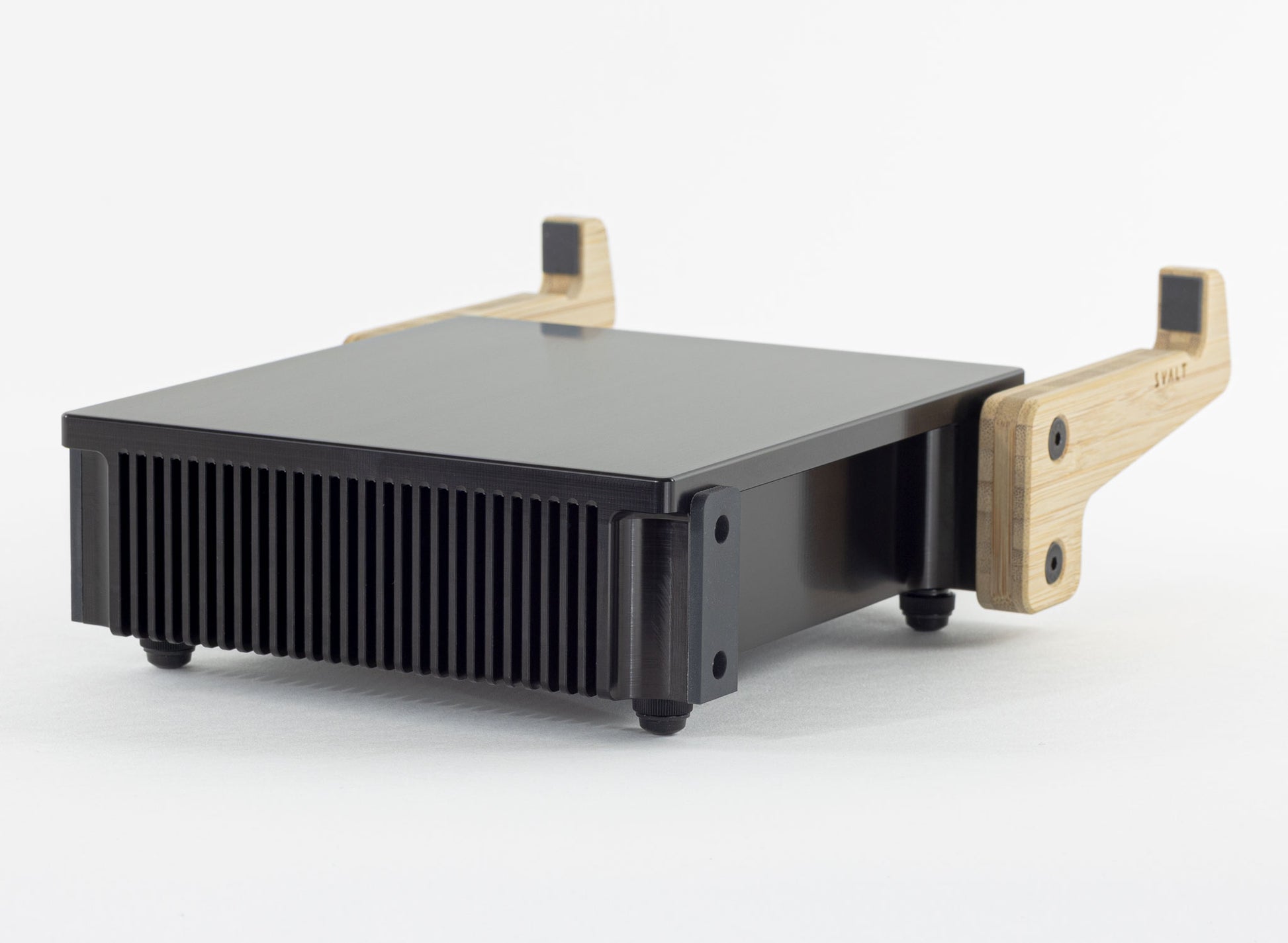

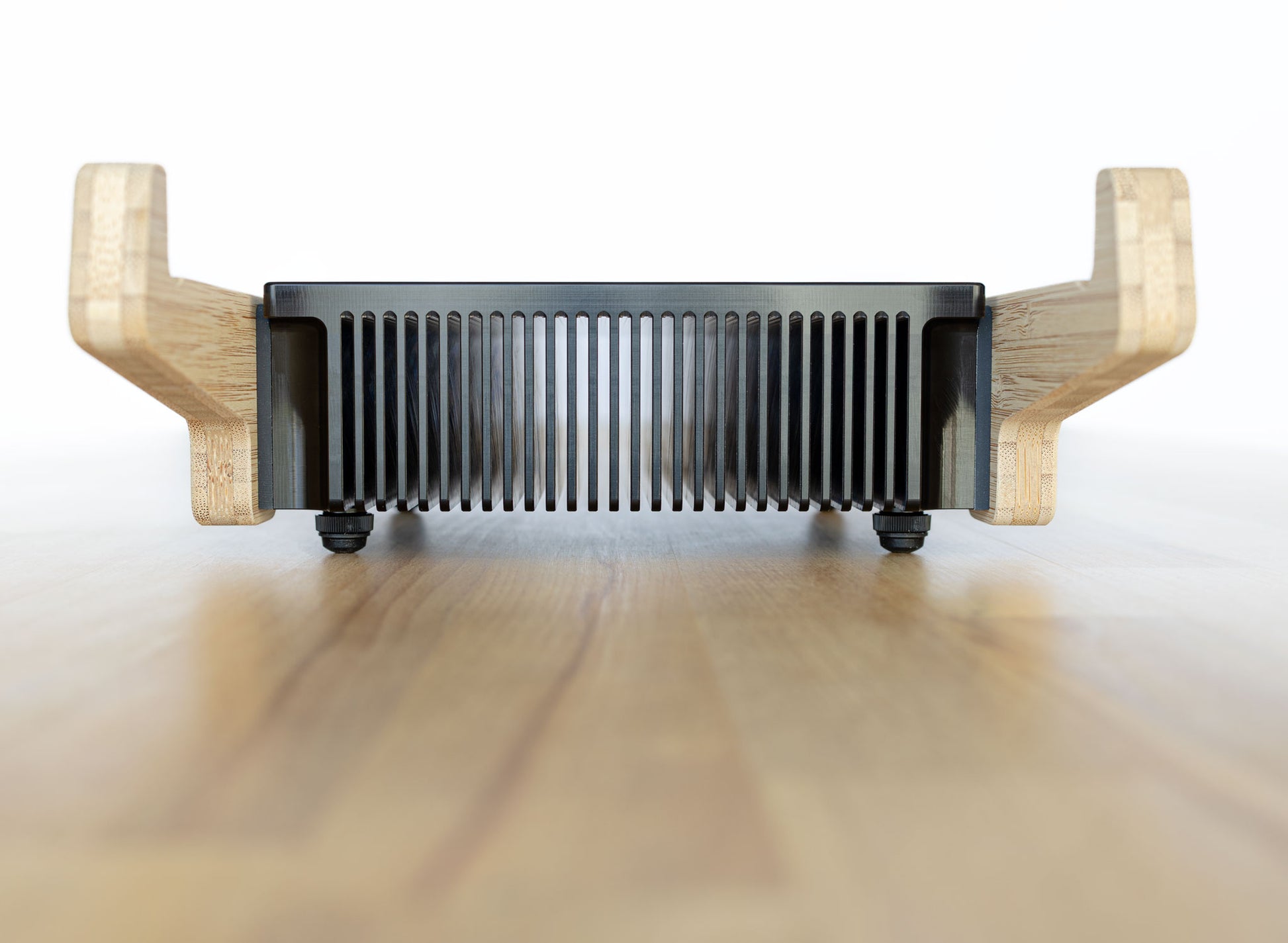

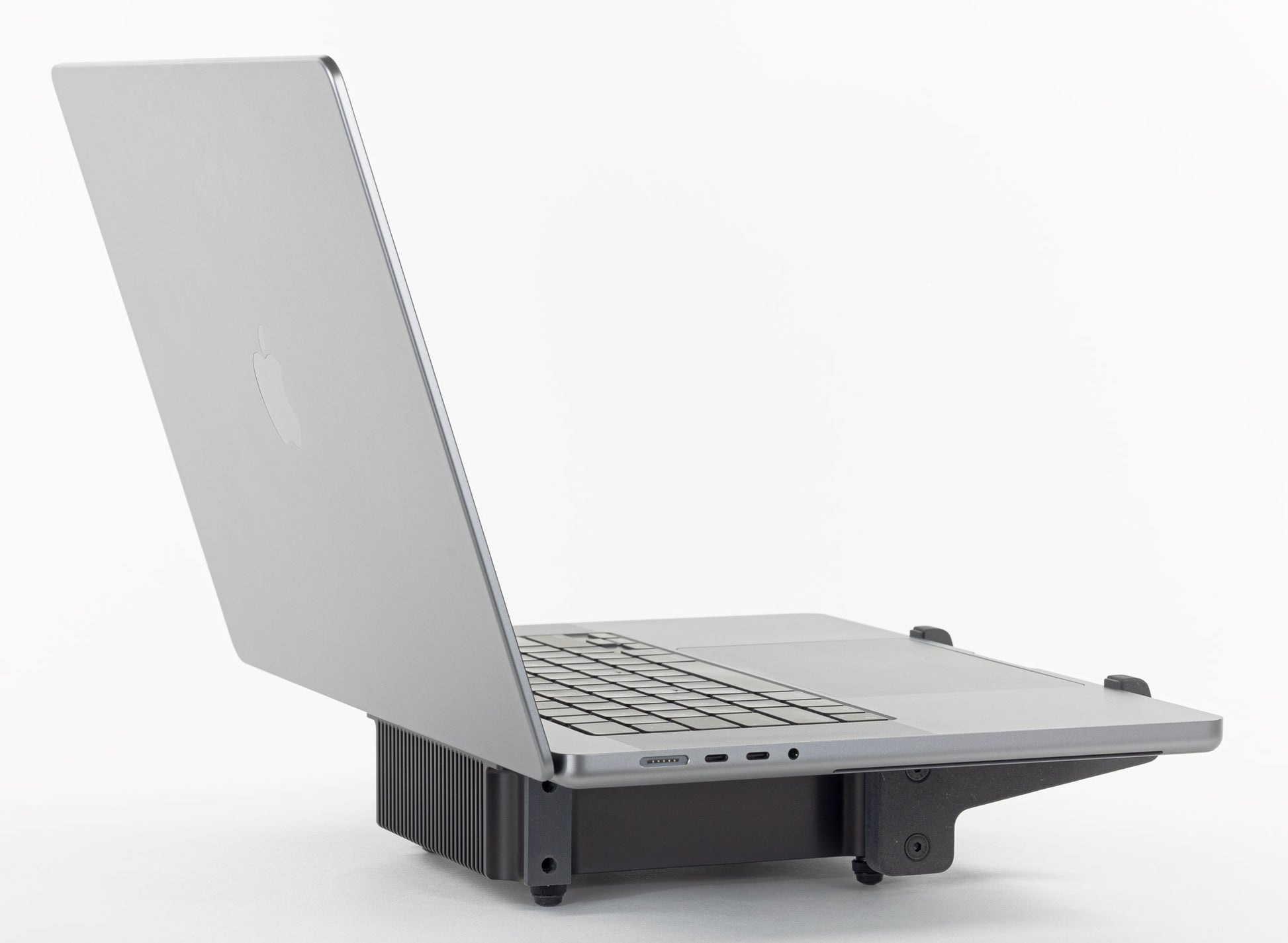

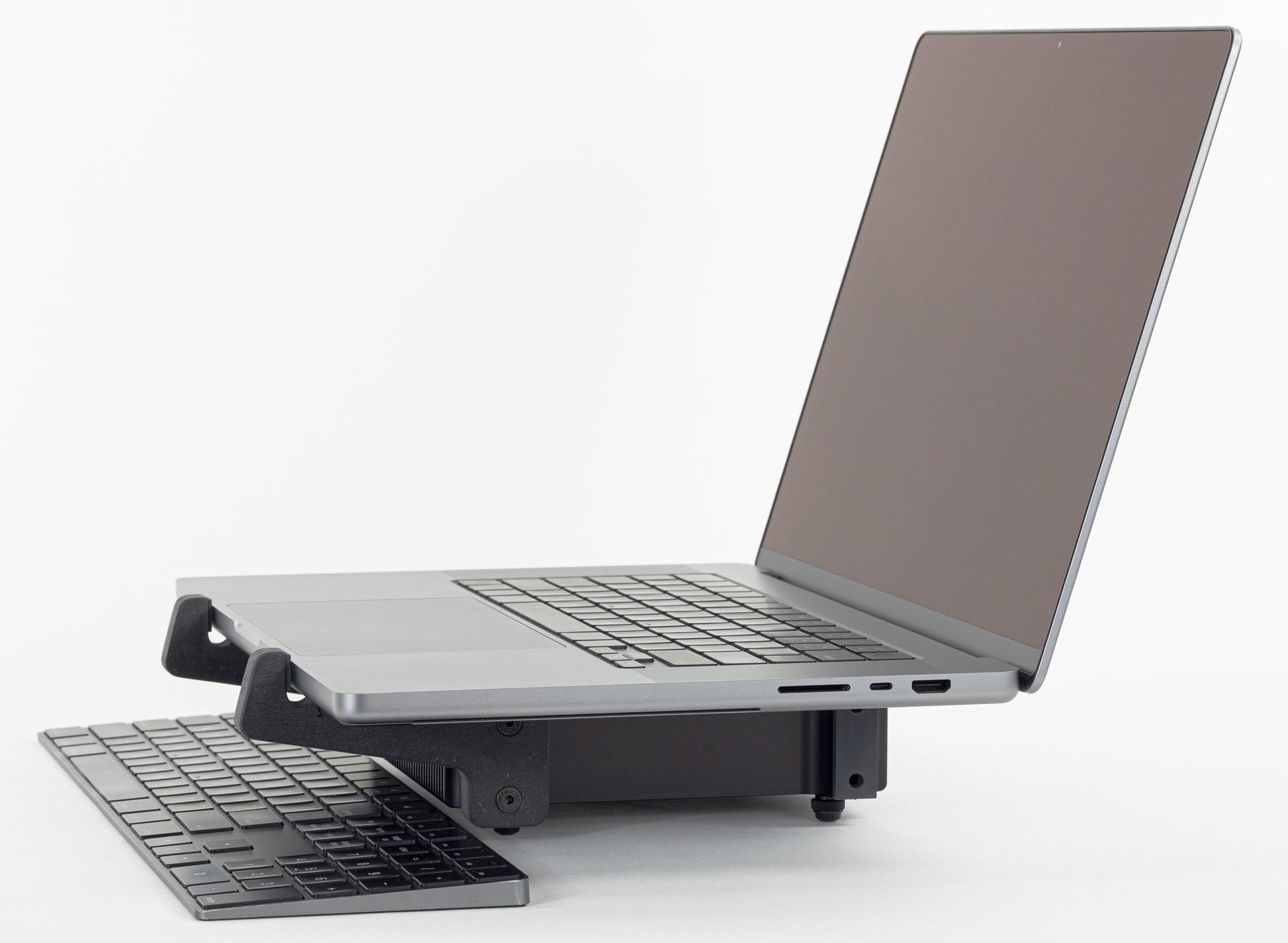

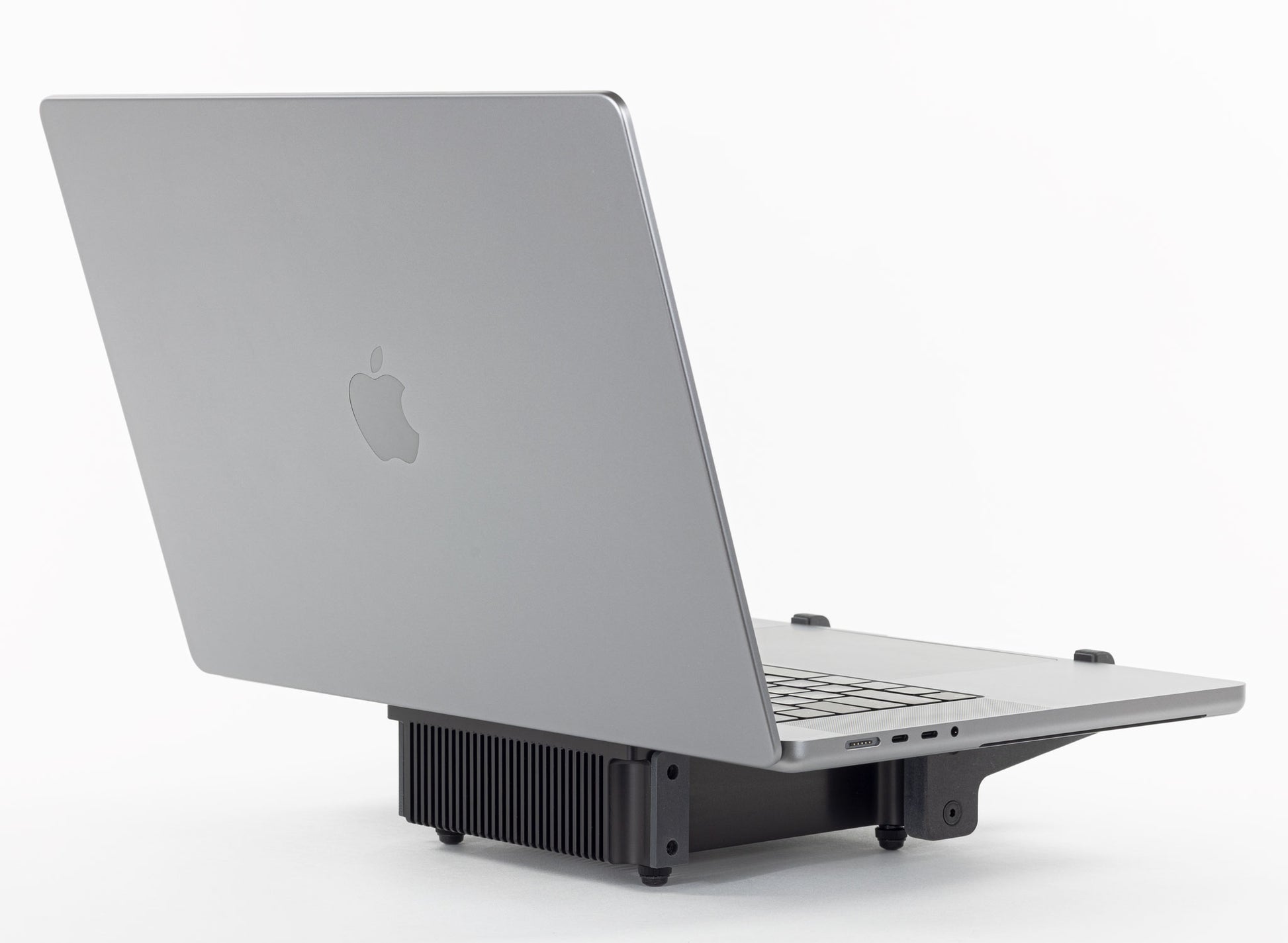

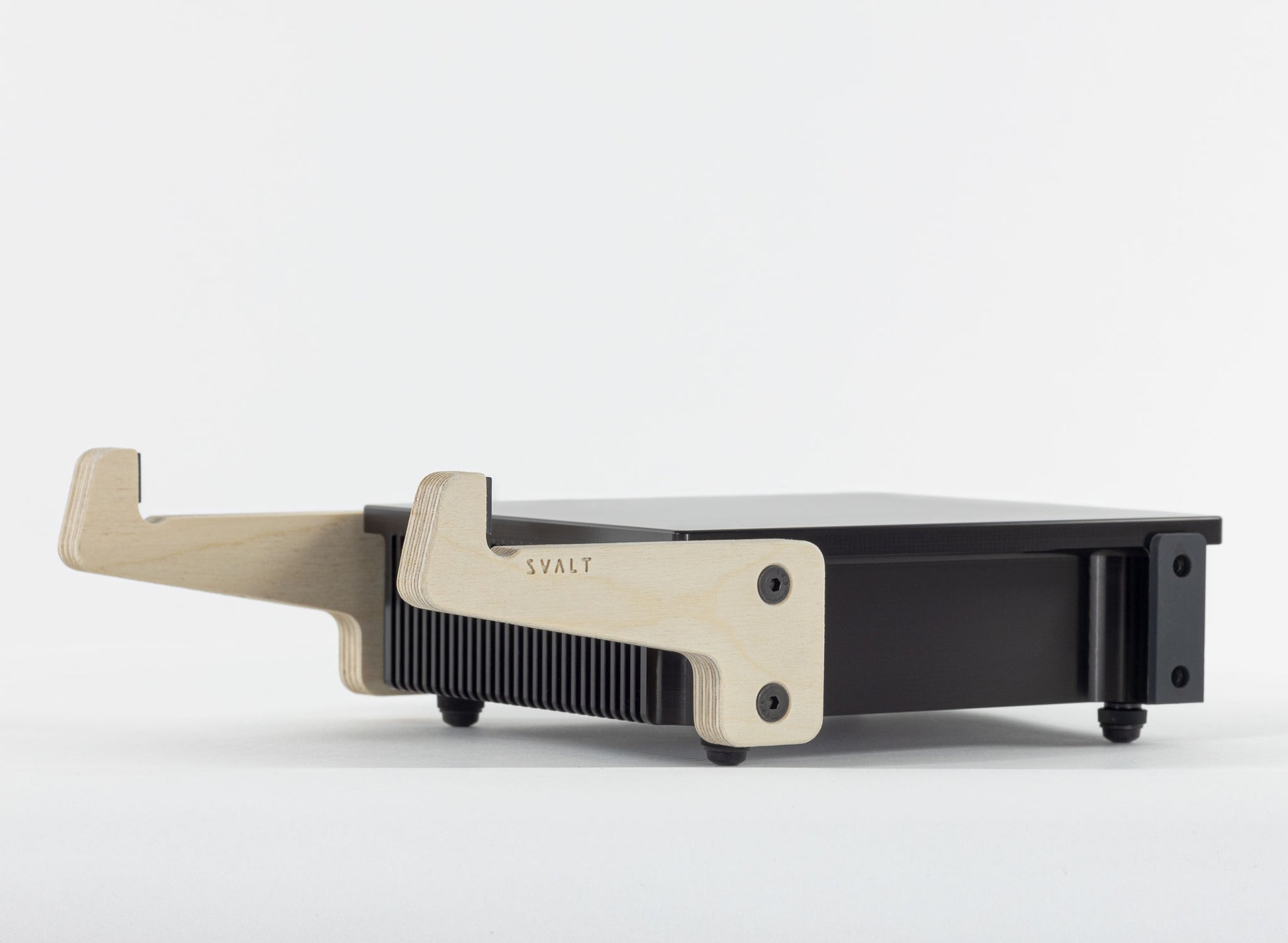

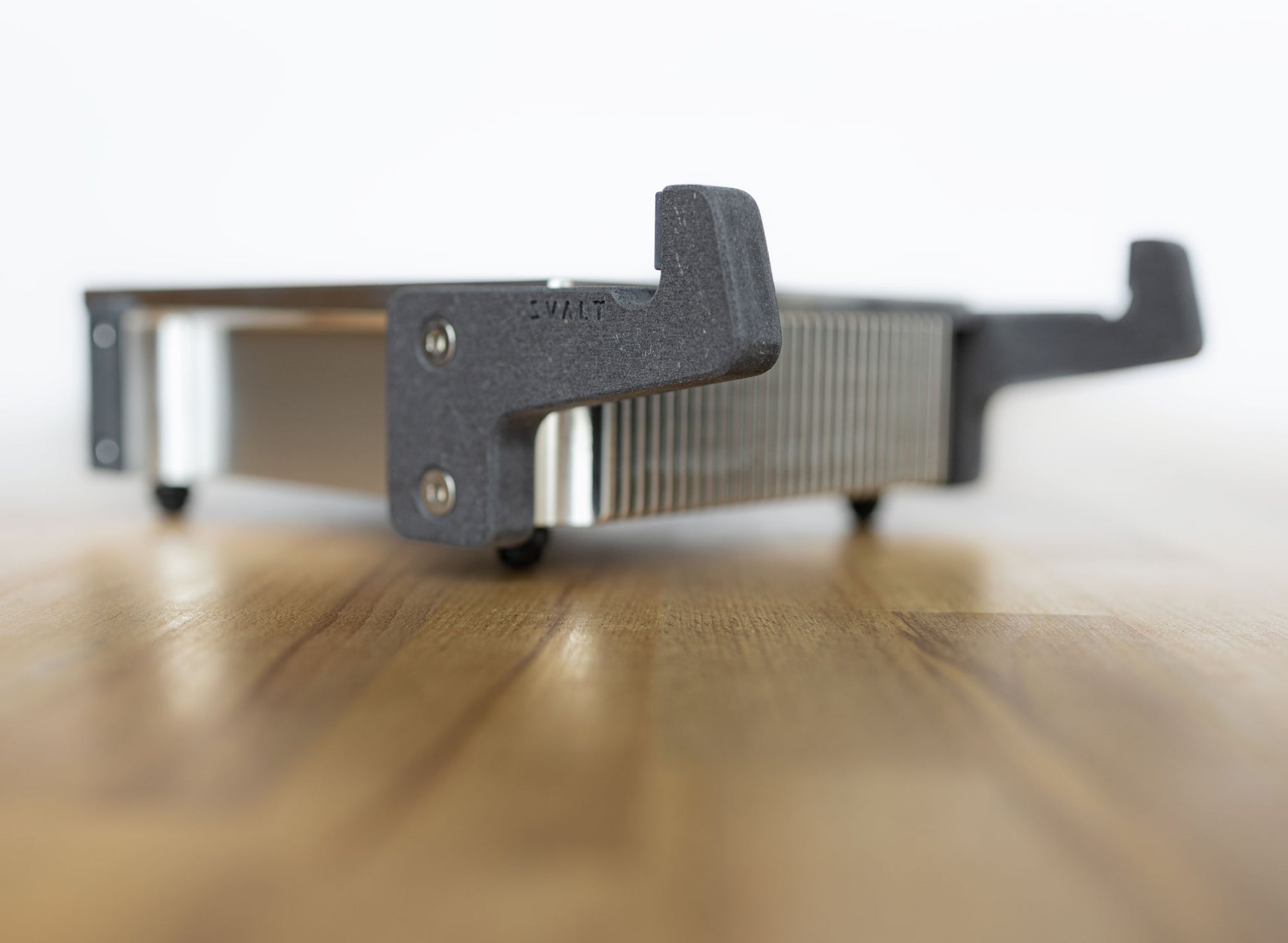

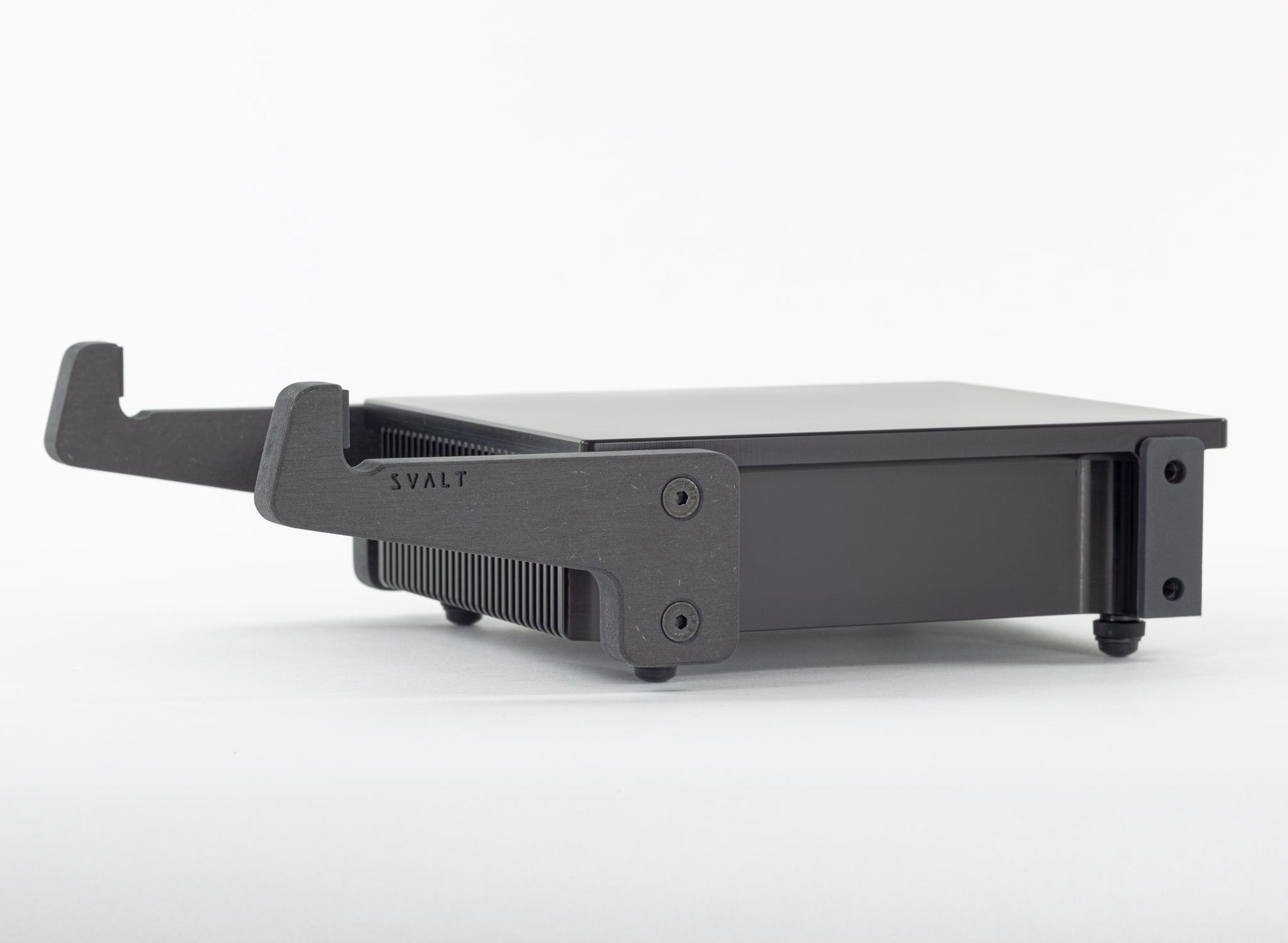

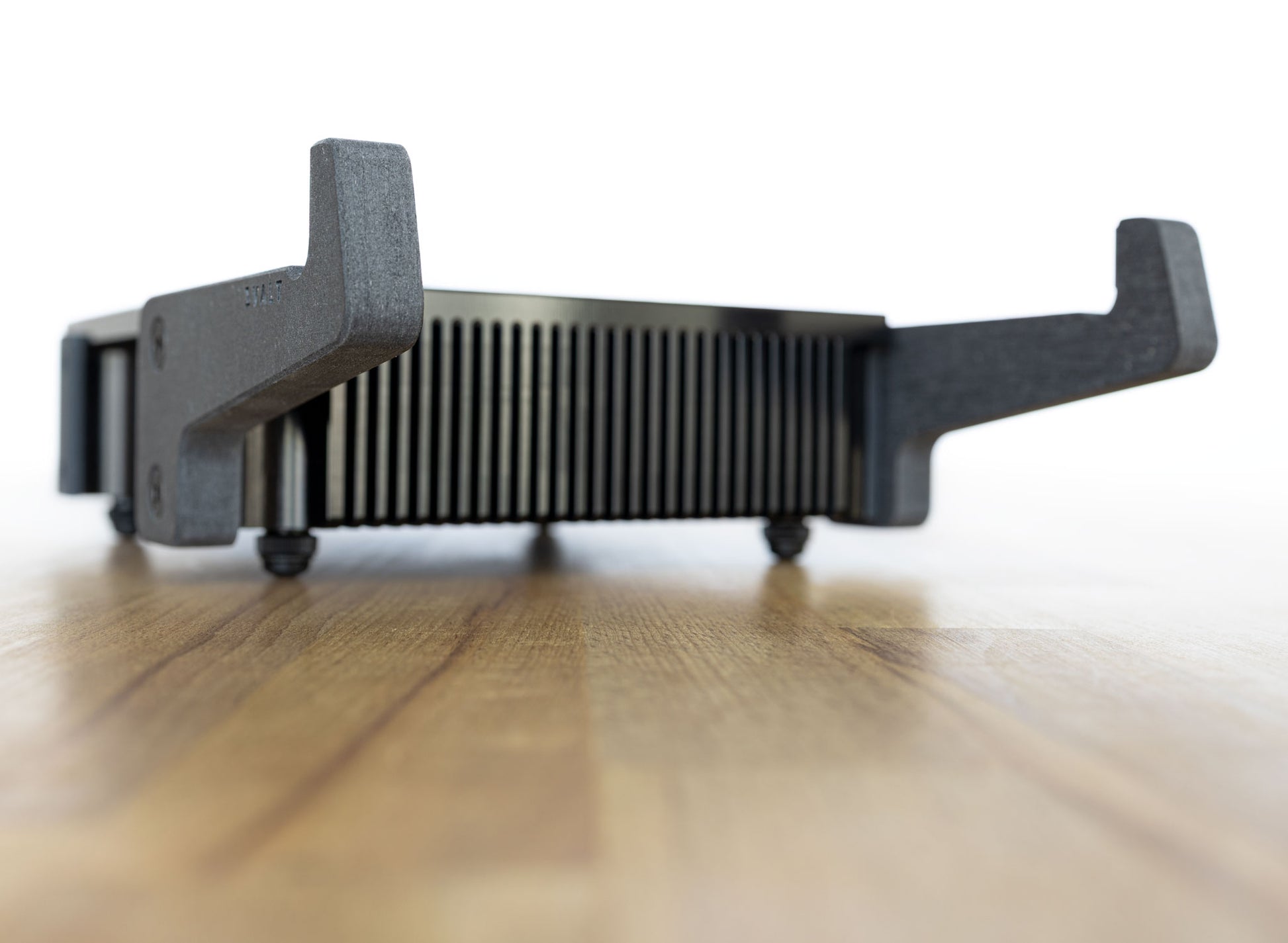

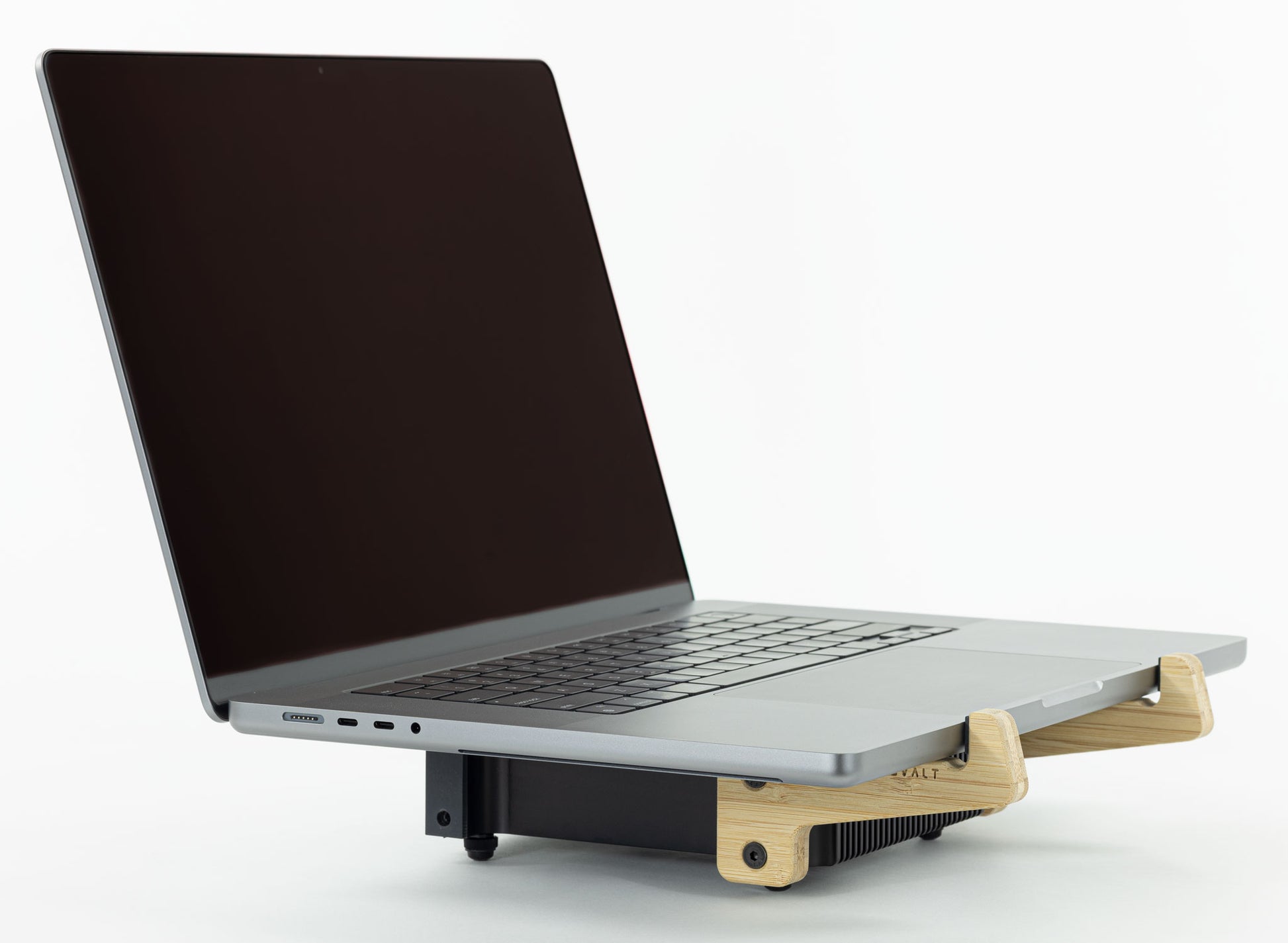

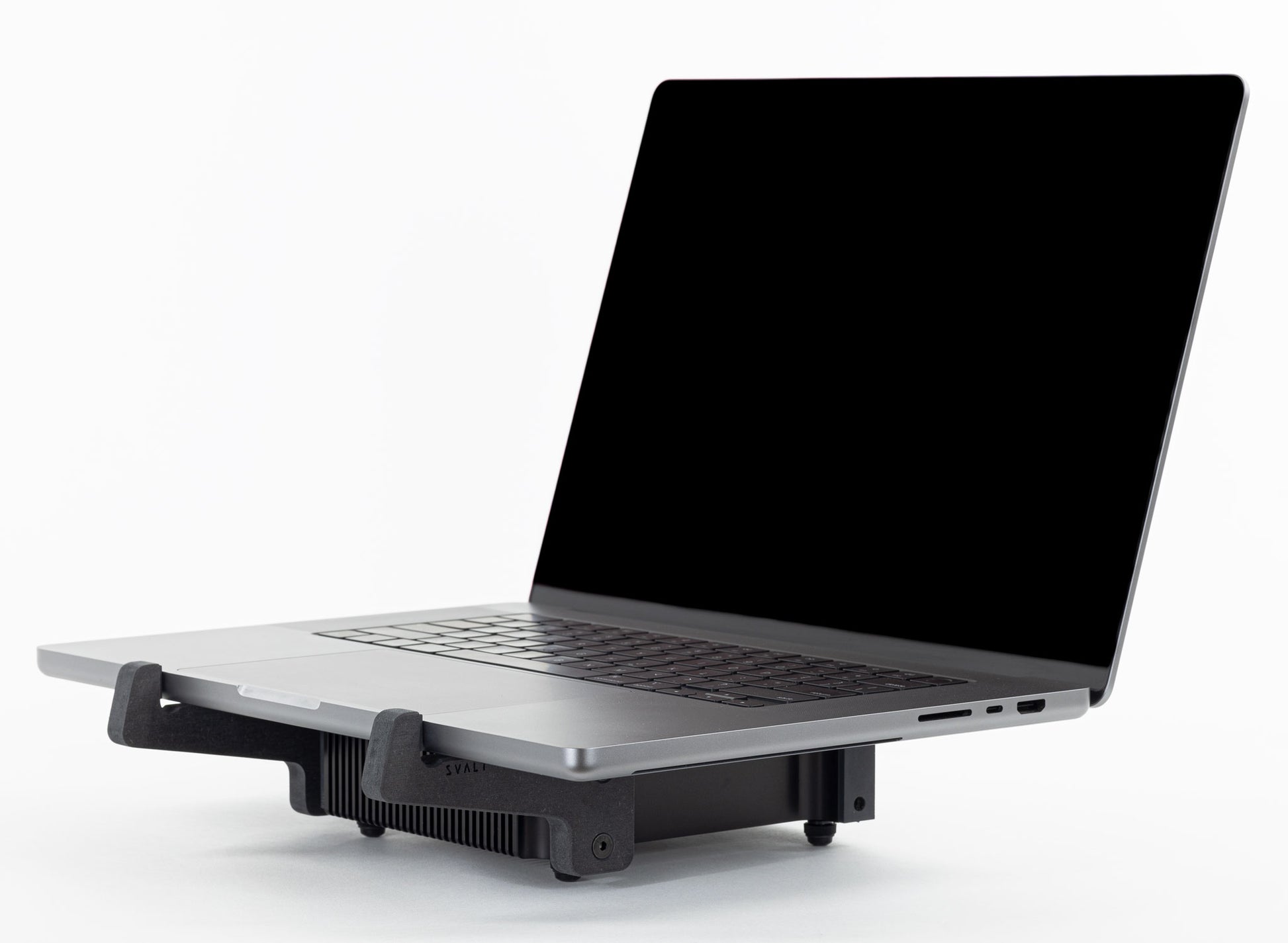

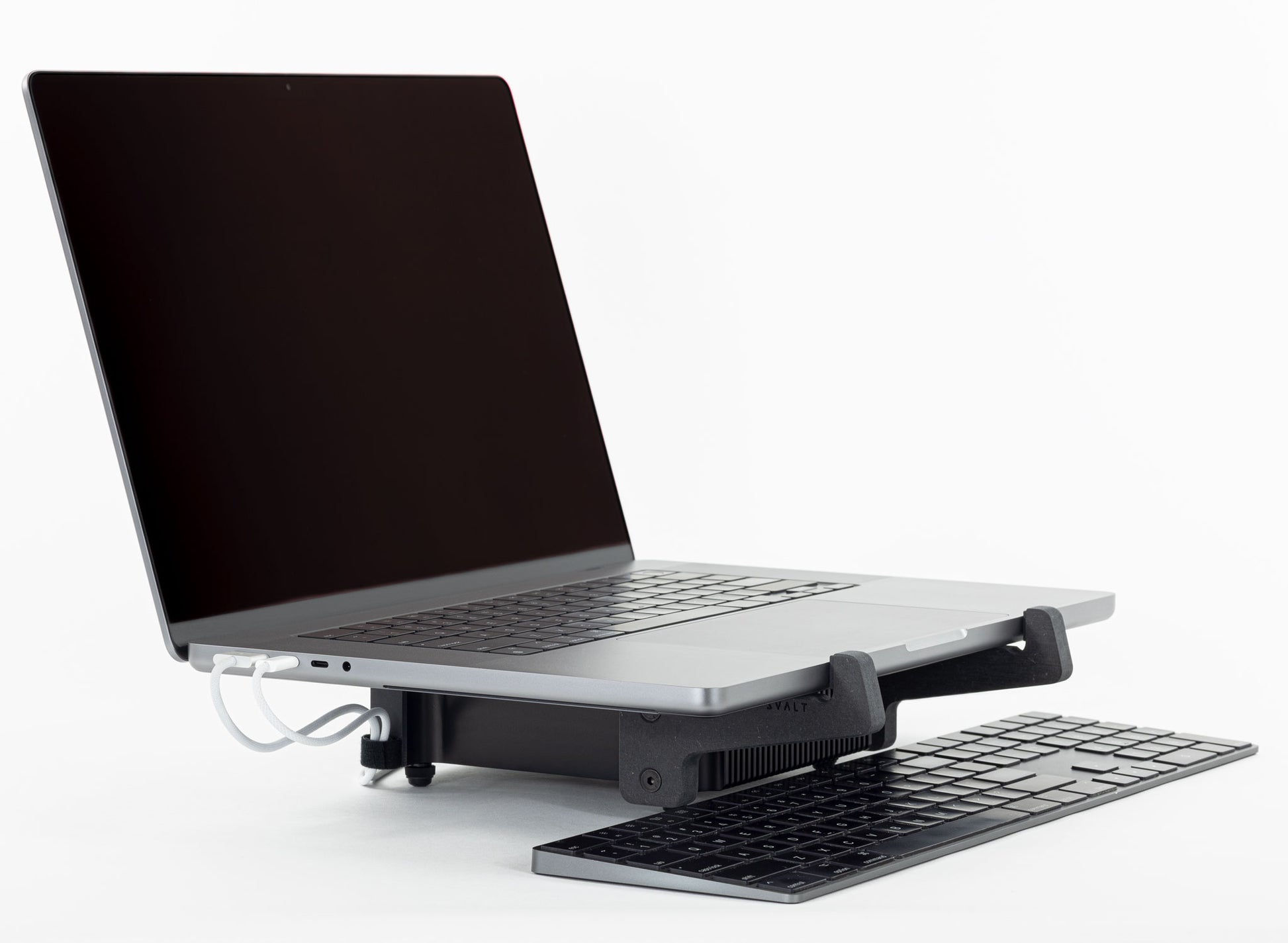

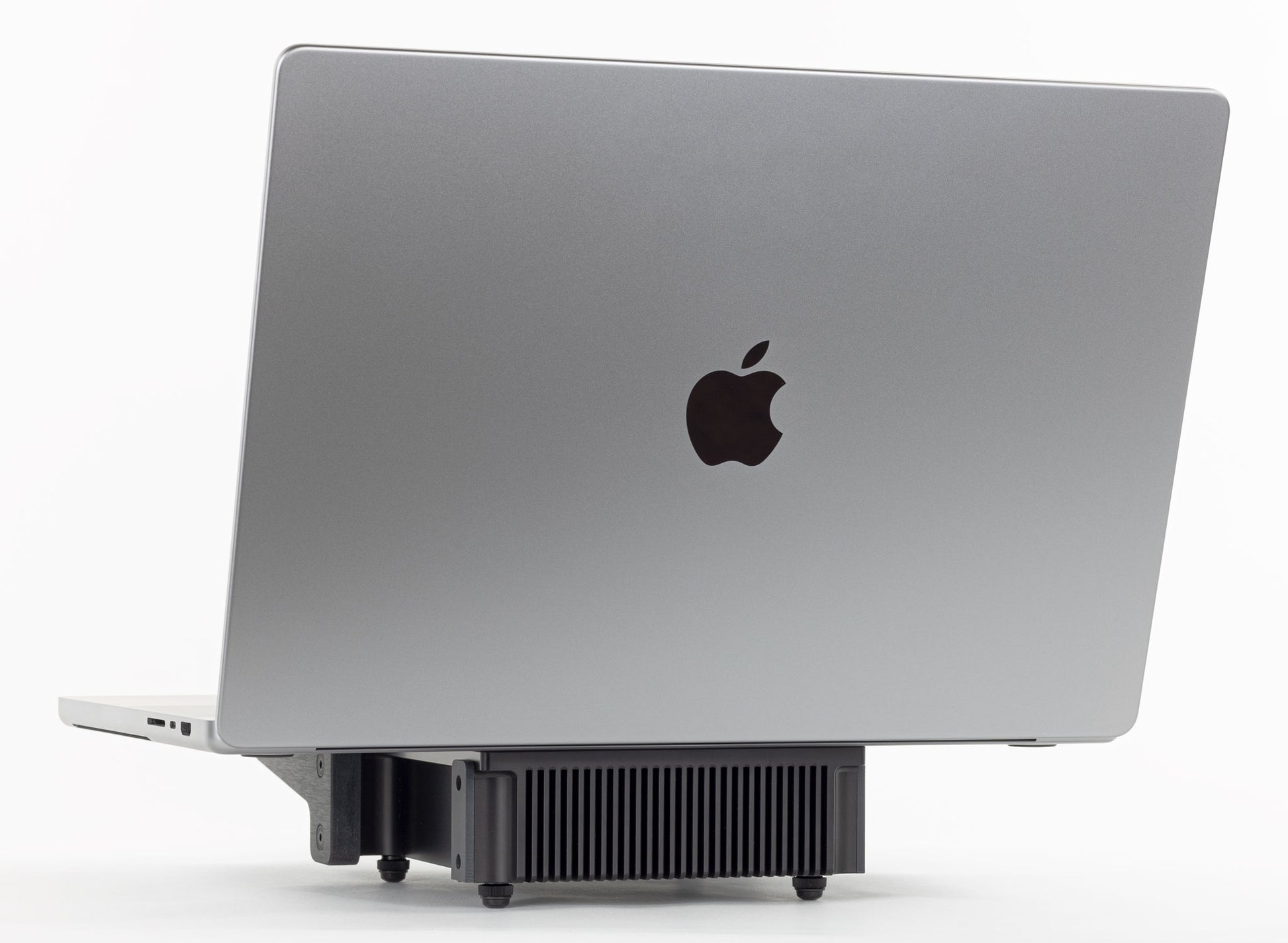

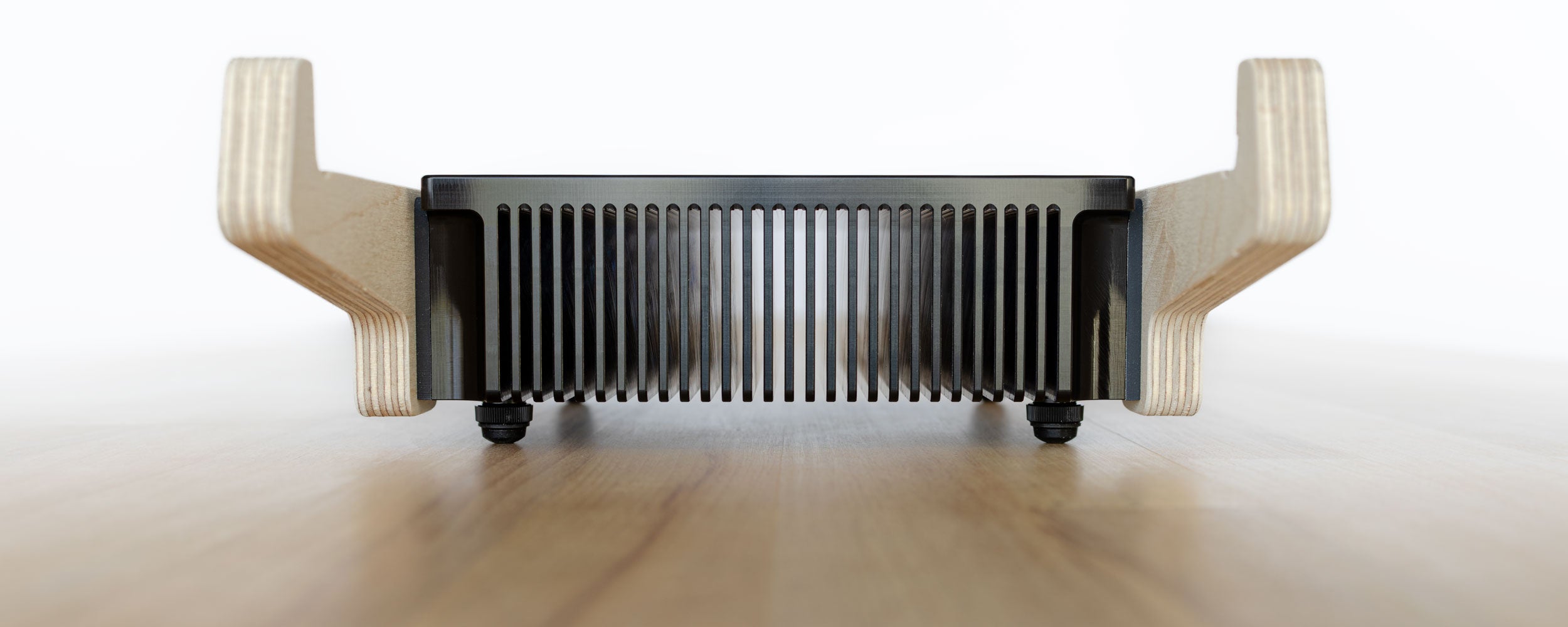

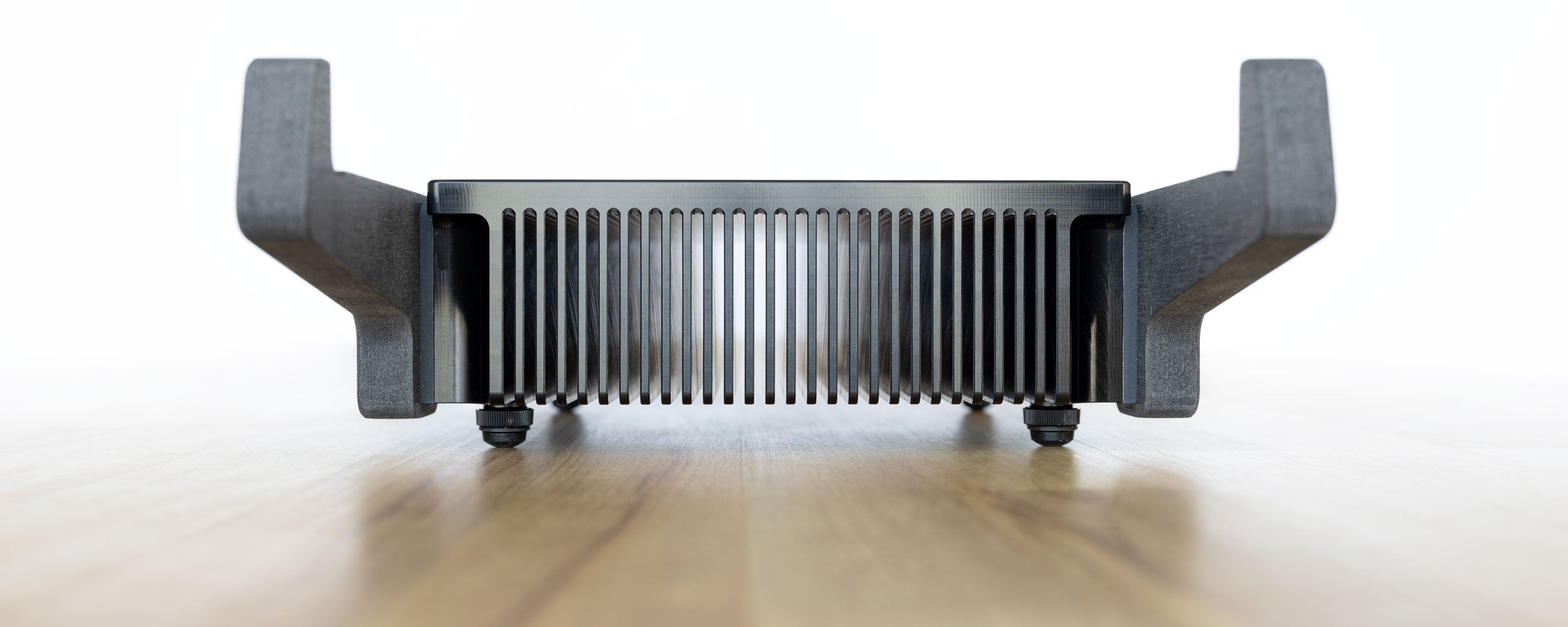

MxSW2-lo Cooling Stand
Mx Heatsink w/ Second Generation Wood Low Stand Supports

• Product Side to Side: 7.2 inches.
• Product Front to Back w/ Large Arms: 10.0 inches.

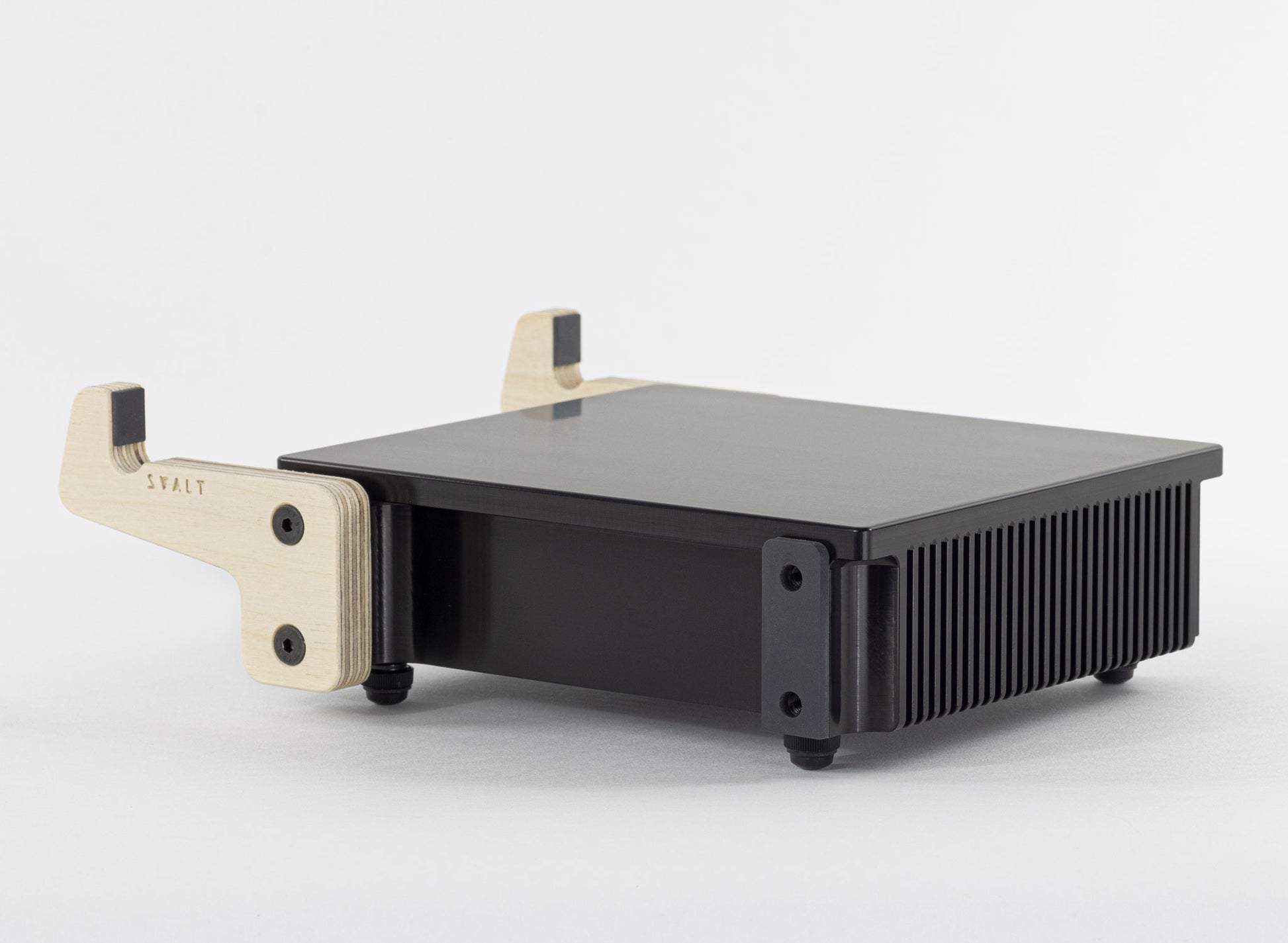

• Product Front to Back w/ Small Arms: 8.9 inches.
• Product Top to Bottom: 6.0 inches.
• Product Weight: ____ lbs, ____ lbs w/ 80mm fan.
• Shipping Weight: ____.

CONTENTS SPECIFICATIONS

Contents for All Configurations

1 x SVALT Thermally Conductive Heatsink for the Mx Modular Heatsink Cooling System. Available in raw aluminum or with a deep matte black anodize finish. Four side support mounting pads installed on heatsink.

2 x SVALT Second Generation Low Stand Wood Side Supports for the Mx Modular Heatsink Cooling System, also called Laptop Support Arms. A paired set of left and right sides. The arms come in two sizes, large and small. Large, small or both arms are included per selected order configuration. Black-core fiber, white hardwood or amber bamboo material. Non-slip pads installed on each side support. Note orders with both arm sizes include two pairs of left and right sides, and orders with support bundles include multiple sets of side supports.

4 x SVALT Replacement Pads for the Mx Wood Side Supports. Four 1/16” thick.

4 x #8-32 3/8-inch long knurled thumbscrew with hemisphere non-slip bumper pad that screw into the bottom of the heatsink as adjustable-height feet.

8 x #8-32 nuts for customers to thread onto the adjustable-height feet to change the minimum height adjustment. They can be added to only the back two feet in order to increase the laptop angle, or can be added to all of the feet to increase the overall height.

5 x #10-32 1-inch long flat head hex drive fasteners for attaching arm supports to the front of the heatsink. Configurations with black anodized heatsinks include black fasteners and configurations with raw aluminum heatsinks include stainless steel fasteners. (4 needed for installation plus 1 extra).

5 x #10-32 3/4 or 5/8-inch black long cap head hex drive fasteners for attaching cable management assembly to the back of the heatsink. Configurations with black anodized heatsinks include black fasteners and configurations with raw aluminum heatsinks include stainless steel fasteners. (4 needed for installation plus 1 extra).

3 x #10 washers for cable management assembly. Configurations with black anodized heatsinks include black fasteners and configurations with raw aluminum heatsinks include stainless steel fasteners. (1-2 needed for installation plus 1 extra).

3 x 3-inch long and 1/2-inch wide hook and loop strips with hole in center for cable management assembly (1-2 needed for installation plus 1 extra).

1 x 1/8-inch hex wrench/key for attaching side supports to heatsink, and right-to-repair disassembly.

1 x Cloth for cleaning heatsink and laptop coupling surfaces.

Additional Contents for All Fan Cooling Systems

1 x Power adapter cable with 3/4-pin fan connecter at one end and 2.1m barrel power supply connecter at the other end. On/off switch built into the adapter.

1 x Power supply. Orders for North American include a 100-240V AC input and 12V output power supply with fixed Type A (USA, Canada, Mexico, Japan) plug, while international orders include interchangeable plugs with Type A (USA, Canada, Mexico, Japan), Type C (Europe, South America, Asia), Type G (United Kingdom, Ireland), and Type I (Australia, New Zealand, China).

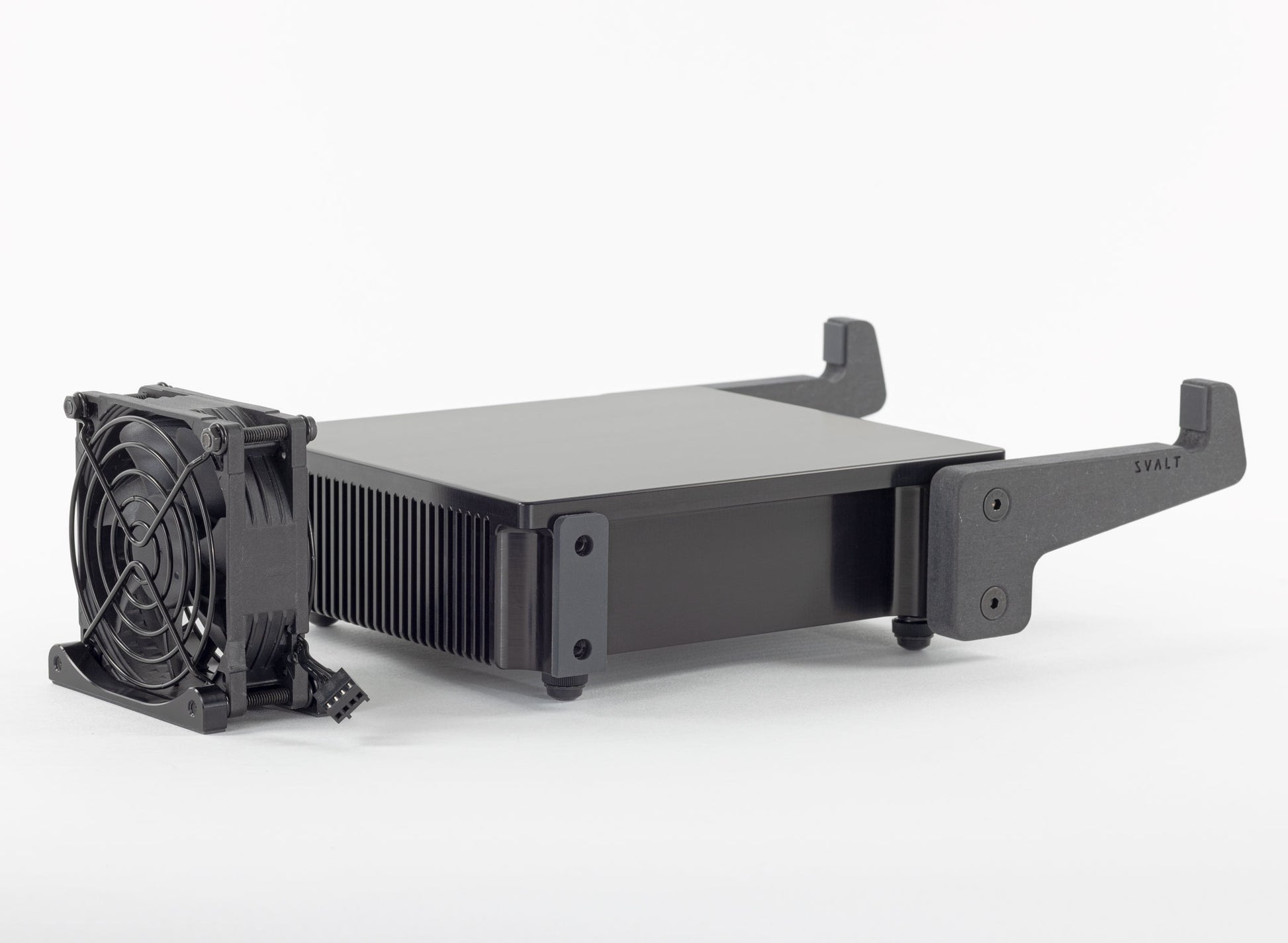

Additional Contents for 80mm Fx Fan Cooling Systems

2 x SVALT Fx Cooling Fan black anodized aluminum 80mm fan support feet with non-slip pads. Installed on Fx Cooling Fan.

1 x 80x80x25mm case fan per customer's selected order configuration. Installed on Fx Cooling Fan.

2 x 80mm black metal fan grill / guards. Installed on Fx Cooling Fan.

2 x #8-32 1 1/2-inch long black socket cap fasters. Installed on Fx Cooling Fan.

2 x #8-32 x 1 1/4-inch long black fasters. Installed on Fx Cooling Fan.

2 x #8 black nuts. Installed on Fx Cooling Fan.

1 x 9/64-inch hex wrench/key for right-to-repair Fx Cooling Fan disassembly.

Additional Contents for Adjustable-Speed Fan Cooling Systems

1 x Noctua NA-FC1 PWM dial-variable speed-controller.

1 x Noctua fan extension cable.

1 x Noctua fan 3-way splitter cable for dual 140mm and 80mm adjustable-speed configurations.

1 x Noctua fan power supply adapter for optional customer DIY setups.

Packaging System Contents for All Configurations

2 x SVALT folded cardboard packaging insert bolted onto each side of heatsink.

8 x heatsink packaging fasteners.

8 x heatsink packaging oversized washers.

2 x SVALT accessories boxes for heatsink, supports, and fan cooling system accessories.

1 or more x layers of hex cardboard for top/bottom layer cushioning and void fill.

1 x cardboard box that serves as both the shipping and product box.

Notes

Assembly: Assembly required. Follow packaging labels and see Product Setup page for product setup, operation and additional user guide resources.

Discounted Support Bundles: A bundle discount is automatically applied to the shopping cart when you add any one of the Mx products along with any one of the Mx supports from the Mx Components page. The bundle discount can apply to up to three extra sets of supports. Having one or more extra set of supports provides customers with a variety of laptop workstation setups.

FANS SPECIFICATIONS

80mm Fans
The 80mm fan and fan hardware ship assembled into the separate Fx Cooling Fan accessory. The 80mm fan cooling systems are available with the following high-end fan kits to provide the best fan quality and performance:


80mm fixed-speed red fan R17(8)
The R17(8) fan from SilenX offers a good balance between cooling and noise performance.

• SilenX specifications: SilenX EFX-08-15. 80x80x25mm, 3-pin long connector cord. 12-volt, 7 red blades. black frame. fluid dynamic bearing. 1700 RPM speed. 31.8 CFM airflow. 2.42 mm H2O static pressure. 16.8 dBA noise. See SilenX website for details.

80mm adjustable-speed black fan B22(8)
The B22(8) fan from Noctua covers the full range of ultra-quiet to hi-airflow cooling performance.

• Noctua specifications: Noctua NF-A14 PWM chromax.black.swap. 80x80x25mm, PWM 4-pin short connector with extension cord. 12-volt. 7 black blades and frame. 450 to 2200 RPM speed range. 32.7 CFM / 55.5 m3h airflow. 2.37 mm H2O static pressure. 0 noise when stopped and up to 17.7 dBA noise when set to maximum speed. See Noctua website for details.
• Noctua features: Award-winning NF-A8 design. chromax.black.swap edition. Flow Acceleration Channels. AAO frame. Stepped Inlet Design. Inner Surface Microstructures. SSO2 Bearing. Custom-designed PWM IC with SCD. Stops at 0% PWM. See Noctua website for details.
• Includes a Noctua NA-FC1 PWM dial variable-speed controller and accessories. Noctua specs: 36W max power. 5~12V volt range. 3A max current. Noctua features: PWM based control. Customizing motherboard fan control. Manual control mode. “No stop” mode. See Noctua website for details.

MATERIALS SPECIFICATIONS

WOOD MATERIAL

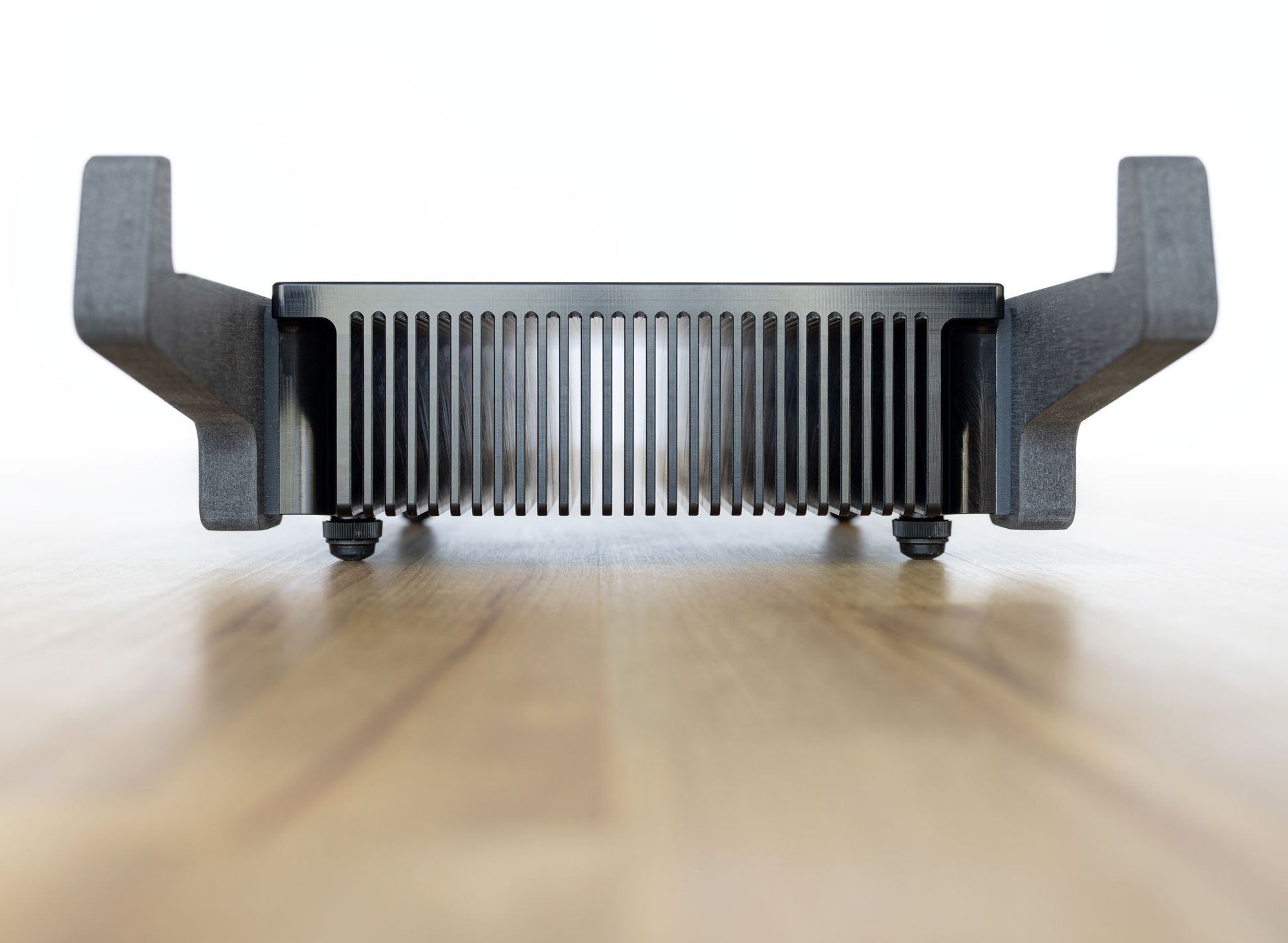

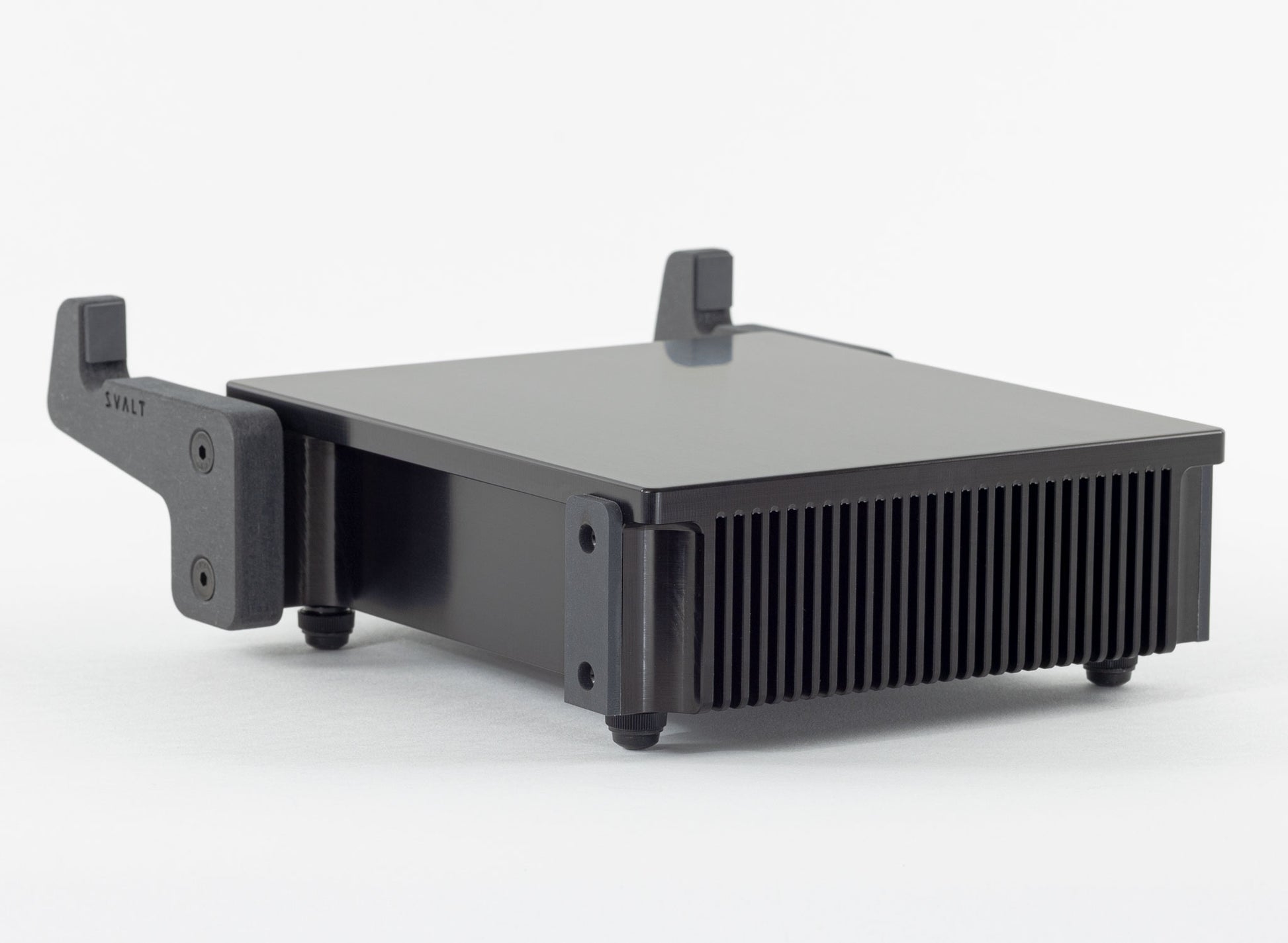

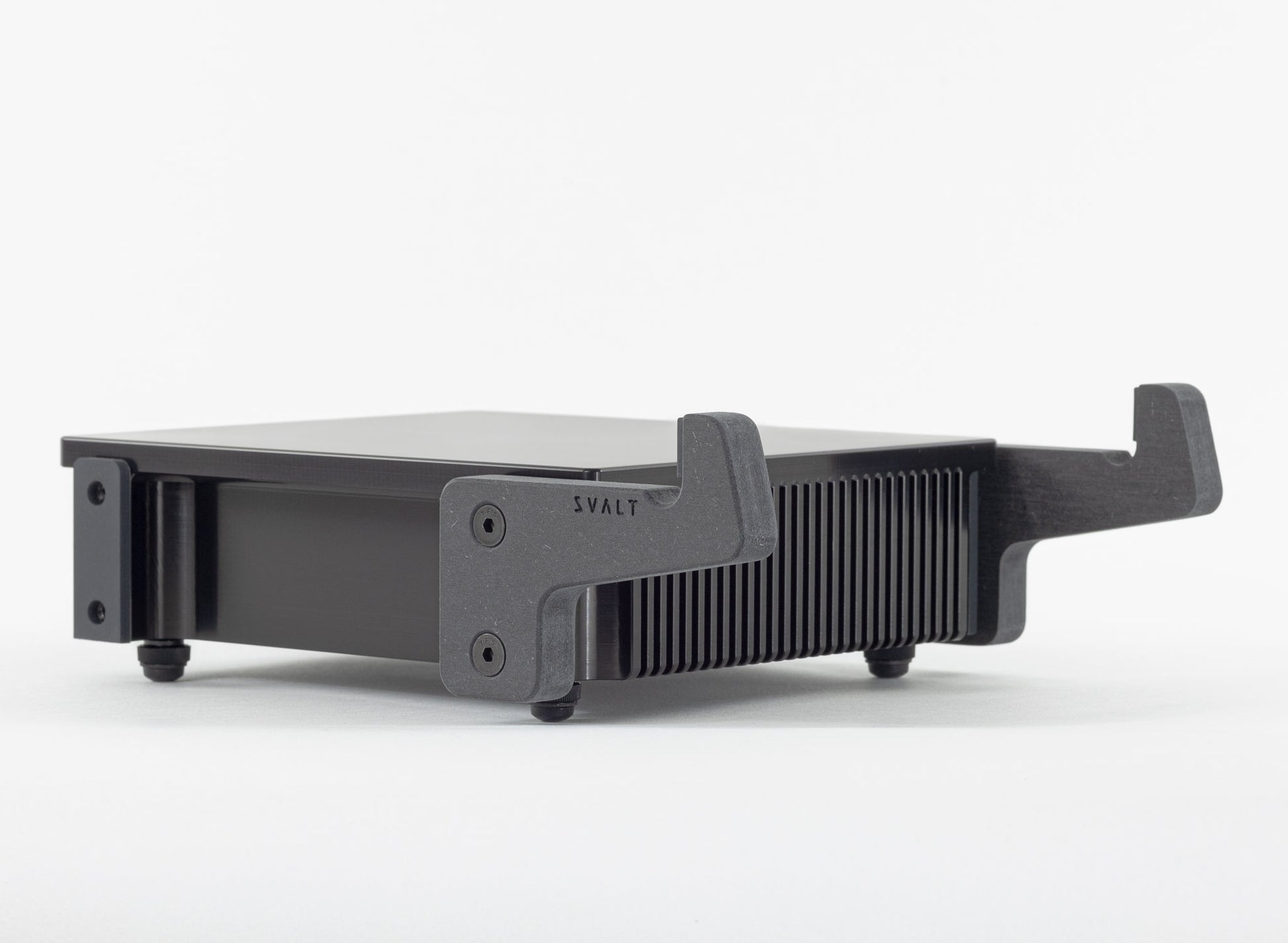

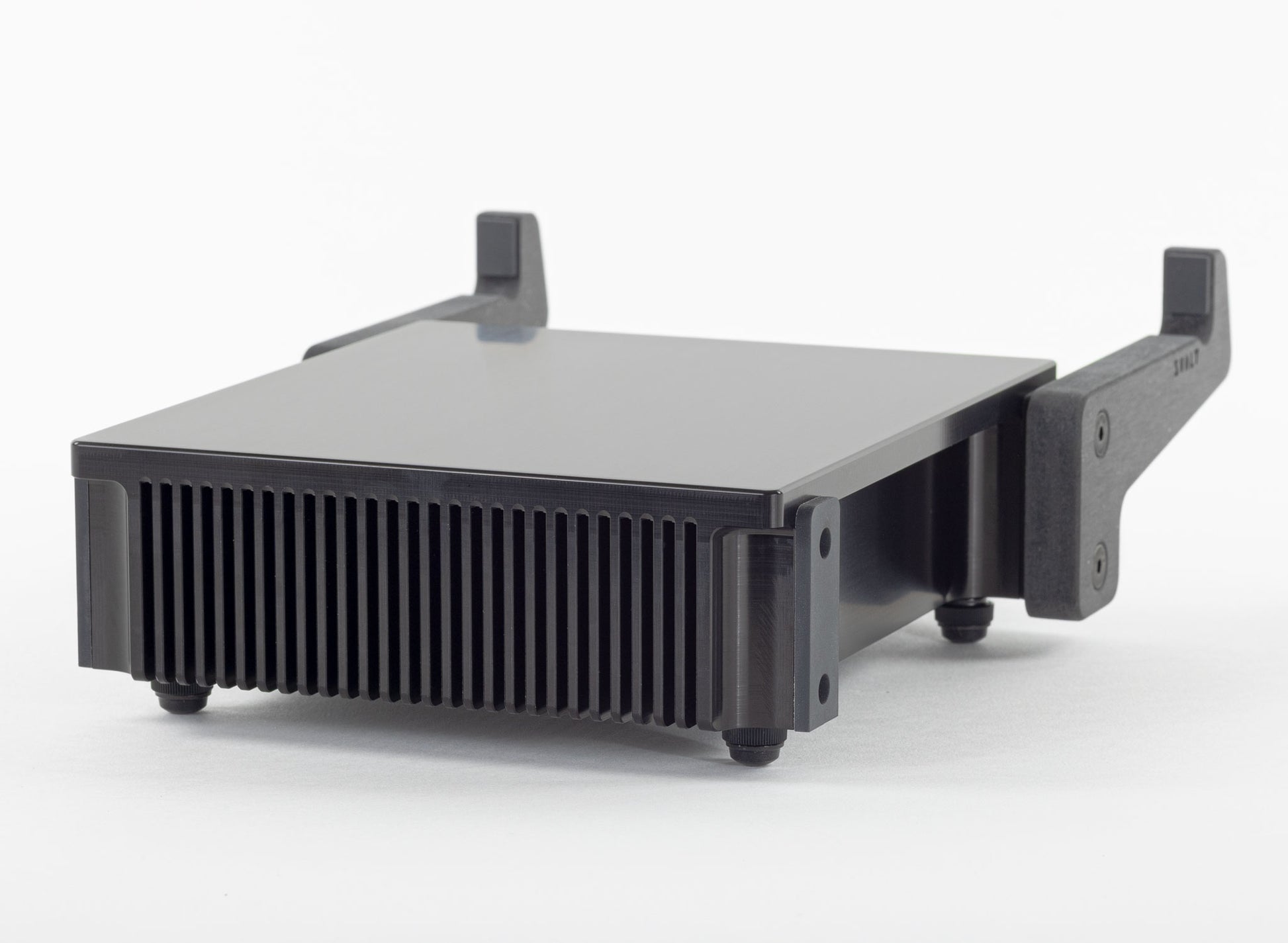

Black-core Fiber
Made from 89% renewable, 100% recovered (reduce waste and emissions), low-formaldehyde (no added formaldehyde), moisture-resistant, high-density wood fiber material. The material has a through-core solid-black color with a hard, fine and smoothly sanded face surface that has a charcoal black appearance with light color fiber flecks.

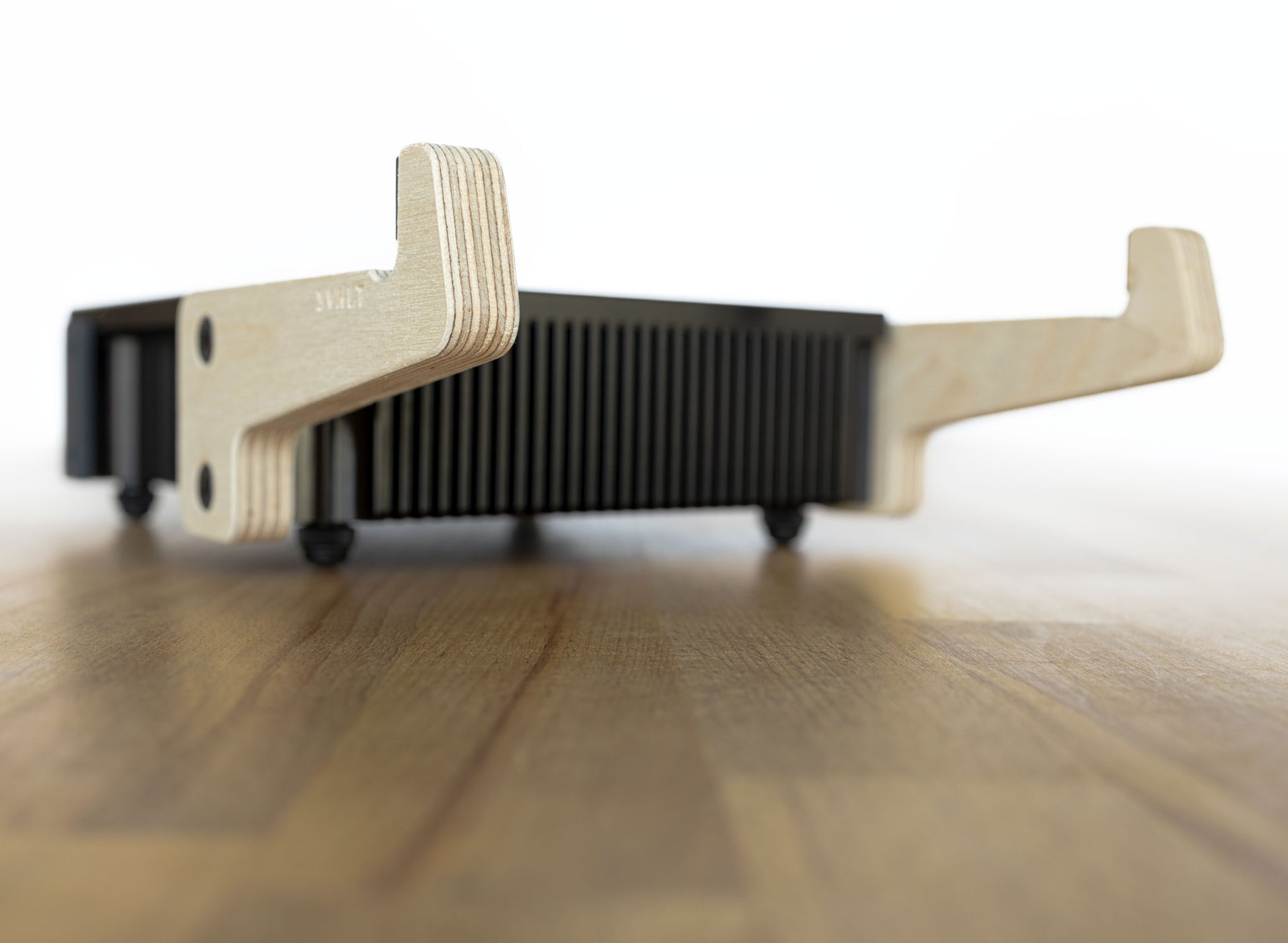

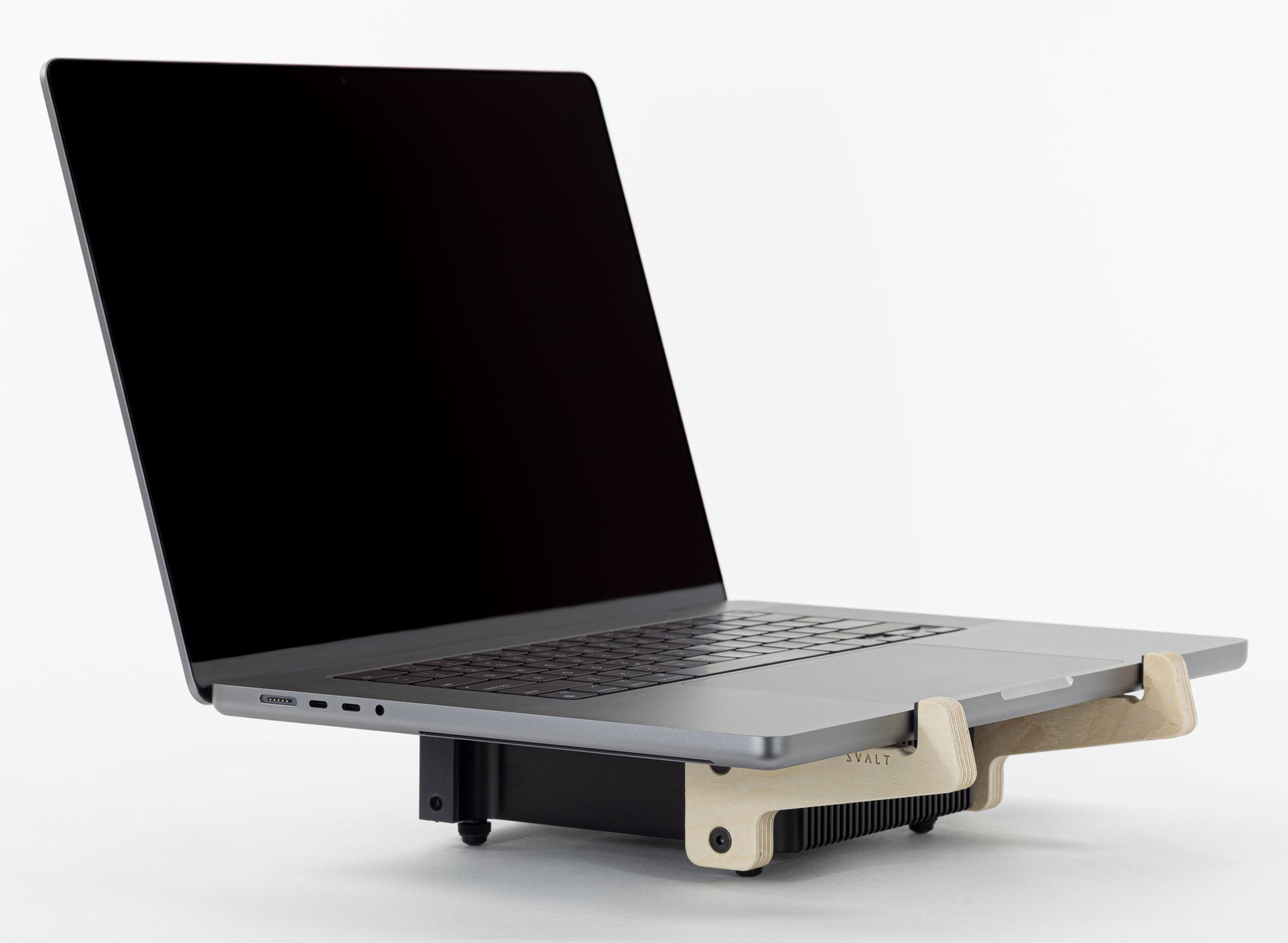

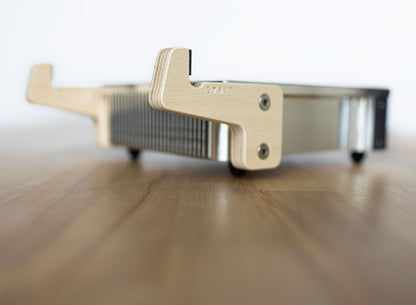

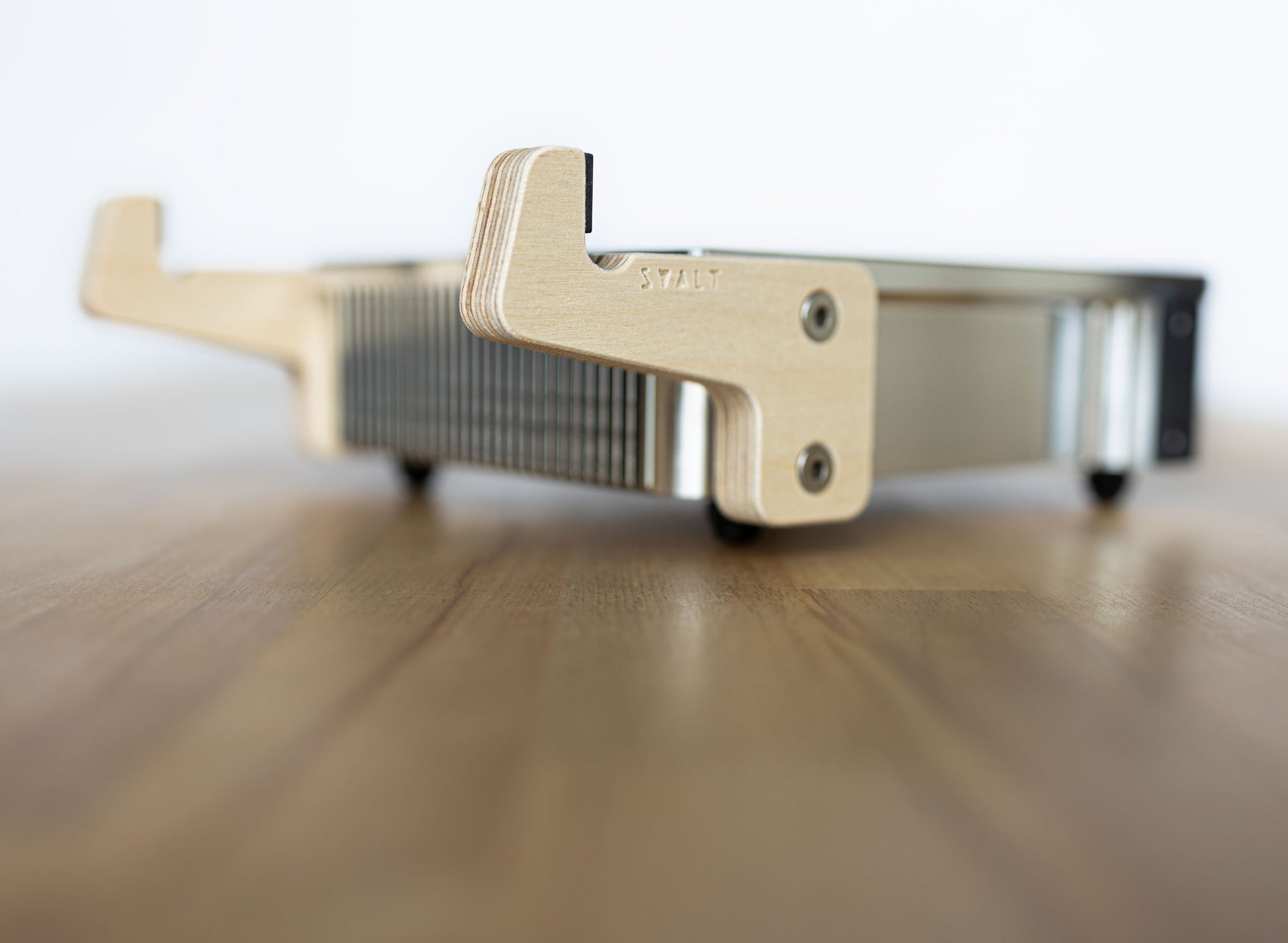

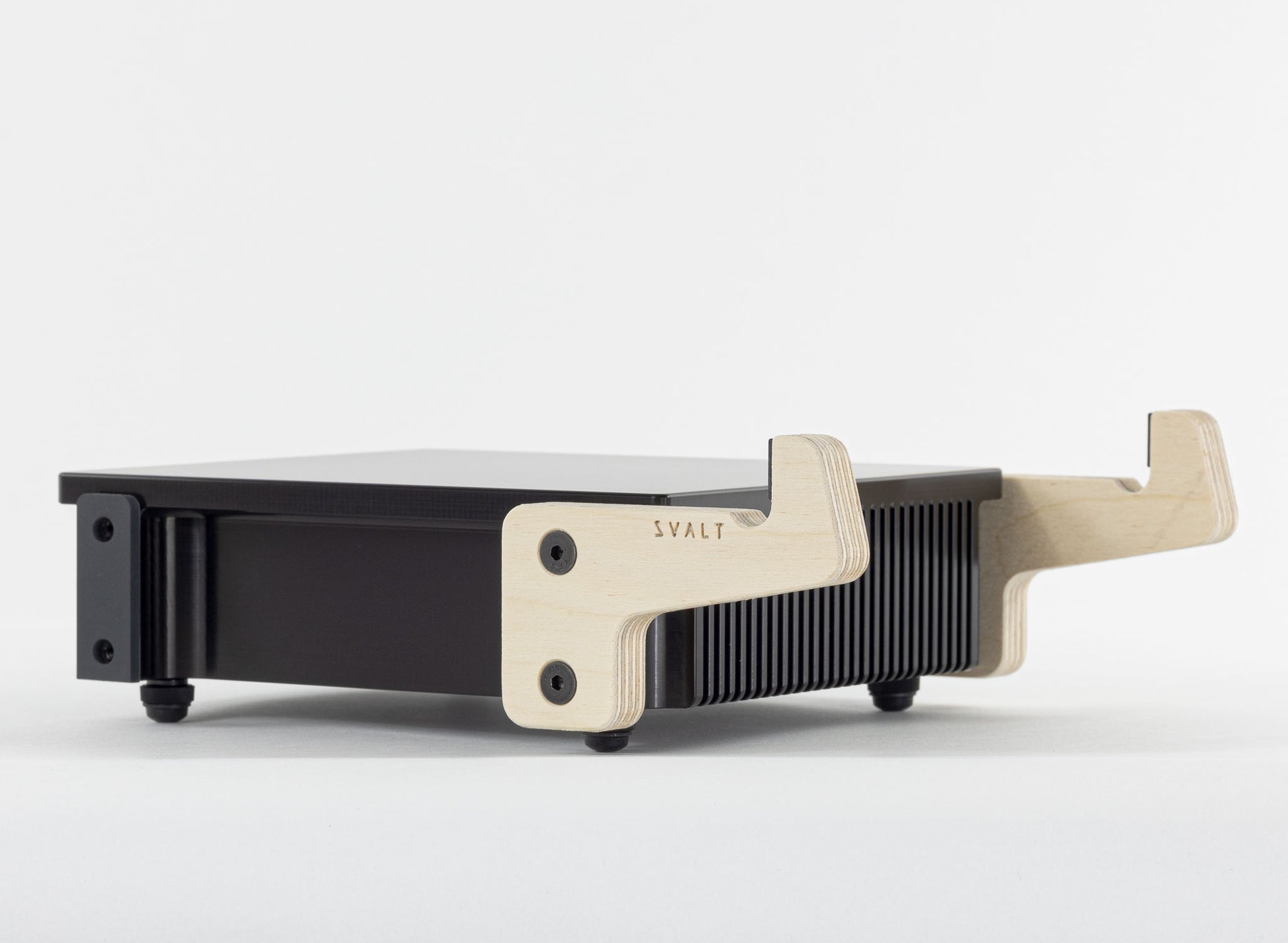

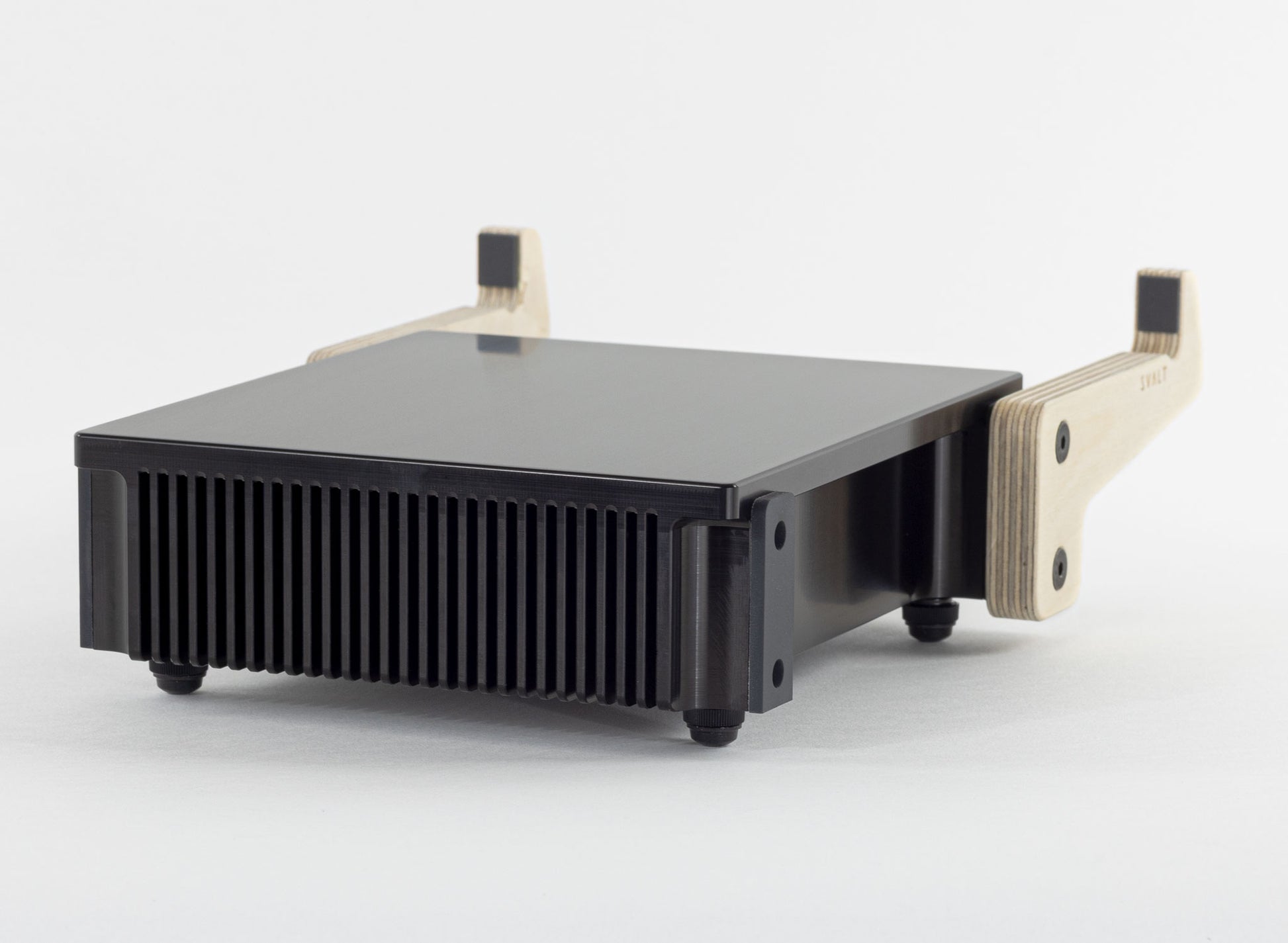

White Hardwood
Made from 9 layers of high-quality baltic birch hardwood veneers to create a solid void-free multi-ply core with formaldehyde-free binder. The baltic birch has a creamy or pale white/beige hue with mostly clear, uniform and light wood grain. The top face has a finely sanded surface without knots or plugs, and the milled edge has alternating light and dark stripes created by the dense, multi-ply construction.

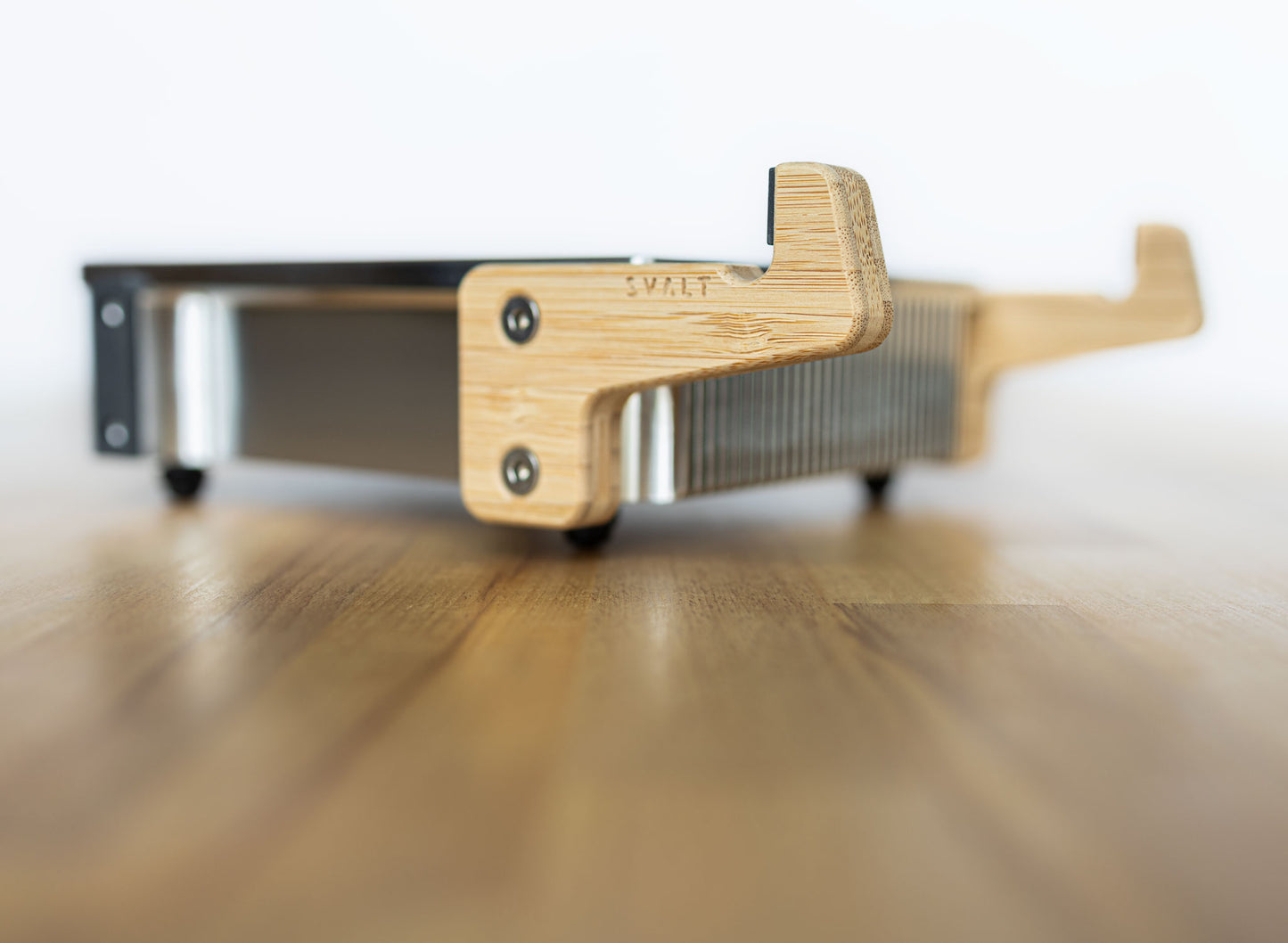

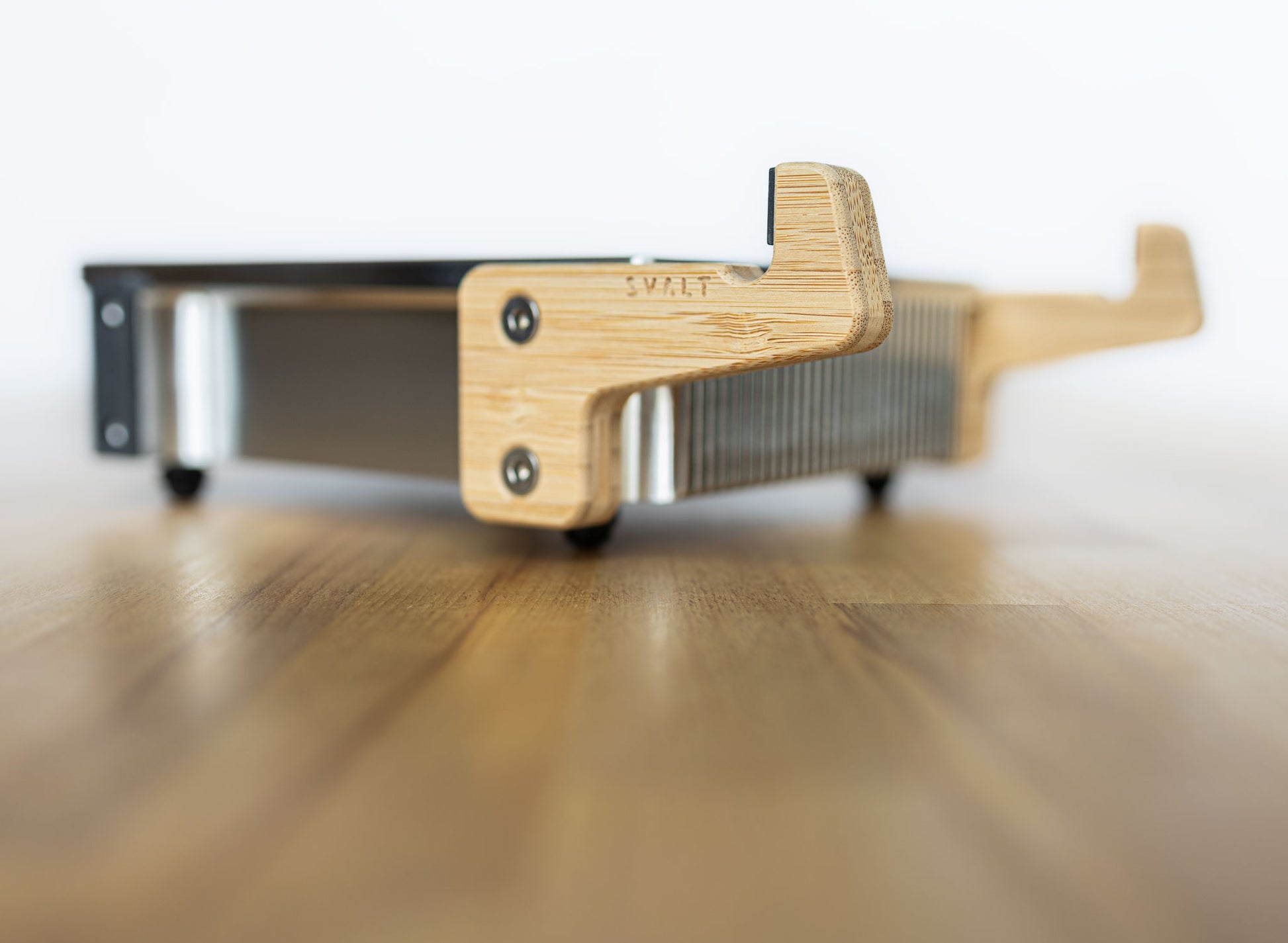

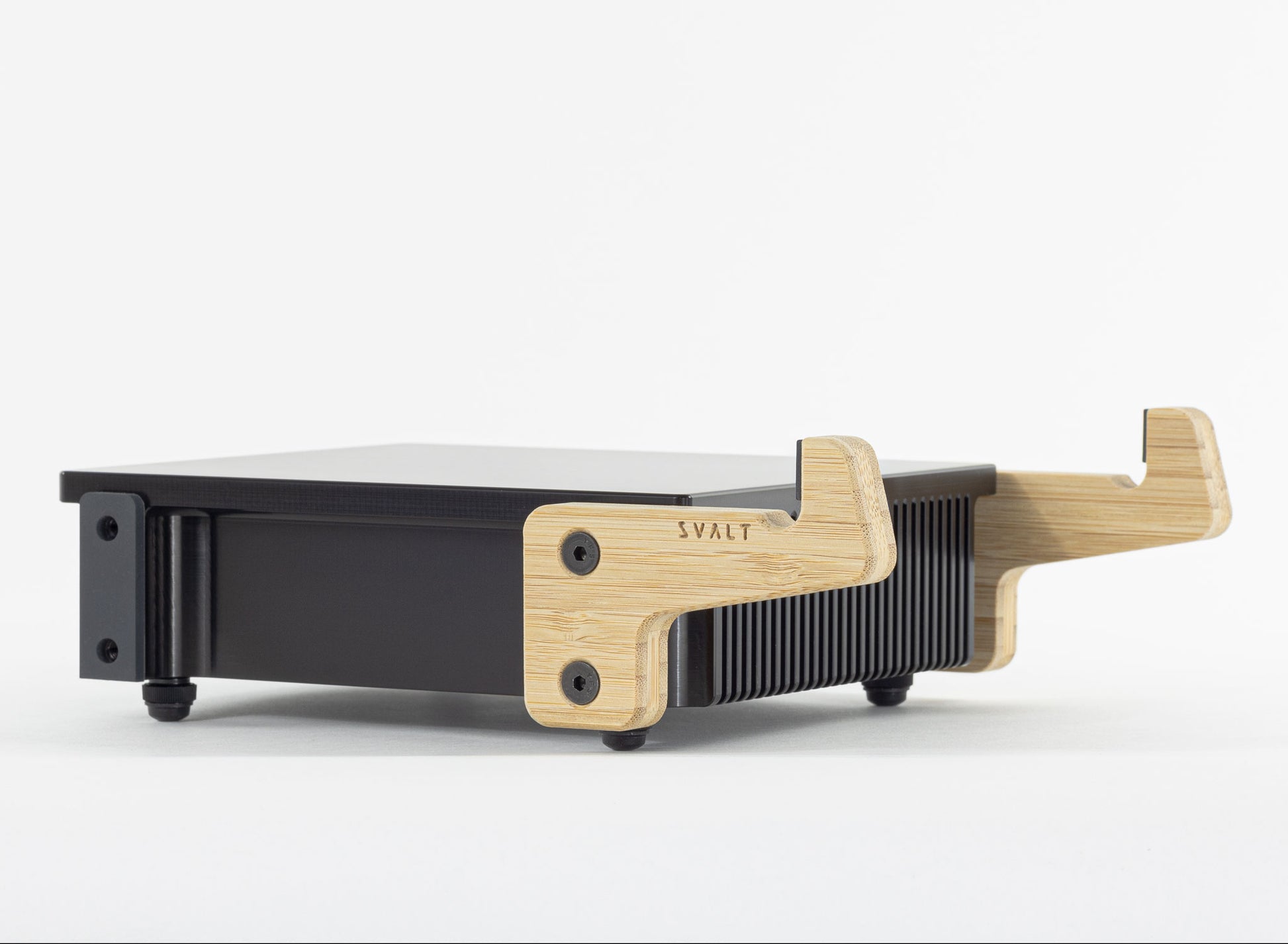

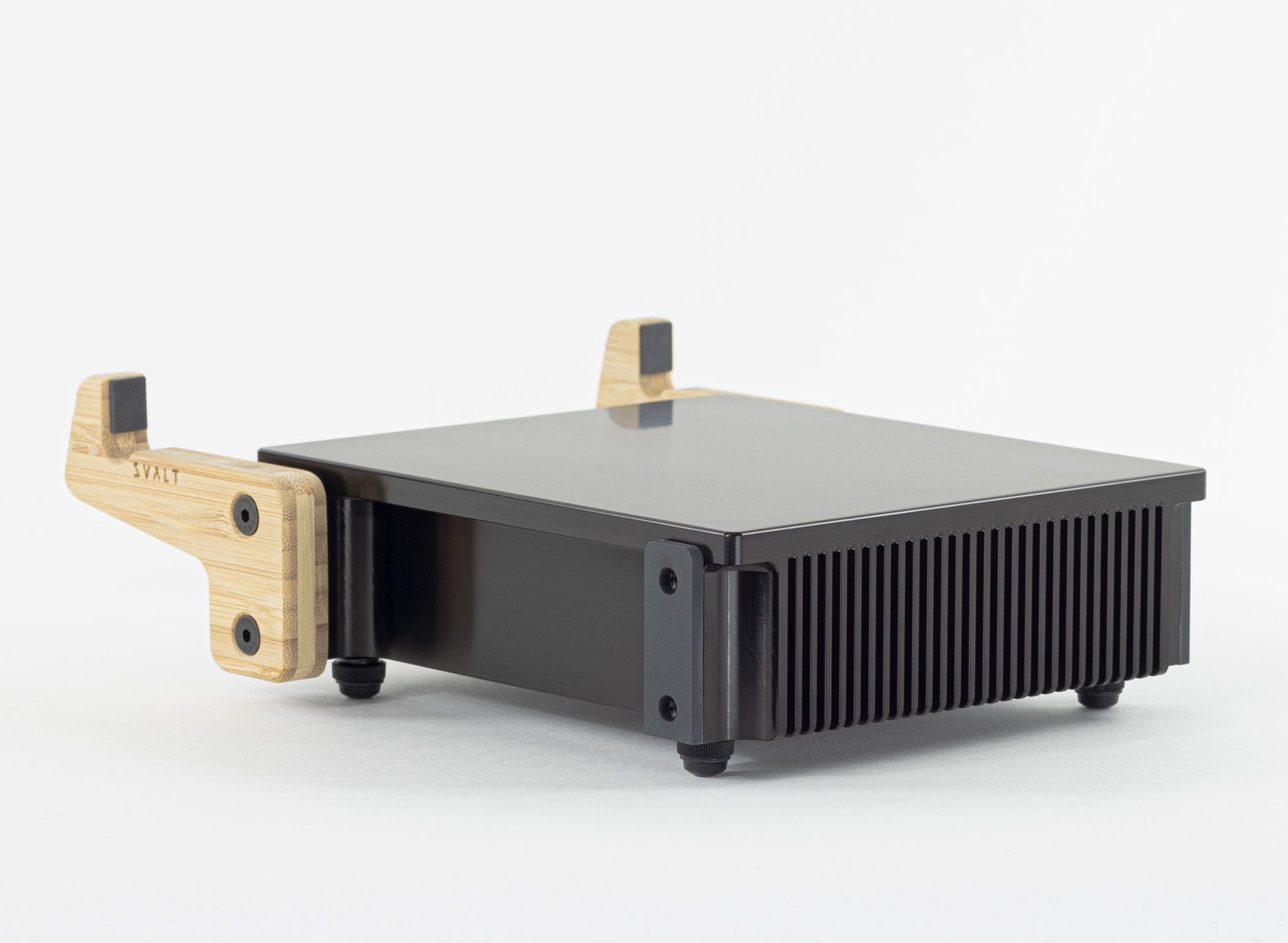

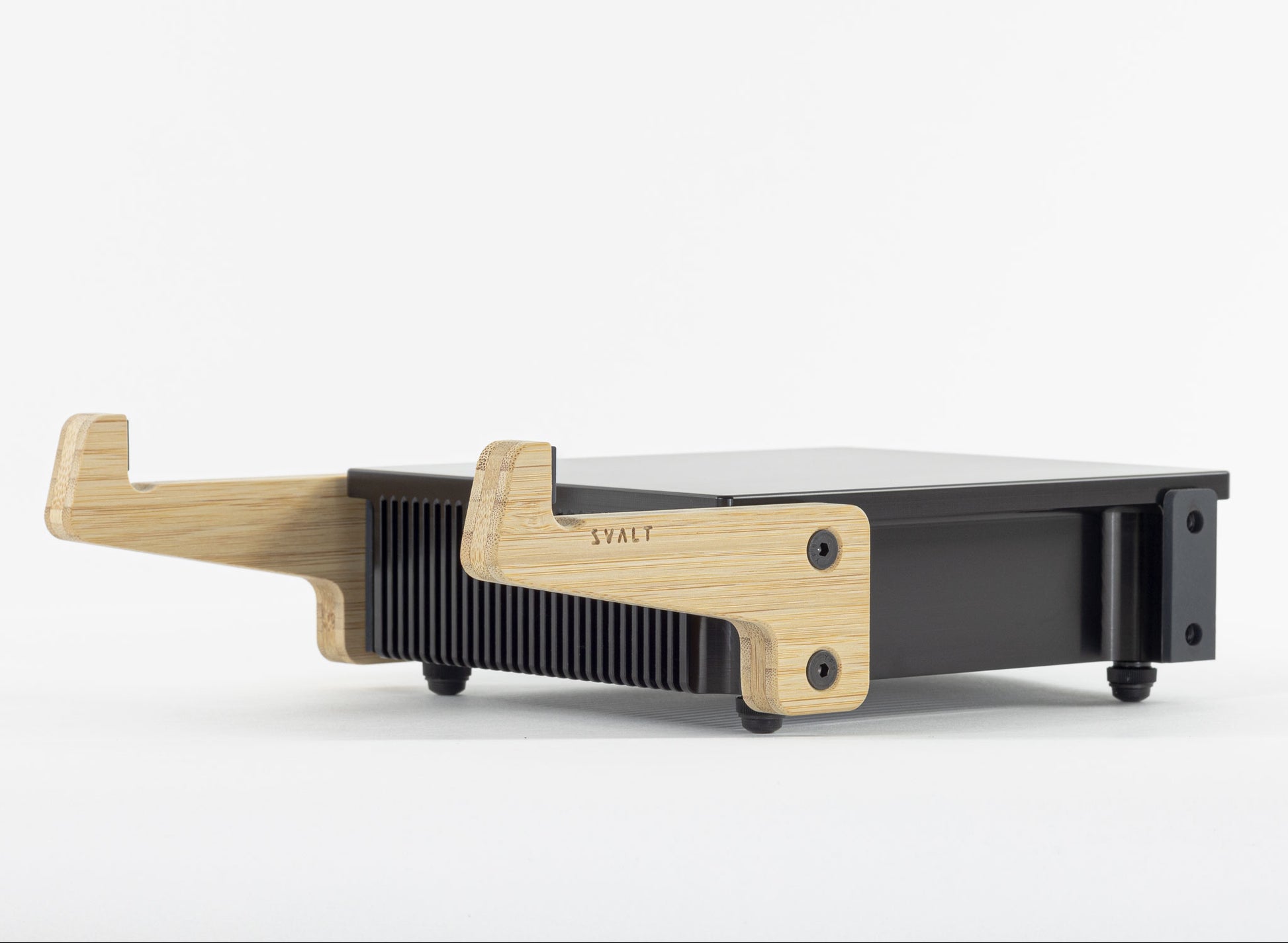

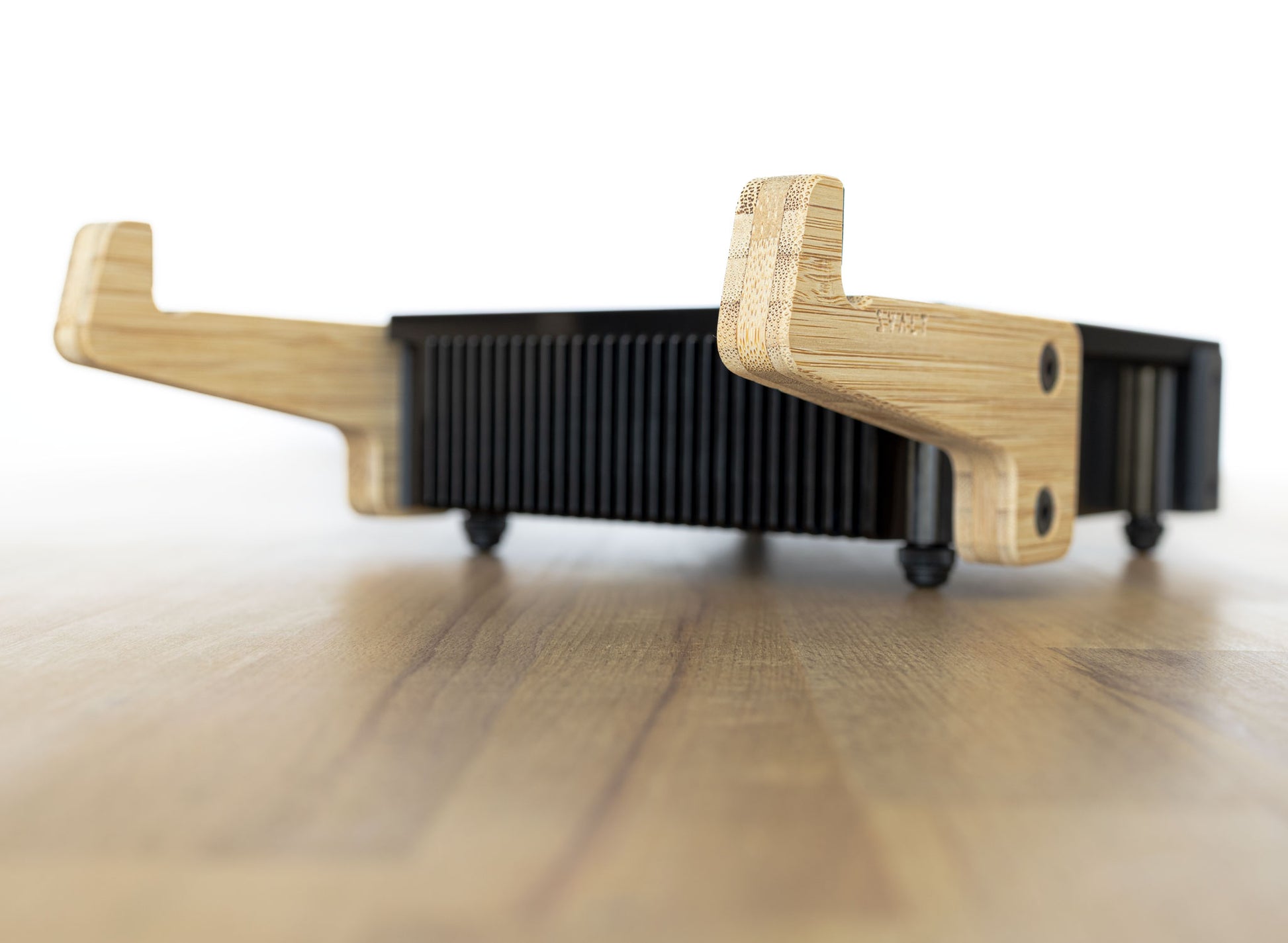

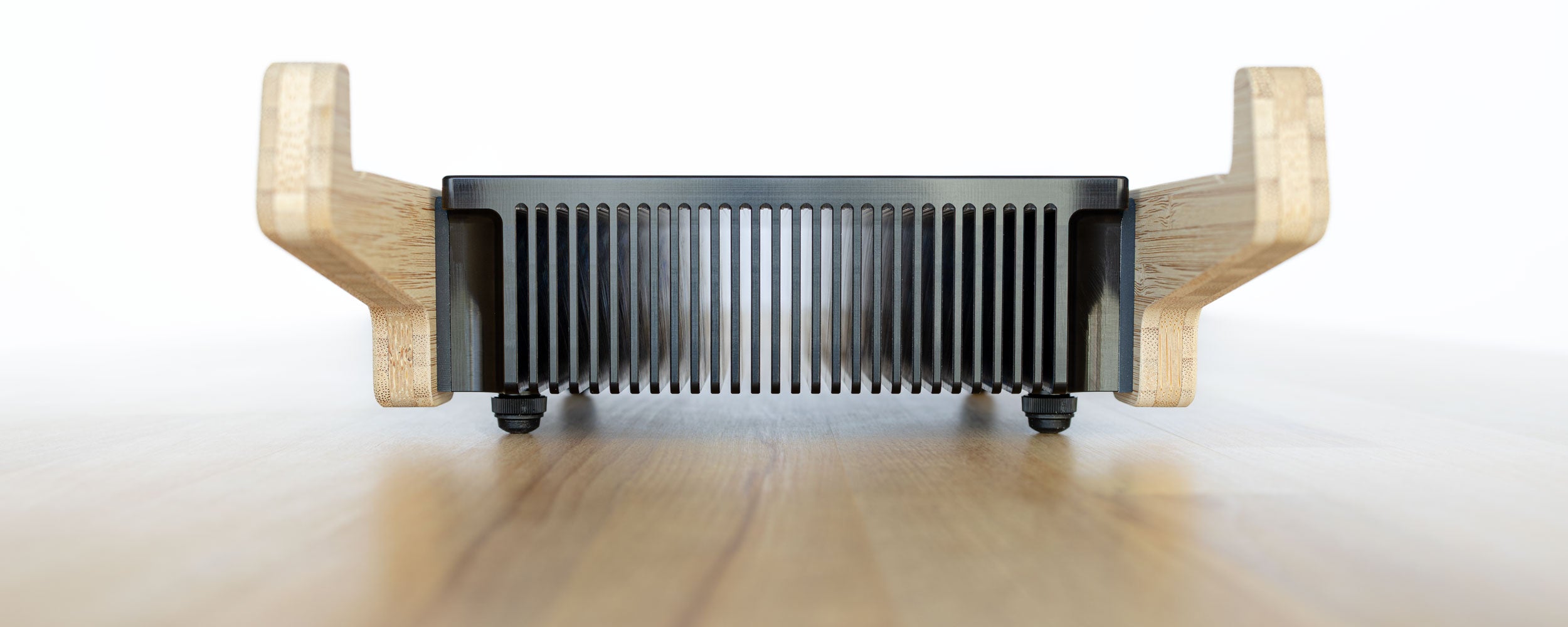

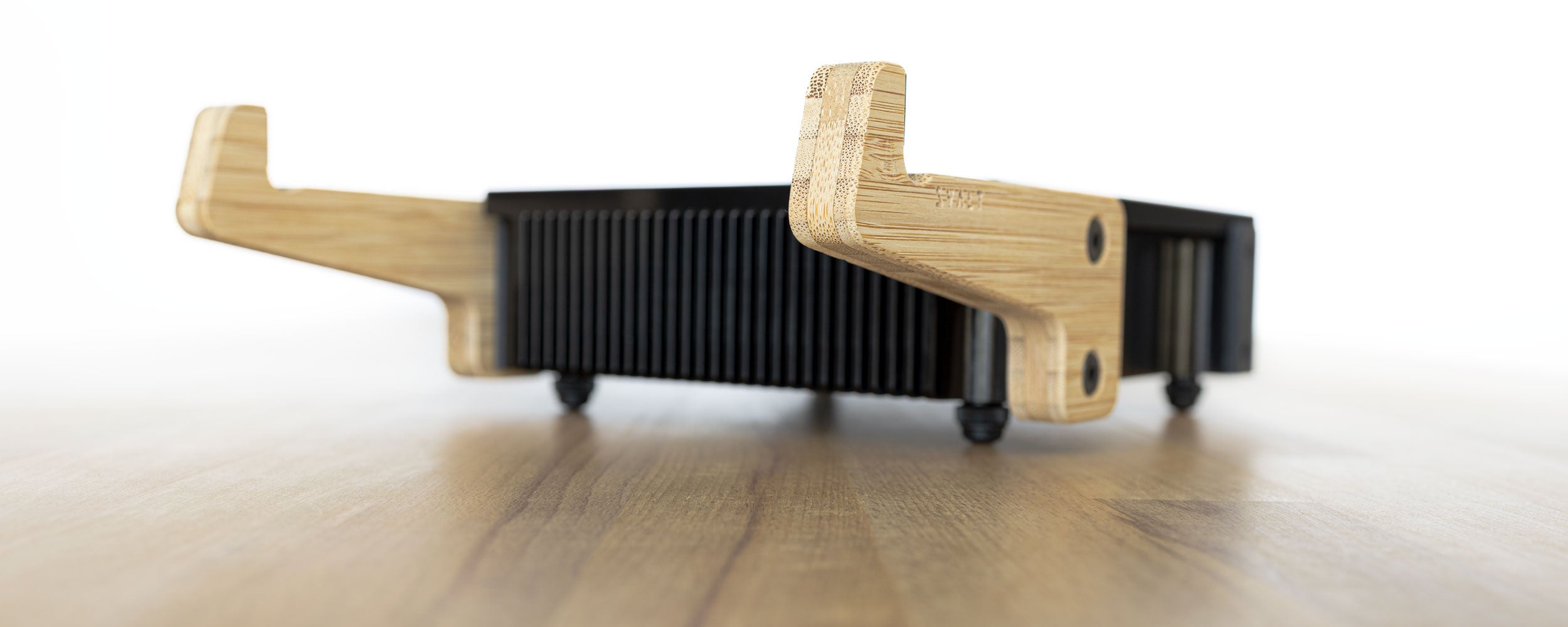

Amber Bamboo
Made from fast-growing, rapidly-renewable and sustainable bamboo in a solid void-free 3-ply vertical edge construction with formaldehyde-free binder. Bamboo ply material makes for exceedingly durable, strong, light, and consistently high-quality milled parts. The bamboo has an amber golden-brown hue produced by caramelizing naturally occurring sugars within the bamboo. The face surface has a smooth finish, and the milled edge shows the two surface layers over the central core layer.

Thickness
Approximately 1/2” thick material with +0.010 / -0.025 inch.

Finish
Unfinished flat face and edge surfaces. The materials are not sealed or coated, and they are left with a more “natural” appearance. While the materials do not require an applied finish, if customers prefer a darker color, brighter reflectivity and aesthetics of an applied finish, then they can choose to apply a wood finish such as linseed oil. Note that if applying a finish treatment, then avoid contacting pads and avoid getting near the pad’s adhesive area as it could result in adhesion failure.

Cleaning
Wipe with a slightly damp cloth, and add a mild dish soap if needed. Note to avoid exposure with no more moisture than a slightly damp cloth, and avoid exposing pad adhesive to moisture.

Variation
As an organic plant based material, there can be variations within an individual part and between parts, which can include changes in color tone (warmer or cooler), color tint (darker or lighter), changes in texture (smoother or rougher), and elements such as knots and small material voids. As a result of variability in material appearance, material sourcing and material availability, the material used for each customer order is subject to change. Product photos are approximate representations of each material type. Material details will be changed and/or updated here within specifications when possible.


ALUMINUM MATERIAL

Material Description

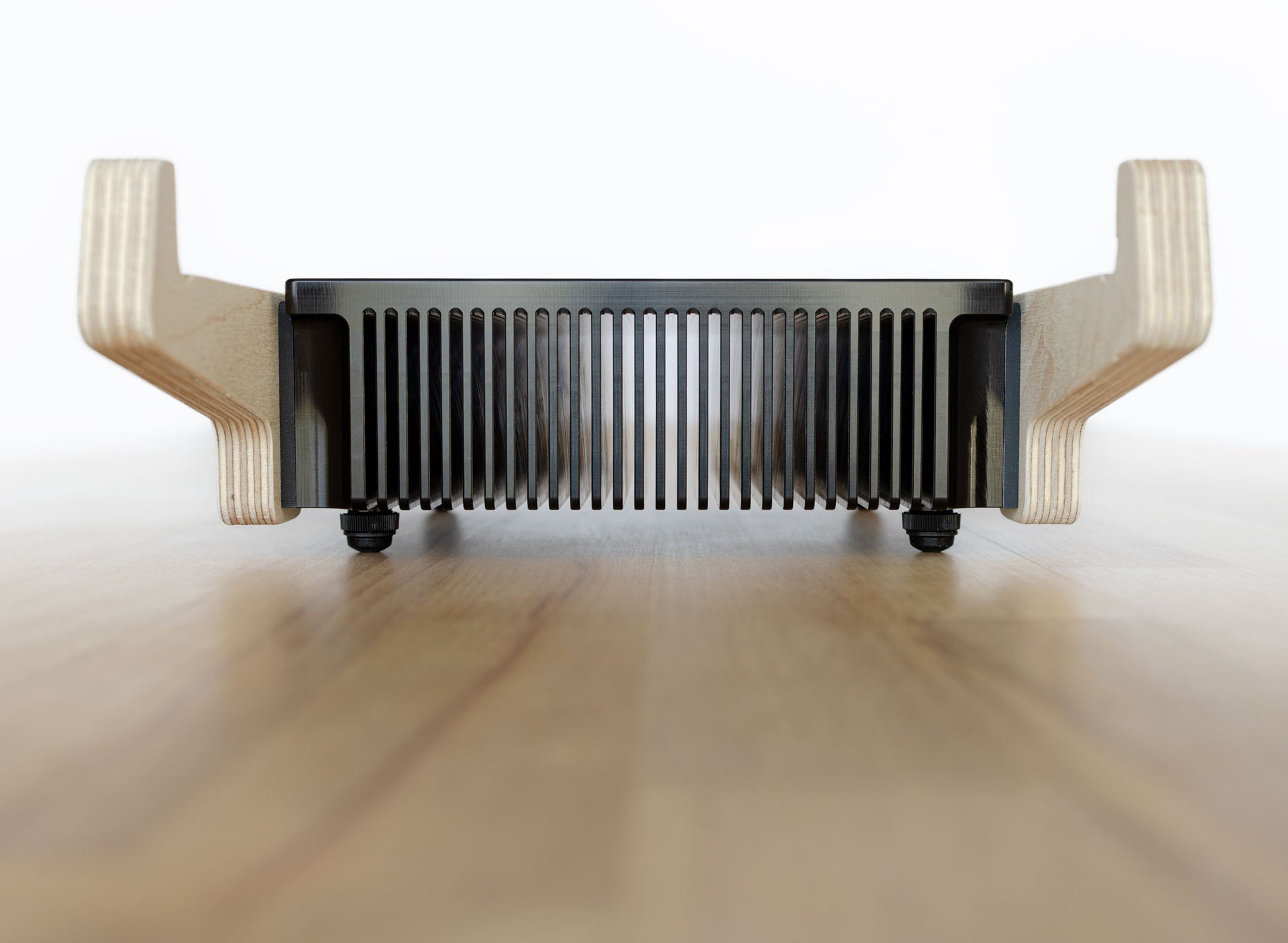

Heatsink milled from solid 6061-T6 aluminum bar stock.

Available Finishes and Colors
The aluminum heatsink is available with the following finish/color options:
- Deep Matte Black Anodize: A deep matte black anodized aluminum with hand and mill finish surfaces.
- Raw Aluminum: Raw aluminum with hand and mill finish surfaces have a mildly bright “silver” like appearance.

Cooling Performance
The heatsink with a dark anodize aluminum finish has a slight improvement in emissivity for increased radiant cooling compared to the heatsink with raw aluminum finish, and the new deep matte black finish has a slight improvement over the prior space black finish. This is only a slight improvement that is most apparent with passive airflow cooling, and is less notable when a fan is added to provide active airflow cooling.

Surface Conditions
The top coupling plate of the heatsink is hand finished to create an extra smooth and flat surface for maximum heatsink cooling performance. The coupling plate surface prioritizes functional performance and may not be visually even and consistent. The rest of the heatsink has a CNC machined / milled finish. The interior walls of the cooling fins and cooling fin channels may have a slightly rougher machined finish as the result of fabricating the incredibly thin cooling fin and incredibly narrow cooling channels required to achieve the exceptionally high levels of cooling surface area within a heatsink made from a solid block of aluminum.

Surface Finish for Anodized Aluminum
An anodize finish applied to the raw aluminum increases the thickness of the aluminum’s natural oxide layer, making it more resistant to wear, scratches, and corrosion. The anodize process includes a dye, sealant and other steps to improve appearance and durability. The heatsink’s top coupling plate surface prioritizes functional performance and may not be visually even and consistent. The heatsink’s new deep matte black finish prioritizes cooling performance and so has a more dull appearance.

Surface Finish for Raw Aluminum
Raw aluminum is a strong and enduring material that is naturally resistant to corrosion and does not “rust” like steel. Raw aluminum is inherently stable as the surface forms a thin and protective layer of oxide on the surface when exposed to air, which is a natural type of anodize finish that helps prevent further corrosion. The surface appearance will patina and change over time as a result of this oxidization process, as well as reacting to sunlight, moisture, fingerprints, and other factors.

Care for Raw Aluminum
Keep raw aluminum dry. When handling the heatsink’s top surface laptop coupling plate care should be taken to prevent scratches and exposure to substances that can leave a mark, including finger prints. Surface scratches, marks or other changes to the cosmetic surface may occur over time. Customers may prefer the patina and “weathered” surface appearance, or they can recondition and brighten surfaces as desired. With proper care aluminum can endure for decades and centuries.

Cleaning Anodized Aluminum
Wipe surface with a soft cloth or sponge that is dampened with warm water. Add a mild dish soap if needed. For the heatsink’s top coupling surface, it is recommended to work with the surfaces existing grain from the top-to-bottom and not from side-to-side.

Cleaning and Reconditioning Raw Aluminum
Wipe surface with a soft cloth or sponge that is dampened with warm water. Add a mild dish soap if needed. Additional steps can be used to clean and/or recondition raw aluminum surfaces, including polishing with a polishing product made specifically for use with raw aluminum. Additional steps can be taken as needed to restore or repair, such wet sanding with a fine grain sand paper. Make sure to fully dry raw aluminum with a soft towel and then leave surfaces uncovered to air dry after any cleaning or restoration. For all of the above options, it is recommended to work with the heatsink’s top coupling surface grain that runs from the top-to-bottom and do not work from side-to-side.

Warning
Do not use chemical cleaners, solvents or other substances unless they are specially designed for use with anodized or raw aluminum. Avoid exposing pad adhesive to moisture.

COMPATIBILITY SPECIFICATIONS

Stand Support Compatibility
The second generation Mx stand supports use bolt-on laptop support arms. By separating the laptop support arms from the heatsink supports, the heatsink maintains the ideal position for cooling the laptop while allowing the laptop support arms to be exchangeable for optimal fit with different laptop models and sizes.

Separate bolt-on laptop support arms are available in two sizes. The large arms are optimized for 2021+ 16-inch MacBook Pro and 2023+ 15-inch MacBook Air. The small arms are optimized for 2021+ 14-inch MacBook Pro and 2022+ 13-inch MacBook Air.

MacBook Pro laptops have built-in fan cooling systems that exhaust hot air along the back edge and have a larger radius around the bottom edge. This requires the MacBook Pro’s back edge to be positioned further back from the heatsink’s back edge. This allows the same laptop support arm to be optimized for the larger 16/14-inch MacBook Pro and the smaller 15/13-inch MacBook Air.

MacBook Air laptops lack a built-in fan cooling system and have a tighter / smaller radius around the bottom edge. This allows the MacBook Air’s back edge to be positioned closer to the heatsink’s back edge. This positioning places the MacBook Air’s processor closer to the center of the heatsink for increased heat transfer. This allows the same laptop support arm to be optimized for the smaller 15/13-inch MacBook Air and the larger 16/14-inch MacBook Pro.

Mx Product Line Compatibility
All Mx models within the Mx modular heatsink cooling system use a universal support design approach to offer compatibility with a wider range of devices, including all modern Apple laptops, many PC laptops and other devices. The following is a list of compatible devices. The list includes recommended heatsink mounting position when used with first generation high/low stand supports, and recommended laptop support arm size when used with second generation high/low stand supports.

Apple MacBook Pro

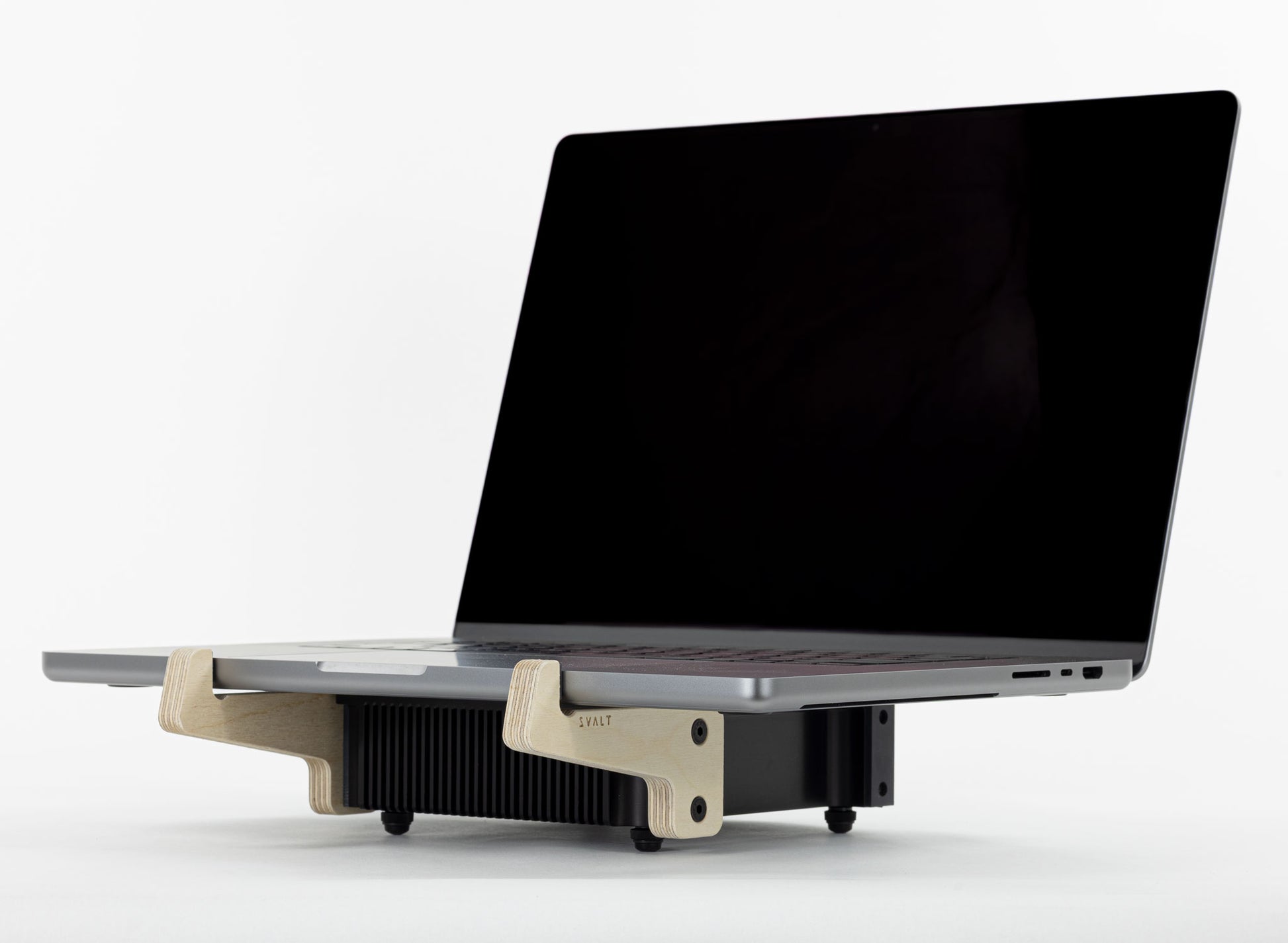

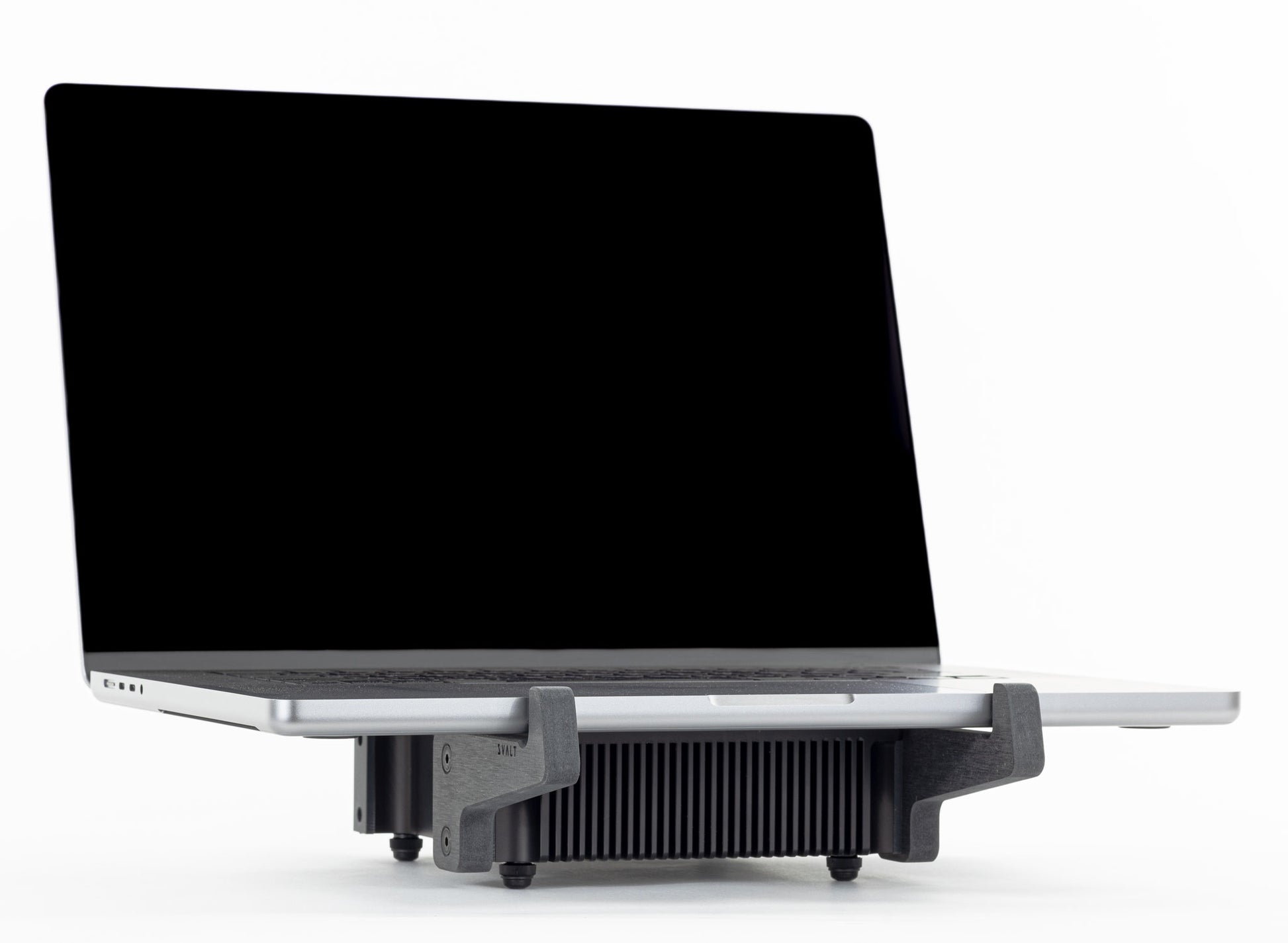

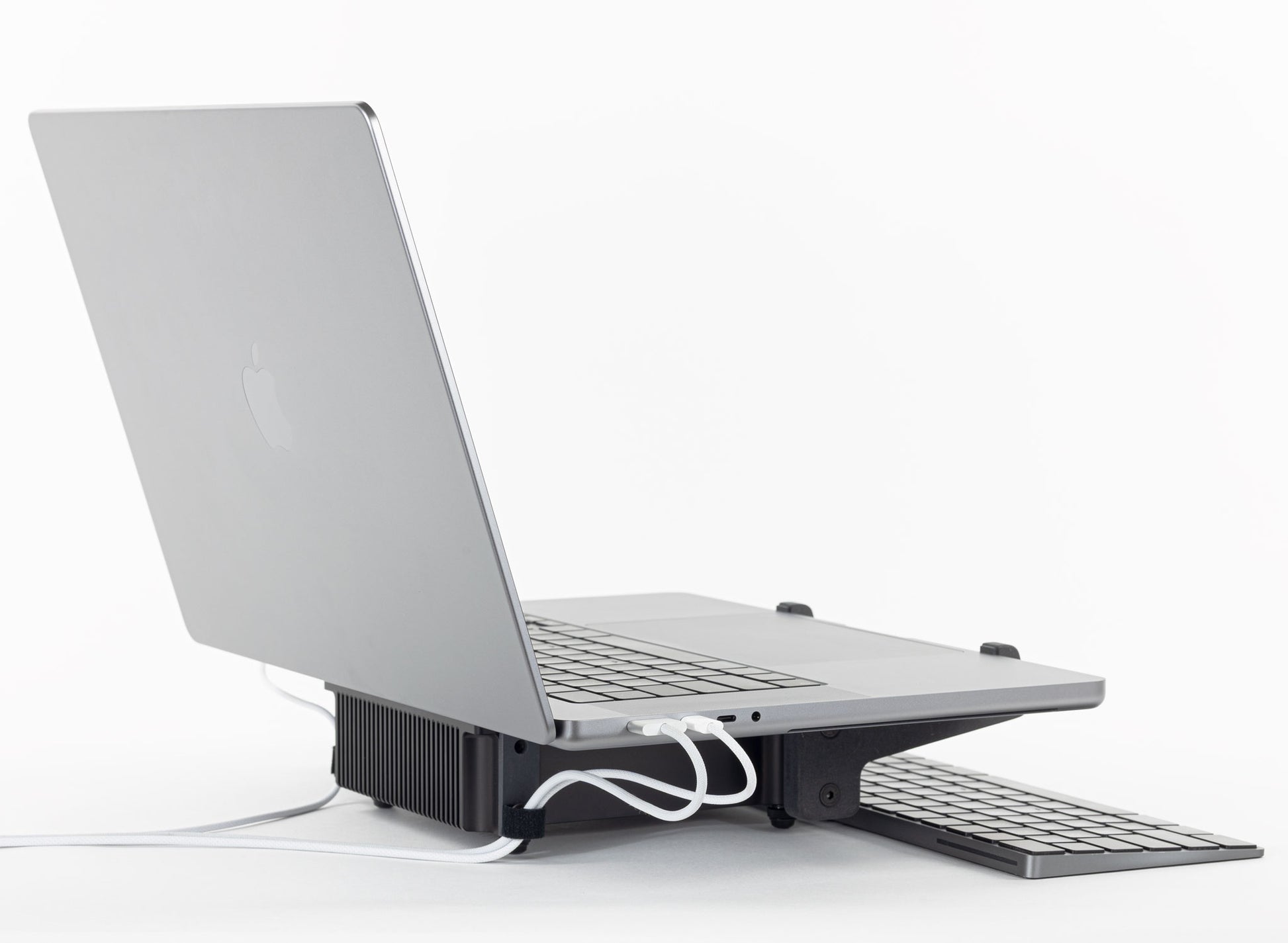

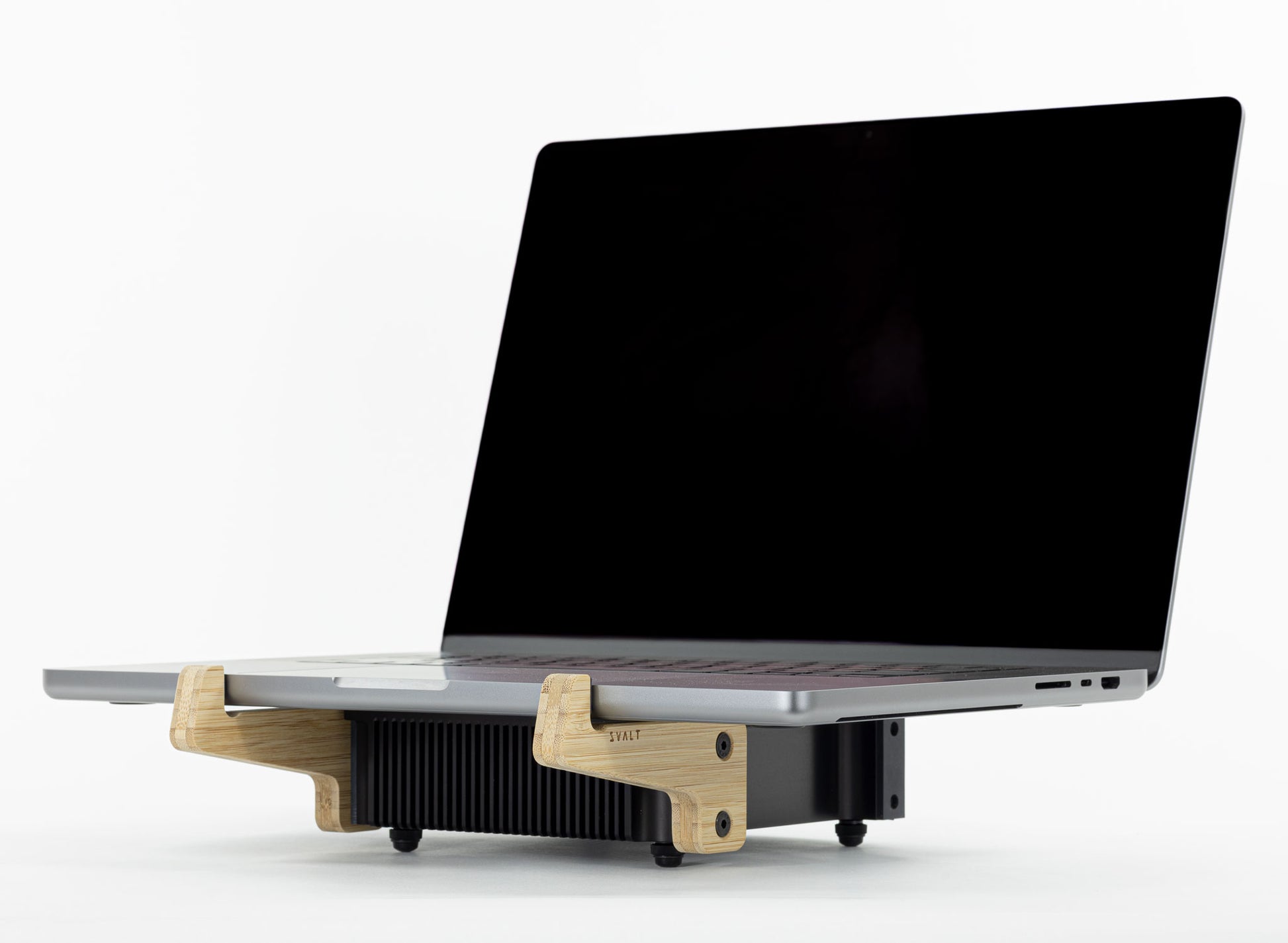

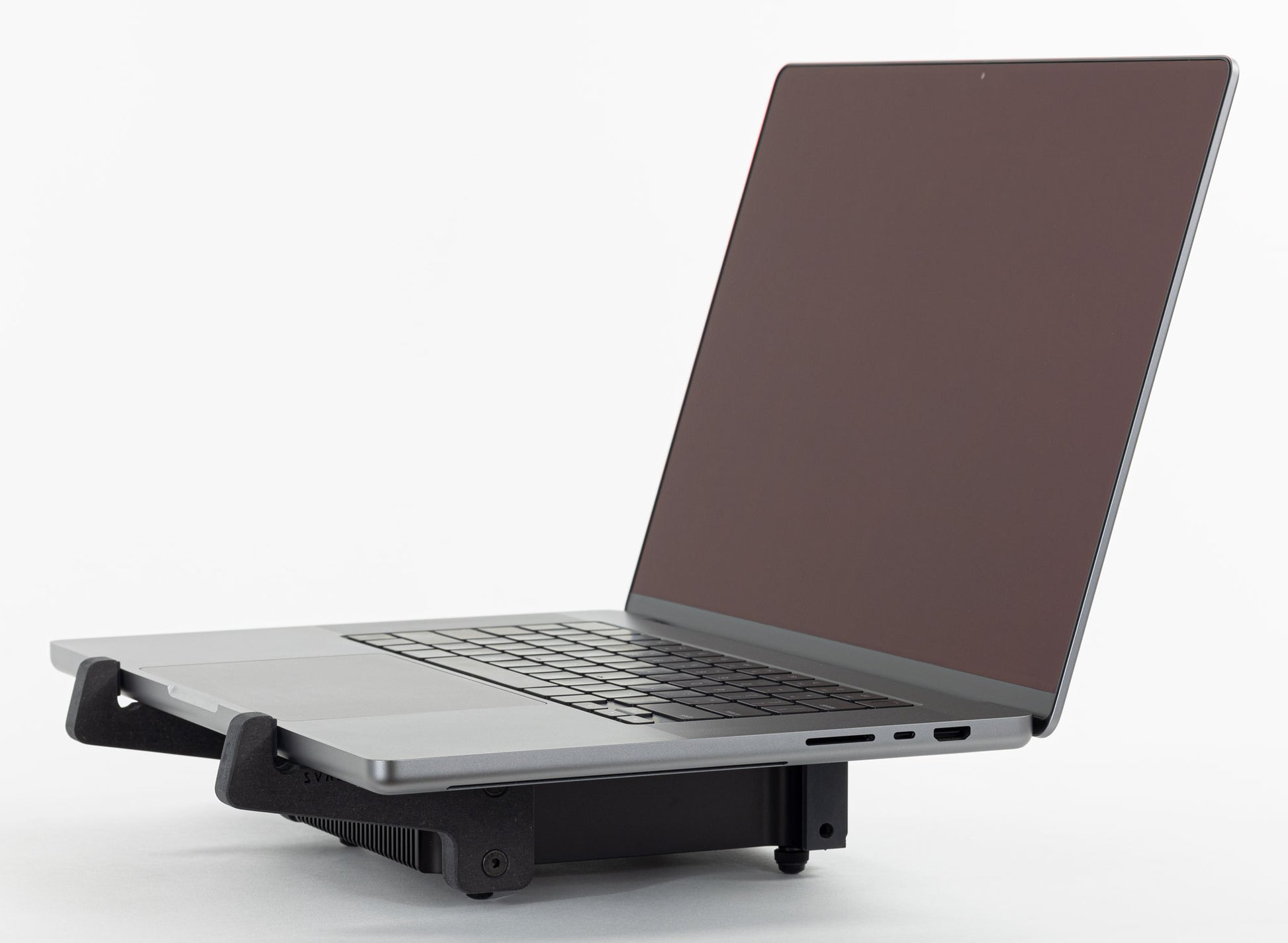

• 2021+ 16-inch (Apple Silicon): position 1 / large arm.
• 2021+ 14-inch (Apple Silicon): position 3 / small arm.
• 2023+ 14-inch (Apple Silicon): position 3 / small arm.
• 2020-2023 13-inch Touch Bar (Apple Silicon): position 4 / small arm.
• 2019-2020 16-inch Touch Bar (Intel): position 2 / large arm.
• 2016-2019 15-inch Touch Bar (Intel): position 3 / large arm .
• 2016-2020 13-inch Touch Bar (Intel): position 4 / small arm.
• 2016-2019 13-inch non-Touch Bar (Intel): position 4 / small arm.
• 2012-2018 15-inch Retina (Intel): position 2 / large arm.
• 2013-2017 13-inch Retina (Intel): position 4 / small arm.
• 2012 13-inch Retina (Intel): position 4 / small arm.

Apple MacBook Air

• 2023+ 15-inch (Apple Silicon): position 2 / large arm.
• 2022+ 13-inch (Apple Silicon): position 4 / small arm.
• 2020-2023 13-inch Retina (Apple Silicon): position 4 / small arm.
• 2018-2020 13-inch Retina (Intel): position 4 / small arm.
• 2010-2019 13-inch (Intel): position 4 / small arm.

Apple MacBook Neo

• 2026+ 13-inch (Apple Silicon): position 4 / small arm.

Apple MacBook

• 2015-2018 12-inch Retina (Intel): position 4 / small arm.

Other Devices

• The Mx is compatible with many other laptops, tablets and devices per the Compatibility Criteria below.

Compatibility Criteria
The Mx is a fully modular system built around the core heatsink component. The top of heatsink has an extra large coupling plate for direct metal-to-metal coupling with a device’s metal enclosure/chassis to thermally conduct heat from the device and into the heatsink. For device compatibility with the Mx modular heatsink cooling system, all of the following compatibility criteria must be met:

• Metal Coupling: For proper heatsink coupling and maximum thermally conductive heat transfer, the back/bottom of the device should have a metal enclosure/chassis without a protective cover/case installed over or on top of the metal surface.
• Flat Coupling: For proper heatsink coupling and maximum thermally conductive heat transfer, the back/bottom of the device should have a flat metal surface free of pads, bumps and protrusions within the heatsink’s coupling area.
• Coupling Area: For proper heatsink coupling and maximum thermally conductive heat transfer, the back/bottom of the device should have flat metal surface that is at least 6.750 inches front-to-back and 5.950 inches side-to-side. A smaller area can work with a device that is smaller than the heatsink and meets other compatibility criteria.
• Air Vents: If the device has a built-in air cooling system, then the device’s vent locations and their direction of airflow needs to be considered, such as the following: 1) The device’s vents should not be covered by the heatsink’s coupling area. 2) The device’s hot exhaust vents should not blow directly onto the heatsink.
• Fit w/ Dock Supports: The Dock Supports position the heatsink above the device’s bottom edge by approximately 0.430 inches.
• Fit w/ Stand Supports: The second generation High/Low Stand Supports use laptop support arms available in two sizes, large and small. The large arms position the front edge of heatsink approximately 2.5 inches from the device’s front edge. The small arms position the front edge of heatsink approximately 1.4 inches from the device’s front edge.

Learn More
See Laptops page to learn more.

TESTING SPECIFICATIONS

Mx Cooling Performance

The Mx product line was designed to exceed everything that had come before with extreme cooling capabilities. The Mx's massive thermally conductive heatsink silently pulls heat from the laptop to help reduce temperatures and quiet built-in fans. While the Mx’s optional fan cooling system helps tackle extra high-intensity and long-duration workloads.

Test Results

SVALT product cooling and audio performance shown in the graph above is approximate and based on a wide range of averaged and normalized testing through conceptual research, product development and final production proving phases.

Test results vary depending on a product’s configuration, fan use, fan model, fan speed setting, laptop model, laptop configuration, laptop operation, workstation setup, external monitor setup, and overall testing conditions.

Test Conditions

Mx tests were conducted per SVALT’s testing guidelines that control testing conditions.

Test Laptop Configurations

Mx tests for all models and configurations were conducted with the laptop in closed-screen operation while connected to a single low-resolution external monitor. Comparison tests were also conducted with the screen open and without an external monitor for high and low stand models.

As a general condition for all laptop models, adding a high-resolution external monitors and/or multiple external monitors will increase demand on the laptop and generate more heat. Demand and heat generation can be reduced by using only the laptop’s built-in display, or by closing the built-in display and connected to a single low resolution external monitor.

Test Mx Model Configurations

Tests were conducted with multiple Mx model configurations. In general, results were more similar than dissimilar between the different Mx model configurations as they all share the same massive heatsink and all are available with an optional fans to boost cooling performance.

Mx Model Comparison

When selecting a Mx model, it is recommended to select a model based on a desired workstation setup, such as the dock supports for positioning the laptop upright with screen closed and moved aside to free up desk space, the high stand supports for improved screen viewing ergonomics with the laptop’s built-in screen, or the low stand supports for a low-profile setup.

However, if you would like to understand the differences between each Mx model’s cooling design, then see the following detailed comparisons.

New 2nd Gen Mx Models: Cooling design advantages per Mx model with new second generation supports:

MxSW2-hi
The second generation high stand supports use a totally new design that brings the following significant improvements:

• Lower Heatsink Support Angle: Improves conductive cooling design by approximately halving the laptop support angle so that more of the laptop’s weight presses down onto the heatsink’s conductive coupling plate for increased heat transfer. The laptop support angle has been set to as low as possible while still retaining sufficient forward slope to hold the laptop in place.
• Higher Heatsink Support Position: Improves airflow cooling design by approximately doubling the heatsink’s and 140mm fan’s minimum height above the desk surface. More open space under the heatsink increases passive airflows through the heatsink’s cooling fins for increased heat extraction. More open space under the 140mm fan reduces fan intake restriction for increased fan efficiency with lower noise and higher airflow.
• Larger Heatsink Support Opening: Improves airflow cooling design by approximately doubling the heatsink support’s open area. More open area increases passive airflows through and around the heatsink, as well as increases active airflows into and out of the 140mm fan.
• New Laptop Support Arms: Improves heatsink cooling design for both smaller and larger laptops by using new bolt-on laptop support arms of different sizes that optimally place the laptop for heatsink cooling.
• New Heatsink Finish: Improves radiant passive cooling by increasing emissivity with a new matte black anodize finish.

MxSW2-lo
The second generation low stand supports use a totally new design that brings the following significant improvements:

• Lower Heatsink Support Angle: Improves conductive cooling design by reducing the laptop support angle to a flat horizontal so that all of the laptop’s weight presses down onto the heatsink’s conductive coupling plate for increased heat transfer. The laptop support angle is adjustable and can be set to a flat horizontal position. When set to a low or flat horizontal position, then the laptop is more likely to slide or rotate on the heatsink’s smooth coupling surface.
• Higher Heatsink Support Position: Improves airflow cooling design by approximately tripling the heatsink’s minimum height above the desk surface so that more airflow moves under, around and through the heatsink for increased heat extraction.
• Larger Heatsink Support Opening: Improves airflow cooling design by approximately quadrupling the heatsink support’s open area for increased airflows through and around the heatsink.
• New Laptop Support Arms: Improves heatsink cooling design for both smaller and larger laptops by using new bolt-on laptop support arms of different sizes that optimally place the laptop for heatsink cooling.
• New Heatsink Finish: Improves radiant passive cooling by increasing emissivity with a new matte black anodize finish.

MxDW2
The second generation dock supports use a refined design to bring the following improvements:

• Raised Position: Improves airflow cooling design by raising the laptop and heatsink to a higher position for increased airflows under and around the laptop and heatsink.
• Larger Openings: Improves airflow cooling design by enlarging the lower support cutout located behind the padded laptop support shelf for increased airflows under and around the laptop and heatsink.
• New Heatsink Finish: Improves radiant passive cooling by increasing emissivity with a new matte black anodize finish.

All Mx Models
Cooling design advantages per Mx model configuration:

• MxSW2-hi: The second generation high stand supports include numerous cooling design improvements with approximately the greatest cooling design advantages.
• MxSW2-lo / MxSW-lo / MxS-lo / MxSW2-hi / MxSW-hi / MxS-hi: The low and high stand supports have a nearer to horizontal laptop support orientation, which allows the weight of the laptop to press down onto the heatsink’s conductive coupling plate, which in turn increases conductive heat transfer between the laptop and heatsink. The new MxSW2-lo second generation supports provide the option for a flat horizontal laptop position, while the new MxSW2-hi second generation supports reduce the laptop angle by approximately half of the first generation supports.
• MxDW2 / MxDW / MxD: The dock supports allow for the simultaneous use of both the 140mm and 80mm fans, which increases both heatsink and laptop cooling. The extra large size of 140mm fan provides both maximum heatsink cooling. The 80mm fan is positioned to flush out hot air, and for the 2021+ MacBook Pro, and other laptops that include a center intake vent along the back/hinge edge, the 80mm fan drive cooling air into the center intake vent to directly cool processors.
• MxDW2 / MxDW / MxD / MxSW2-hi / MxSW-hi / MxS-hi: The 140mm fan's larger size generates slightly more airflow for a given amount of noise generation. The 140mm fan's larger size spans the full width of the heatsink and nearly span the full length, which moves more cooling air over/through the heatsink cooling fins and removes more heat from the heatsink. The new MxSW2-hi second generation supports have approximately double the open area and approximately half the incline angle for improved fan airflow and increased fan efficiency.
• MxDW2 / MxDW / MxD / MxSW2-lo / MxSW-lo / MxS-lo: The dock and low stand supports position laptops with a center intake vent so that the 80mm fan can simultaneously cool the heatsink and drive air into the laptop for direct internal processor cooling.
• Mx All Models: The heatsink with a dark anodize aluminum finish has a slight improvement in emissivity for increased radiant cooling compared to the heatsink with raw aluminum finish, and the new deep matte black finish has a slight improvement over the prior space black finish. This is only a slight improvement that is most apparent with passive airflow cooling, and is less notable when a fan is added to provide active airflow cooling.

All Mx Models per Laptop Models
Cooling design advantages per laptop model:

• All laptop models: The second generation high stand supports (MxSW2-hi) include numerous cooling design improvements with approximately the greatest cooling design advantages for all laptop models.
• 2021+ 14-inch MacBook Pros: The second generation stands (MxSW2-hi / MxSW2-lo) use separate bolt-on laptop support arm modular components to position the laptop on the heatsink for optimal cooling. The arms are available in two sizes, large and small, that maintain the same high level of cooling optimization for both large and small laptops. Smaller 2021+ 14-inch MacBook Pro laptops benefit from unrestricted vent airflow for improved laptop built-in cooling efficiency, and offer an improvement in cooling with smaller laptops compared to first generation stands.
• 2021+ 16/14-inch MacBook Pros: The 2021+ MacBook Pro includes a built-in fan cooling system with a center intake vent along the bottom/hinge edge, as well as two exhaust vents on both sides of the intake vent. The MxDW2 / MxDW / MxD models with both 140mm and 80mm fans running simultaneously increases cooling performance. The MxSW2-lo / MxSW-lo / MxS-lo models with 80mm fan also increases cooling performance. This is the case for this laptop model, and for laptops with similar built-in cooling systems.
• 2022+ 15/13-inch MacBook Airs: The 2022+ MacBook Air does not include a built-in fan cooling system or associated venting. The MxSW2-hi / MxSW-hi / MxS-hi models with 140mm fan increases cooling performance. The MxDW2 / MxDW / MxD models with 140mm fan also increases cooling performance. This is the case for this laptop model, and for laptops with similar built-in cooling systems.

Learn More
See Performance page and Testing Guide page to learn more.
