SVALT Cooling Dock

  • OVERVIEW
    The SVALT Cooling Dock is the first and only workstation solution of its kind that turbo charges laptop cooling systems to help unleash peak performance potential so you can get more work done without a meltdown. The SVALT Cooling Dock is available in two model configurations:

    SVALT D1 Performance Cooling Dock
    The D1’s cooling system uses a fixed speed red fan set to 1700 RPM to provide a balance of audio and cooling performance.

    SVALT D2 High-Performance Cooling Dock
    The D2’s more powerful and advanced cooling system uses a laptop temperature sensor and variable speed black fan to automatically adjust between 0-3600 RPM for simple set-it-and-forget-it operation and to intelligently provide silent to overwhelming cooling power over the course of the workday. The D2 cooling system includes three Auto mode presets to meet a variety of user needs, two Turbo cooling modes for an instant blast of cooling power, and a Custom mode that can be set to any fixed speed from 900 to 3600 RPM for complete user control.

    Back to top of tab
  • TECHNOLOGY FEATURES (D2 only)
    • Intelligently delivers silent to overwhelming cooling power.
    • Provides simple set-it-and-forget-it operation.
    • External sensor measures laptop temperature.
    • Automatically adjusts fan speeds from 900 to 3600 RPM.
    • Low-temperature auto-off eco-standby mode.
    • Three auto and two turbo speed cooling modes.
    • Fixed speed customizable from 900 to 3600 RPM.
    • Discrete LED signals cooling modes and user input.
    • Up to 2x the cooling and performance of the D1.
    • See SETUP tab to learn more.

    DESIGN FEATURES (D2 and D1)

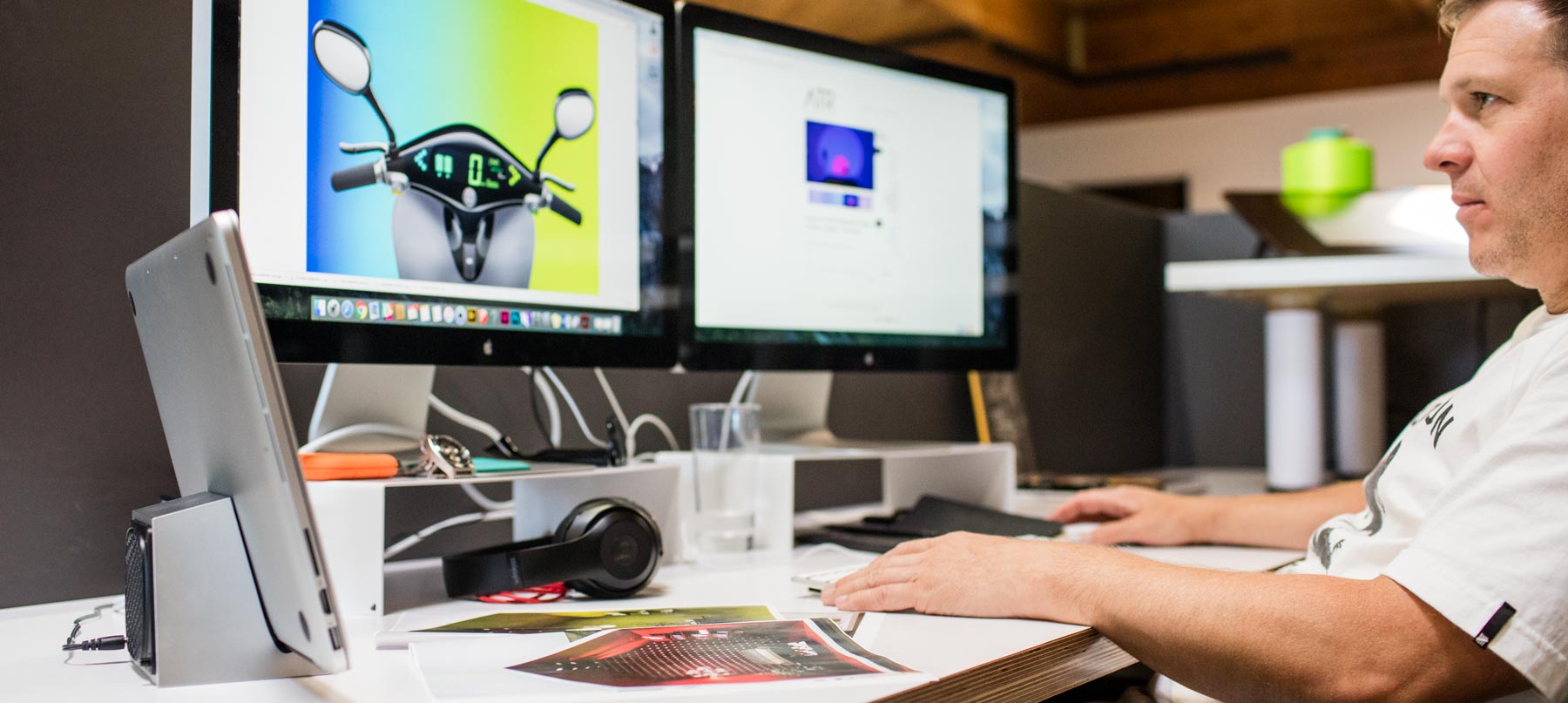

    • Transforms laptops into desktop workstations.
    • Does not require any laptop modification.
    • Adjustable pad accommodates wide range of devices.
    • Stable leaning clamshell support configuration.
    • Access to power, Touch ID and keyboard while in dock.
    • Quick transitions between desktop and mobile.
    • Compact product footprint for more open desktop.

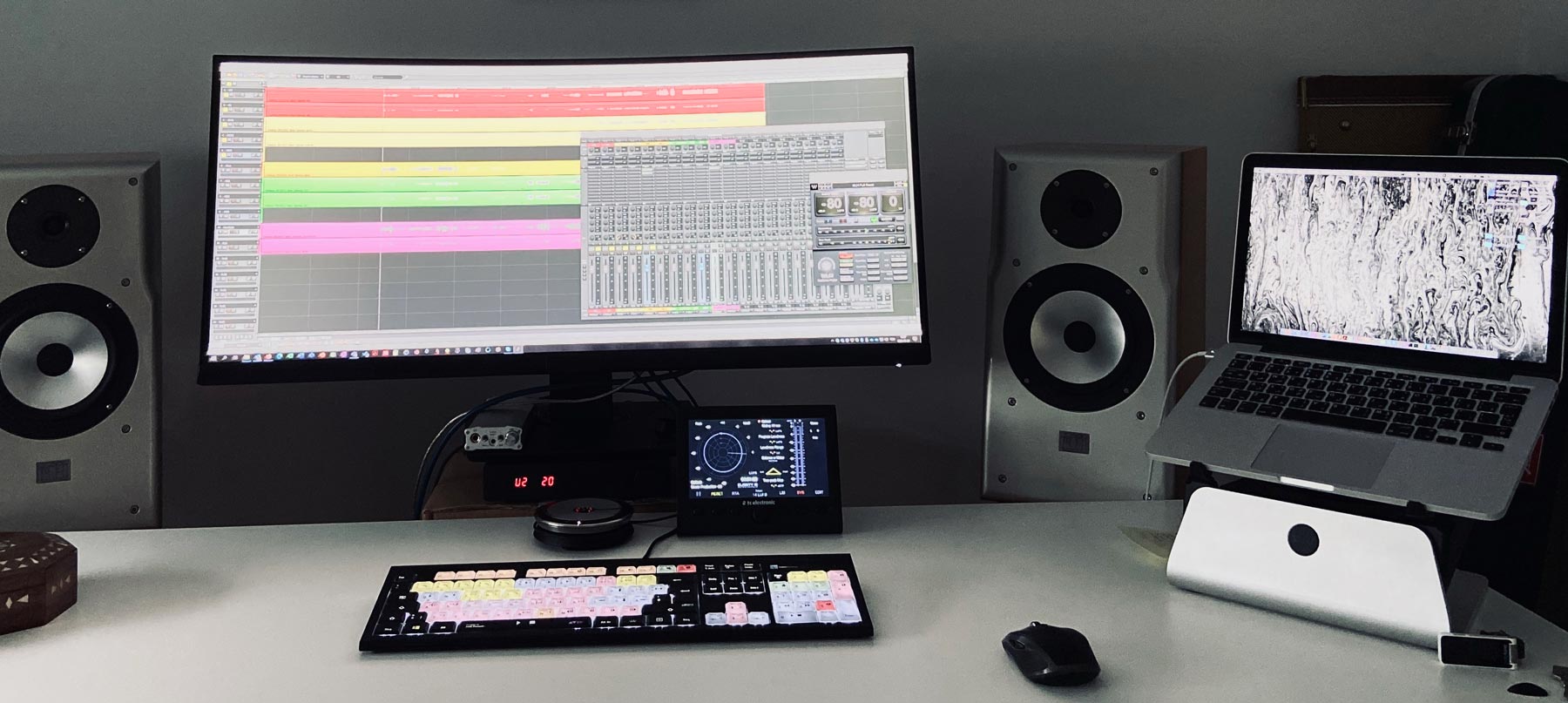

    • Improves ergonomics with external displays and keyboard.
    • See Innovative By Design to learn more.

    PERFORMANCE FEATURES (D2 and D1)
    • Turbo charges laptop’s built-in cooling system.
    • Expands cooling capacity and reserves.
    • Drives cooling air directly onto laptop processors.
    • Reduces/eliminates processor heat throttling.
    • Reduces/eliminates system overheating.
    • Restores power and performance potential.
    • Reduces internal laptop fan load/noise.
    • Preserves internal laptop screen service life.
    • Optimizes graphics for multiple external displays.
    • Increases productivity and return on investment.
    • Powerful 12 volt fan actively cools CPU/GPU.

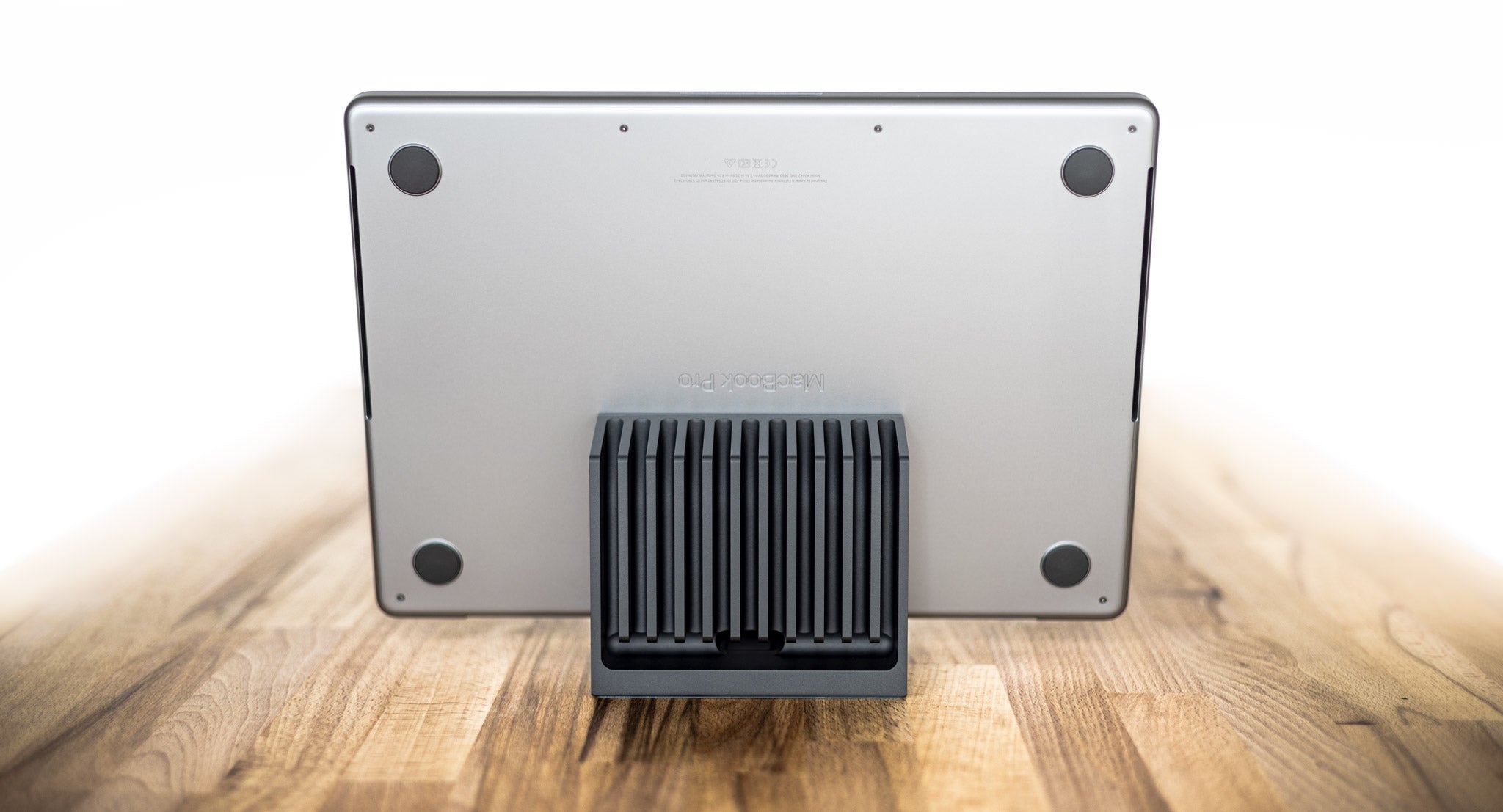

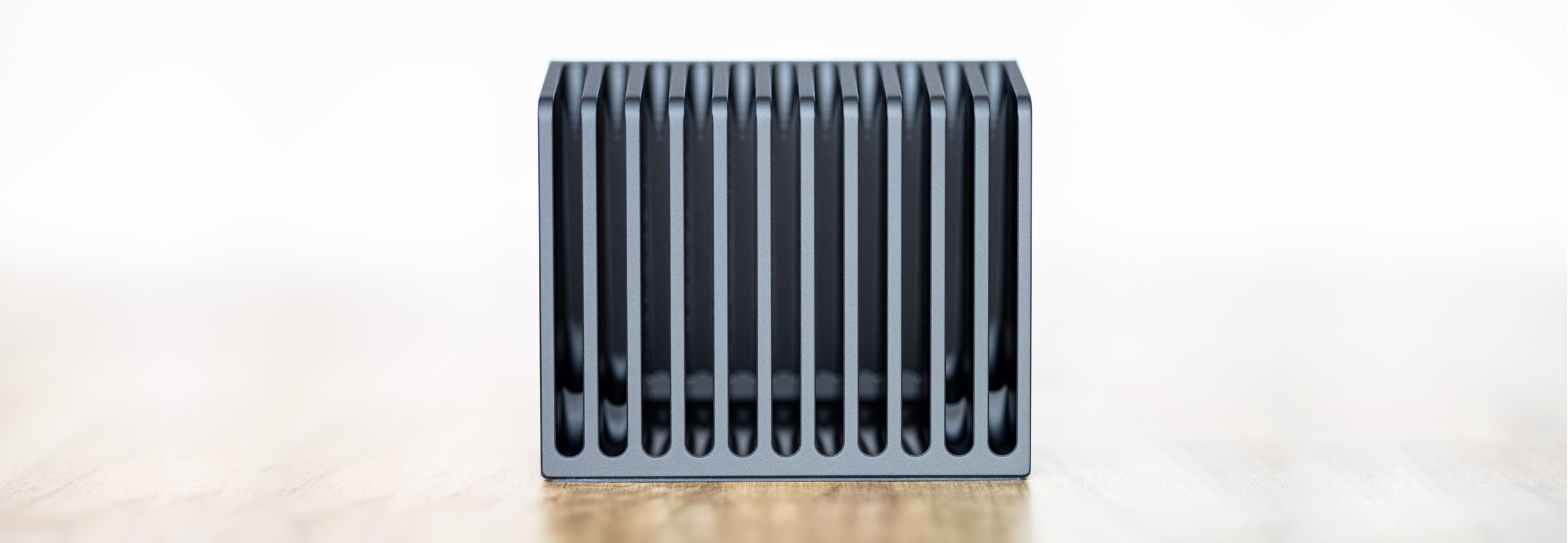

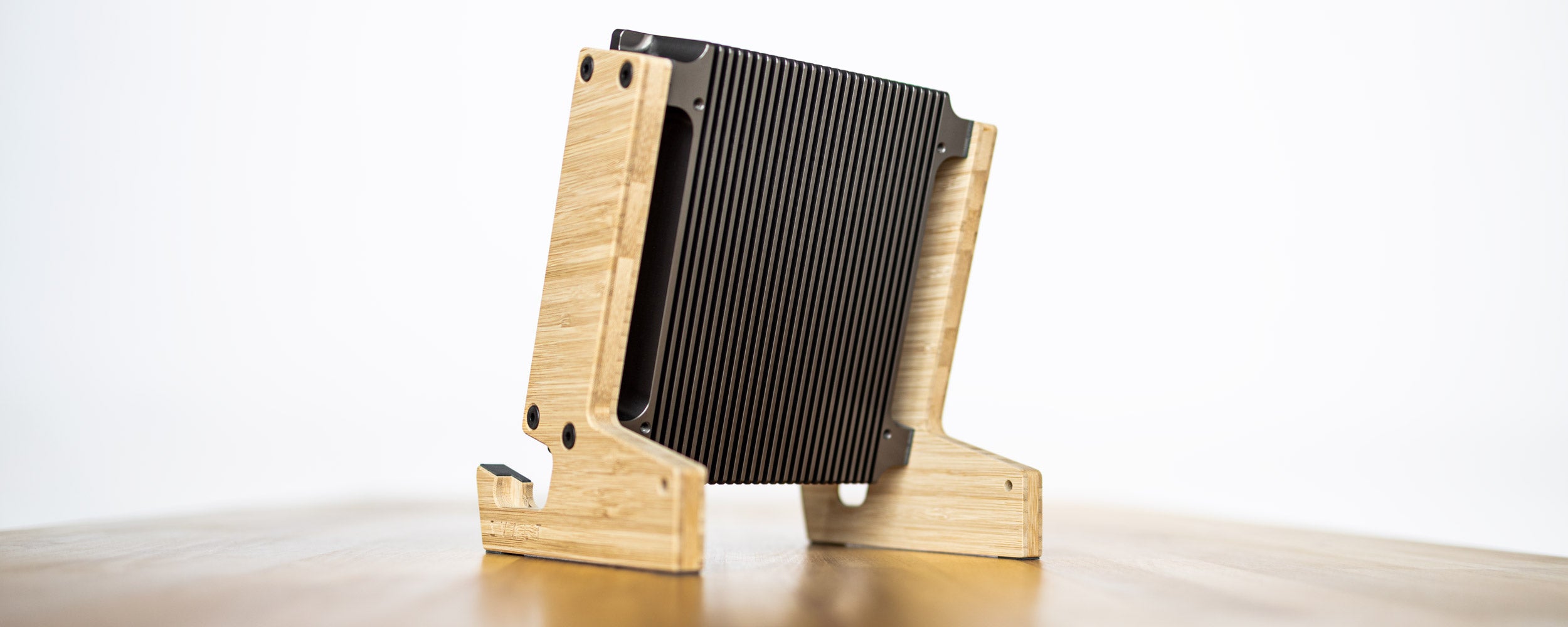

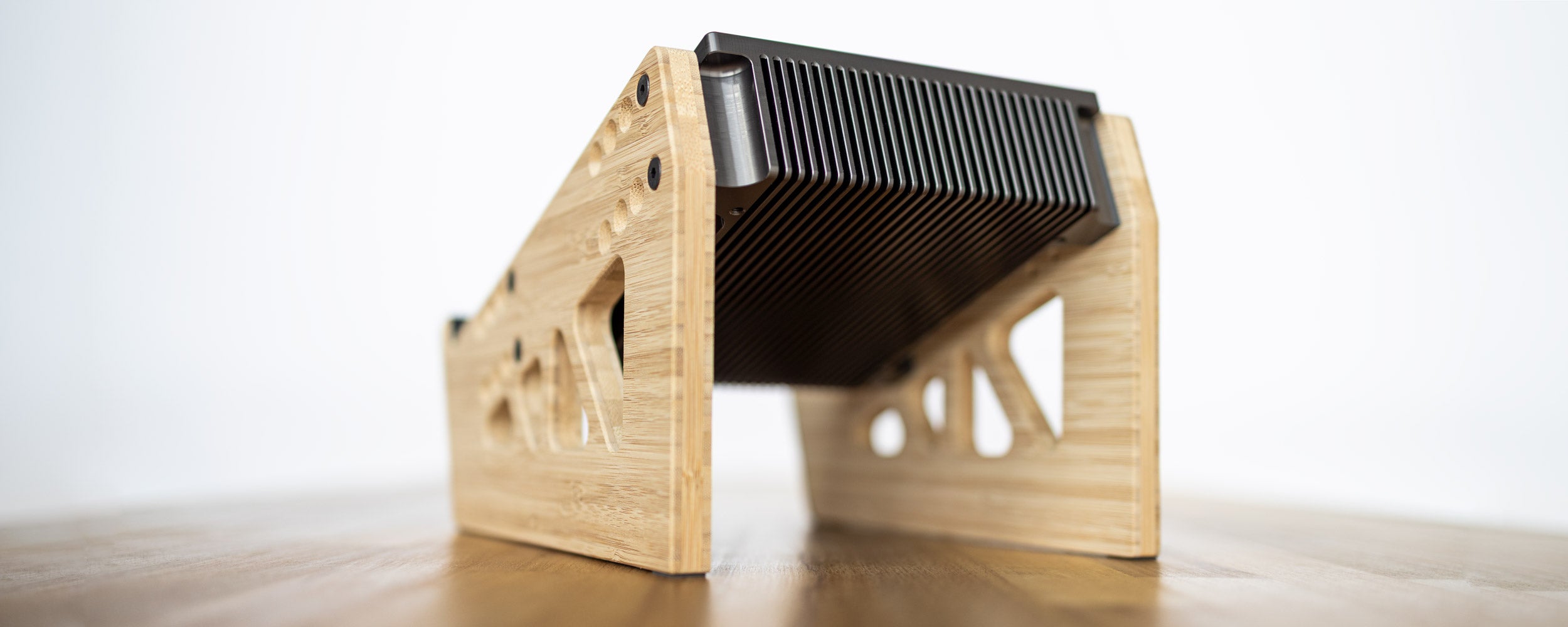

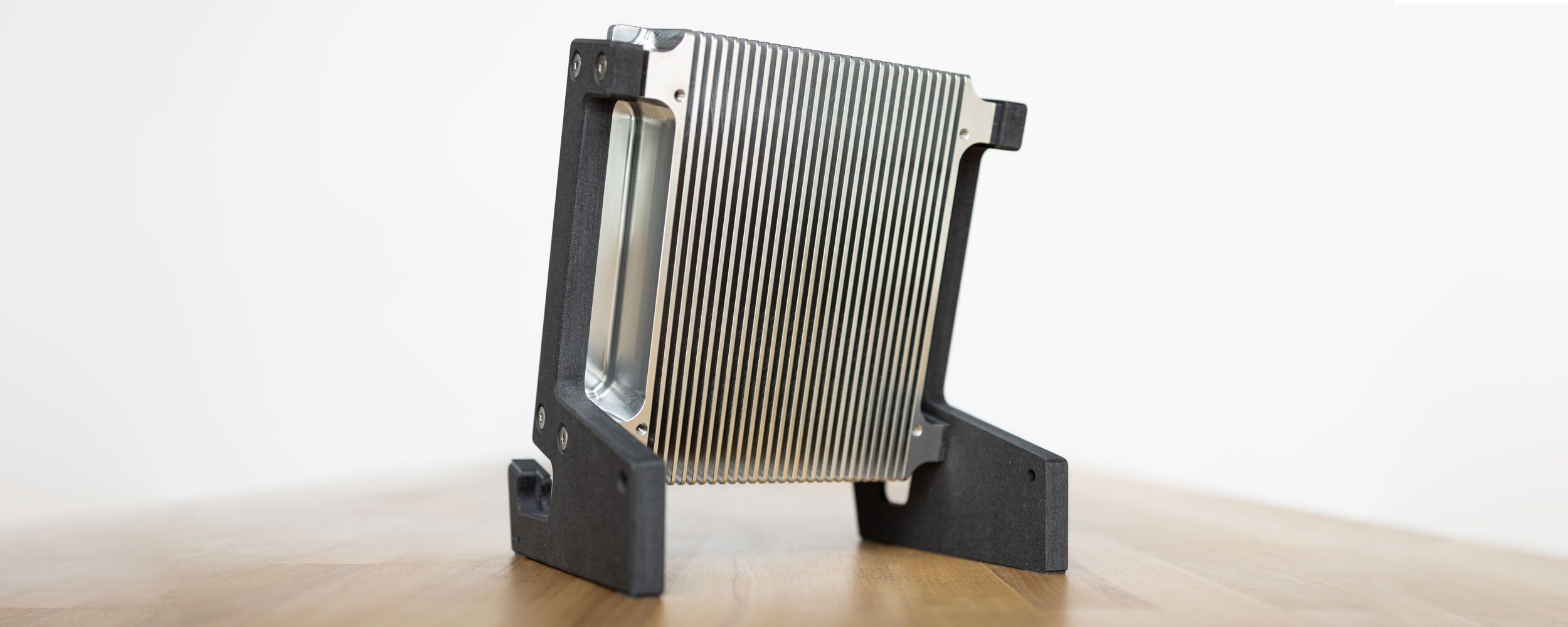

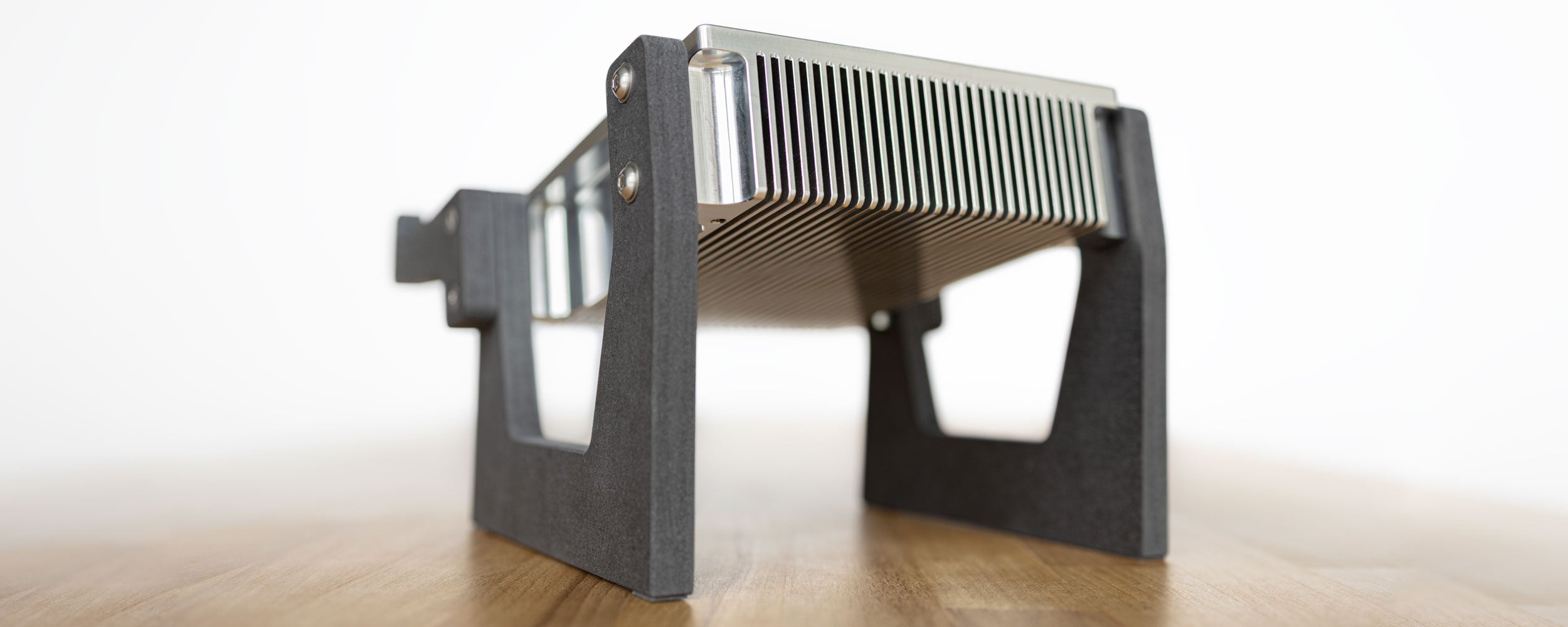

    • Massive 2 lbs heat sink passively cools CPU/GPU.
    • External power supply reduces laptop heat gain.
    • See Performance By Design to learn more.

    QUALITY FEATURES (D2 and D1)
    • Luxurious performance accessory.
    • Elegant office workstation furnishing.
    • Leaves a mark of refined style and sophistication.
    • Elevates and prominently displays premium laptops.
    • Seamlessly merges with select Apple laptops.
    • Fit and finish to match with Apple products.
    • Precision-crafted from solid high-quality aluminum.
    • Designed in Portland, OR, USA.
    • Made in USA, includes foreign electronic parts.
    • One year limited warranty.
    • Shipped in high-quality reusable packaging.
    • See Quality By Design to learn more.

    Back to top of tab
  • COMPATIBLE DEVICES
    To learn what devices are compatible with the SVALT Cooling Dock, see Laptop Compatibility.

    WORKSTATION SETUP
    To learn how to setup a SVALT Cooling Dock workstation, see Laptop Clamshell Setup.

    D1 OPERATION
    To turn on/off the D1’s cooling system press the push-button switch once. The D1’s fan fixed speed has been selected to provide a balance of cooling and audio performance.

    D2 OPERATION
    To turn on/off the D2’s cooling system, press the push-button switch once and the cooling system will start in default Auto cooling mode, or the last user saved mode. In Auto cooling modes the cooling system responds intelligently to laptop temperatures for simple set-it-and-forget-it operation. An external sensor measures laptop temperatures and automatically adjusts fan speeds from 900 to 3600 RPM to meet audio and cooling performance requirements over the course of a workday. When temperatures are low enough the fan slows to a stop, ready to re-start when temperatures rise.

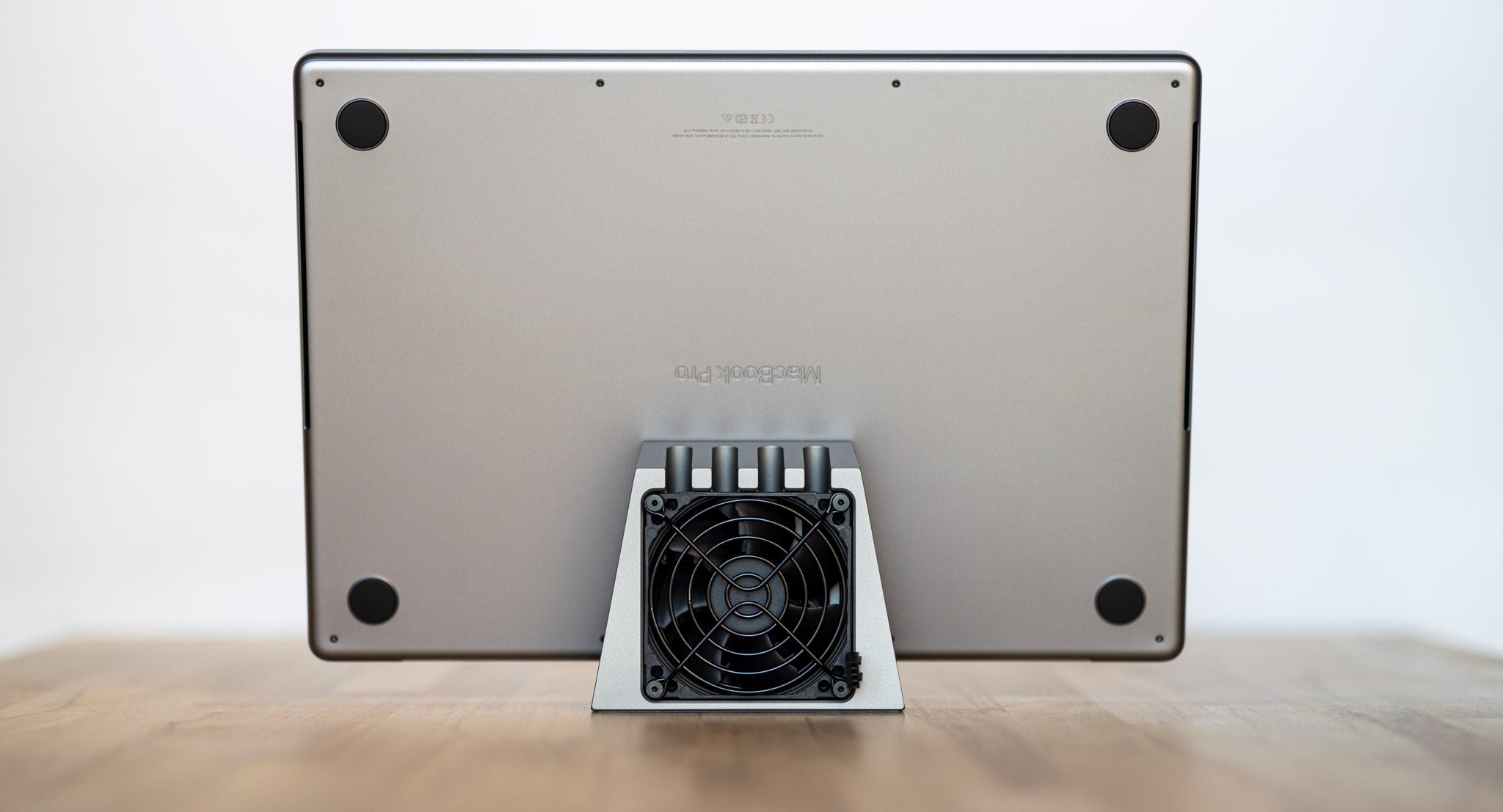

    A LED responds to user activity and visually signals the cooling mode state, while the fan momentarily speeds up to provide an audio signal. The LED is located inside the rear screen, along the bottom of the fan. It’s positioned to be visible when leaning over the laptop and looking down the back side of the dock.

    Use the following switch activations to immediately increase fan speed to 3200 RPM for an extra blast of cooling power:
    • 2x Turbo (very fast flashing LED) Automatically returns to normal cooling mode after 5-min.
    • 3x Turbo + (fast flashing LED) Returns to normal cooling mode after pressing the switch 1x.

    Use the following switch activations to access advanced user cooling modes or to reset to the default cooling mode:
    • 4x Custom (medium flashing LED) Set the cooling system to a fixed speed by pressing the switch 1x when the fan reaches the desired speed while cycling through 900 to 3600 to 900 RPM speeds. Press 4x to reset.
    • 5x Auto - (slow fading LED) Set the cooling system to lower speeds for audio performance priority compared to default.
    • 6x Auto + (fast fading LED) Set the cooling system to higher speeds for cooling performance priority compared to default.
    • 7x Auto (medium fading LED) Reset the cooling system to factory default for a balance of audio and cooling performance. The system can also be reset to factory default by pressing the switch 1x and then holding it for 7-seconds.

    D2 COOLING MODE DIAGRAM
    SVALT D2 High-Performance Cooling Dock User’s Guide Cooling Mode Diagram

    Back to top of tab
  • D1 FAN SPECS
    Red, 1700 RPM fixed speed, 12V, and long life ball bearing with approximately eight years of continuous operation (70,000 hours at 40C).

    D2 FAN SPECS
    Black, 900 to 3600 RPM variable speed, 12V, and long life ball bearing with approximately eight years of continuous operation (70,000 hours at 40C).

    POWER SUPPLY SPECS
    100-240V AC input and 12V output with one of the following fixed or replaceable outlet plugs: Type A (USA, Canada, Mexico, Japan), Type C (Europe, South America, Asia), Type G (United Kingdom, Ireland), or Type I (Australia, New Zealand, China).
    A Replacement Power Supply is available to purchase separately.

    ALUMINUM FINISH SPECS

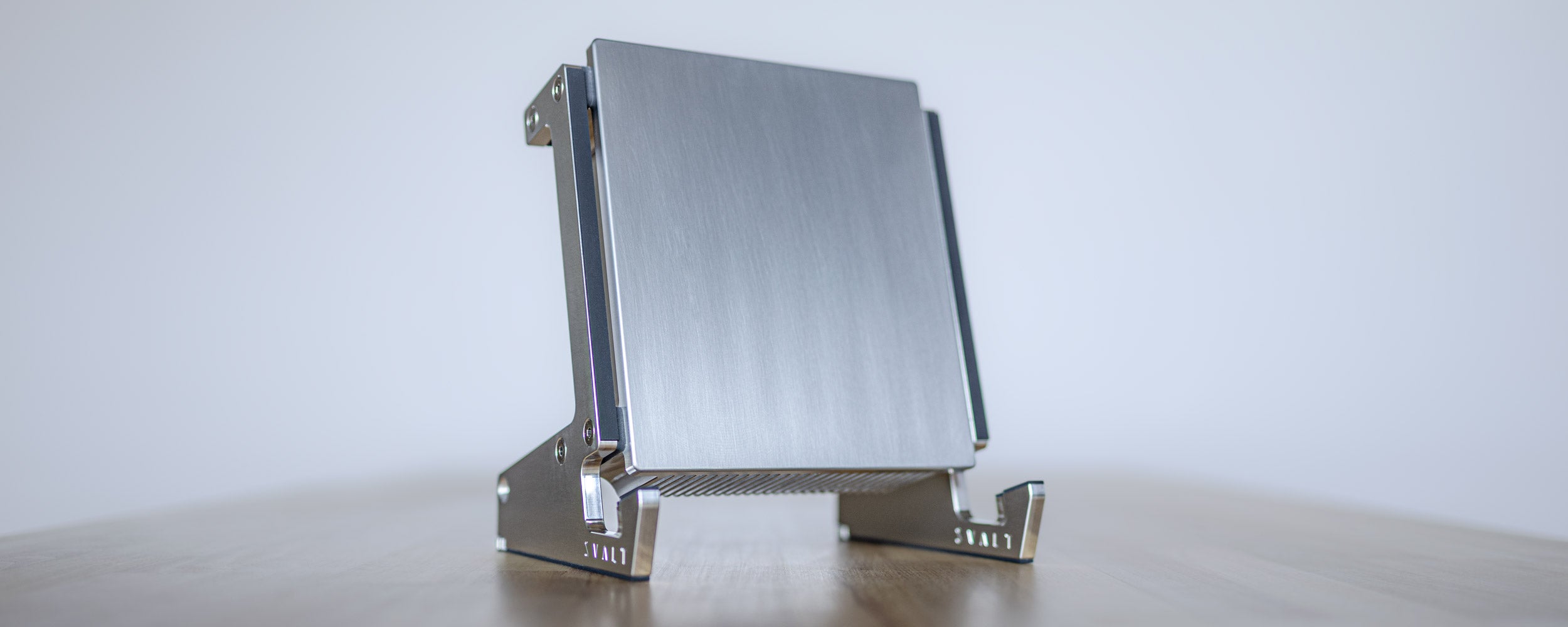

    The dock’s aluminum cradle comes with a high-end aluminum anodized finish, which is a custom finishing process that may include some color variation between parts. The bottom surface of product is considered non-cosmetic finish and includes two #10-24 threaded holes that can be used for mounting the dock in a fixed position if desired.

    PACKAGE CONTENTS
    • Reusable product box
    • SVALT D1 or D2
    • Power supply
    • Cable management strap
    • Hex drive for sliding pad

    DIMENSIONS AND WEIGHTS
    • Shipping Package Dimensions: 8.0” wide x 8.0” deep x 8.0” tall.
    • Shipping Package Weight (US power): 3.2 pounds.
    • Product Package Dimensions: 6.2” wide x 5.5” deep x 5.4” tall.
    • Product Package Weight (US power): 2.8 pounds.
    • Product Dimensions: 4.8” wide x 4.1” deep x 4.1” tall.
    • Product Weight: 2.1 pounds.

    Back to top of tab
  • ORDERS & SHIPPING
    • Free UPS Ground shipping for Continental US orders.
    • Discounted DHL Express shipping for International orders.
    • 30-day returns and 1-year limited warranty for US customers.
    • SVALT is an Oregon company and does not collect sales taxes.
    • See  Policy page for details.
