New 2026 Release: Mx Product Line

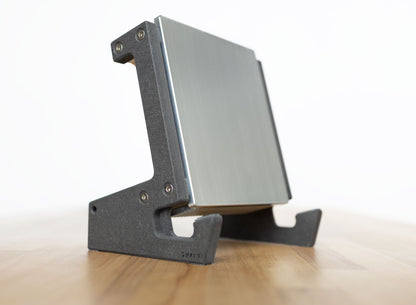

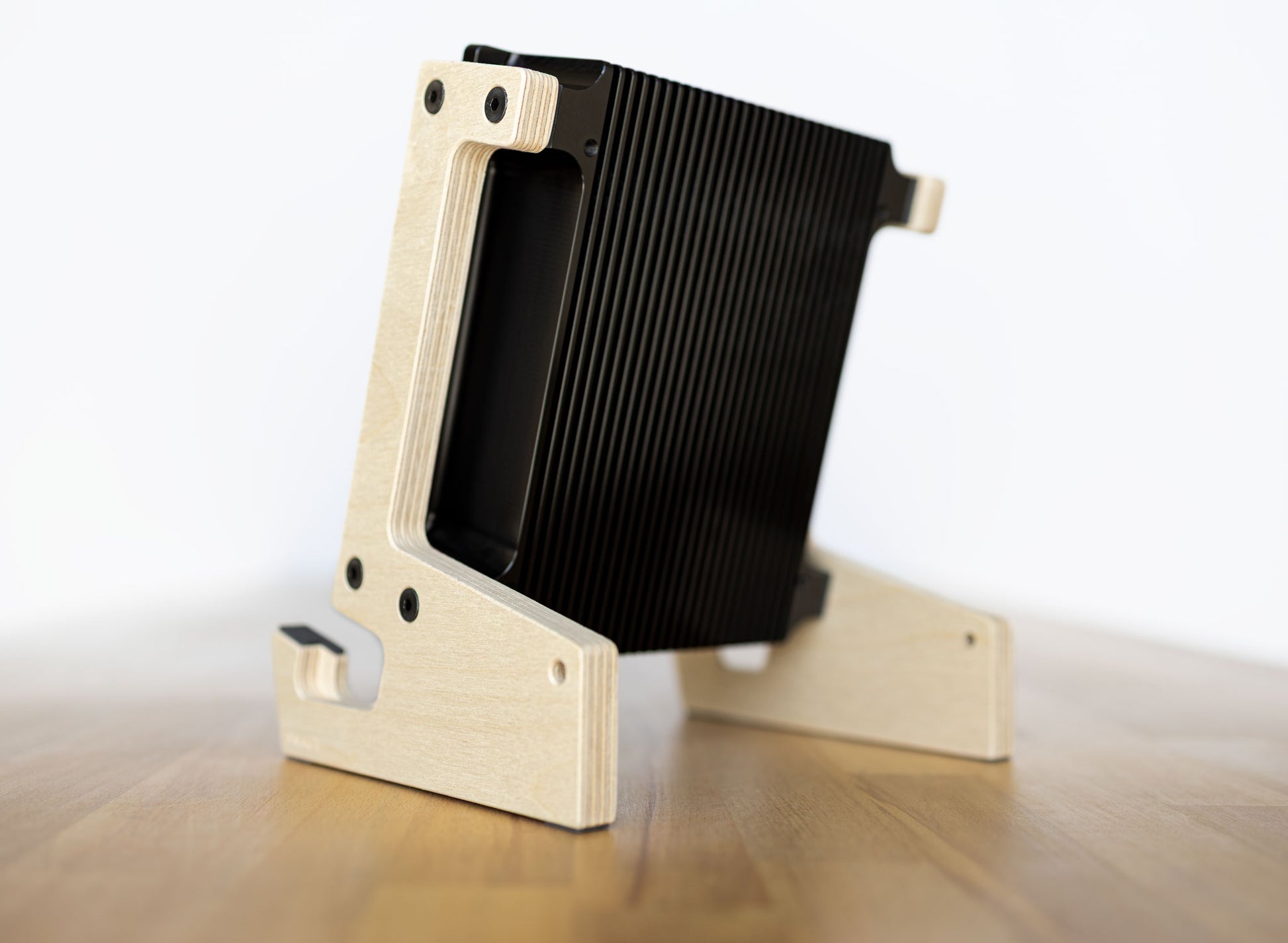

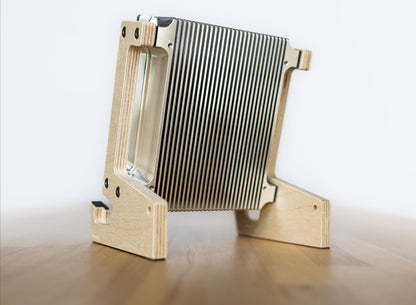

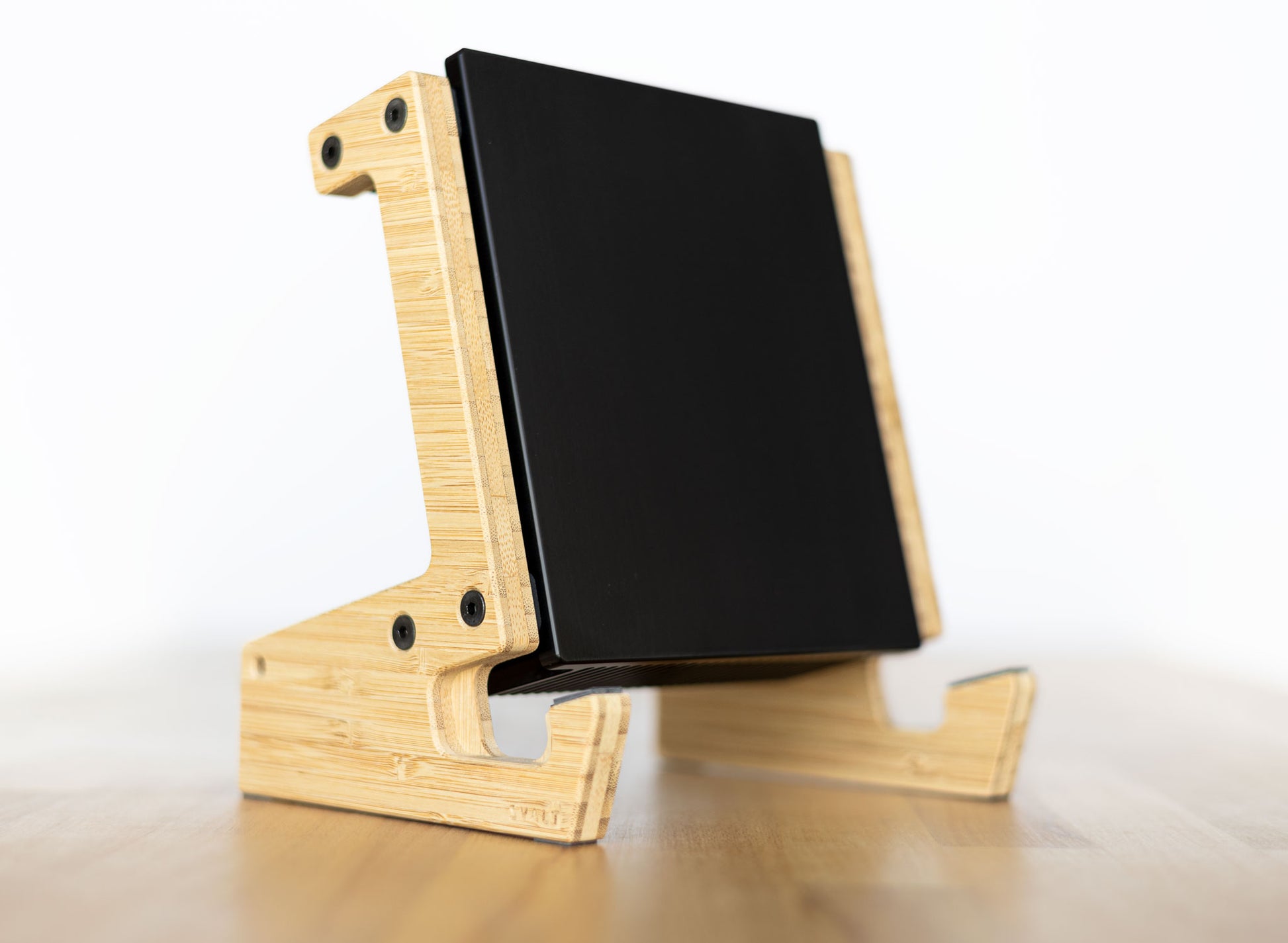

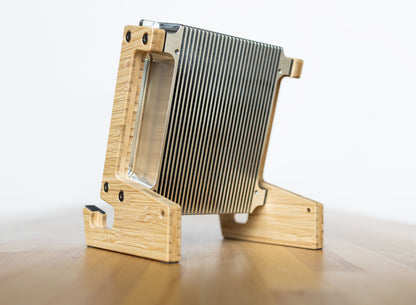

Cooling Dock MxDW2

Cooling Dock MxDW2

Selected build SKU:

Mx-DW2-BLK-RAW

Selected build availability:

Pre-order 30+ days

Selected build price:

$389.00 USD
$299.00 USD $389.00 USD
* Sold out

Learn about build & order details:

View full details

Features

Heatsink Cooling

HEATSINK COOLING FEATURES

rendering showing front and back views of the MxDW2
Silent Heatsink Cooling
The Mx modular system is built around a massive thermally conductive heatsink carved from solid aluminum with an extensive array of ultra-thin cooling fins for extreme levels of silent cooling.


rendering showing Mx heatsink with grayed out MxDW2 and 14-inch MacBook Pro
Heatsink Mass
The Mx modular system is built around a massive thermally conductive heatsink dedicated to extreme silent cooling capabilities. The heatsink is 6.8 inch long x 6.0 inch wide x 1.9 inch deep and weighs 4 pounds. The heatsink is so massive that it increases the MacBook Pro’s bottom surface area by up to 639% and MacBook Air’s bottom surface area by up to 679% to help silently unlock peak performance potential.


rendering showing top view of Mx heatsink
Heatsink Coupling
The entire top surface of the massive heatsink provides unrestricted conductive heat transfer at the laptop processor location for more efficient heat extraction. The heatsink’s coupling plate is specially prepared with a fine hand sanded and polished finish to produce an extra-flat and extra-smooth surface for improved conductive heat transfer. The coupling plate edges and corners have been rounded for laptop setup. The coupling plate’s refined design, manufacturing and finishing allows the Mx heatsink to avoid the use of a “protective film coupling” configuration that significantly reduced cooling on prior heatsink models.


rendering showing bottom view of Mx heatsink
Heatsink Heat Flow
The heat extracted from the laptop flows efficiently through the heatsink’s 4 pounds of thermal mass milled from a solid block of 6061 aerospace grade aluminum material. The heat flows uninterrupted into an extensive array of 28 cooling fins that are an incredibly 0.080 inches thin for accelerated heat removal through the heatsink’s 709 square inches of overall surface area. The Mx heatsink has up to 579% more cooling fin surface area than prior generations of the DHCR Cooling Docks.


rendering showing bottom view of Mx heatsink with airflow arrows
Heatsink Heat Removal
The cooling fins and cooling air channels run continuously from front-to-back with an upward angle to generate passive cooling air currents through the entire heatsink. Open space in front and under the heatsink supplies cool air for more effective silent passive cooling, as well as open space for fan driven active airflows. In order to increase the heatsink’s silent cooling capabilities, the finish is available with a new deep matte black anodize specially developed to improve surface emissivity and radiant cooling.


rendering showing MxDW2 from below
Heatsink Supports
The heatsink’s side support mounting points use 0.125 inch extra-thick pads to create an air gap between the heatsink and side supports. This air gap allows for open cooling airflow around the sides of the heatsink. The air gap and extra-thick pads work together to provide thermal separation between the heatsink, side supports, and exposure to hot exhaust airflows.


Fan Cooling

FAN COOLING FEATURES

rendering showing MxDW2 with 140mm and 80mm fans
Active Airflow Fan Cooling
The Mx heatsink has been designed for radical active airflow cooling capabilities from a variety of high-quality and ultra-quiet fan systems, including enormous 140mm Noctua fans.


rendering showing back view of 140mm fan with grayed out MxDW2 and 14-inch MacBook Pro
Maximum Performance
The Mx product line has been designed for extreme levels of silent heatsink cooling, as well as fan driven active airflow to boost the already remarkable levels of heatsink cooling with minimal noise. In addition to boosting heatsink cooling, the fan driven active airflows also flush out hot air from around the heatsink and laptop to help maintain ideal cooling conditions.


rendering showing back view of 140mm fan with grayed out MxDW2
140mm Fan Cooling
The extra-large 140mm fan bolts directly onto the heatsink for efficient and quiet heatsink cooling. The 140mm fan's larger size generates less noise for a given amount of airflow. The 140mm fan's larger size spans the full width of the heatsink and nearly spans the full length, which moves more cooling air over/through the heatsink cooling fins and removes more heat from the heatsink.

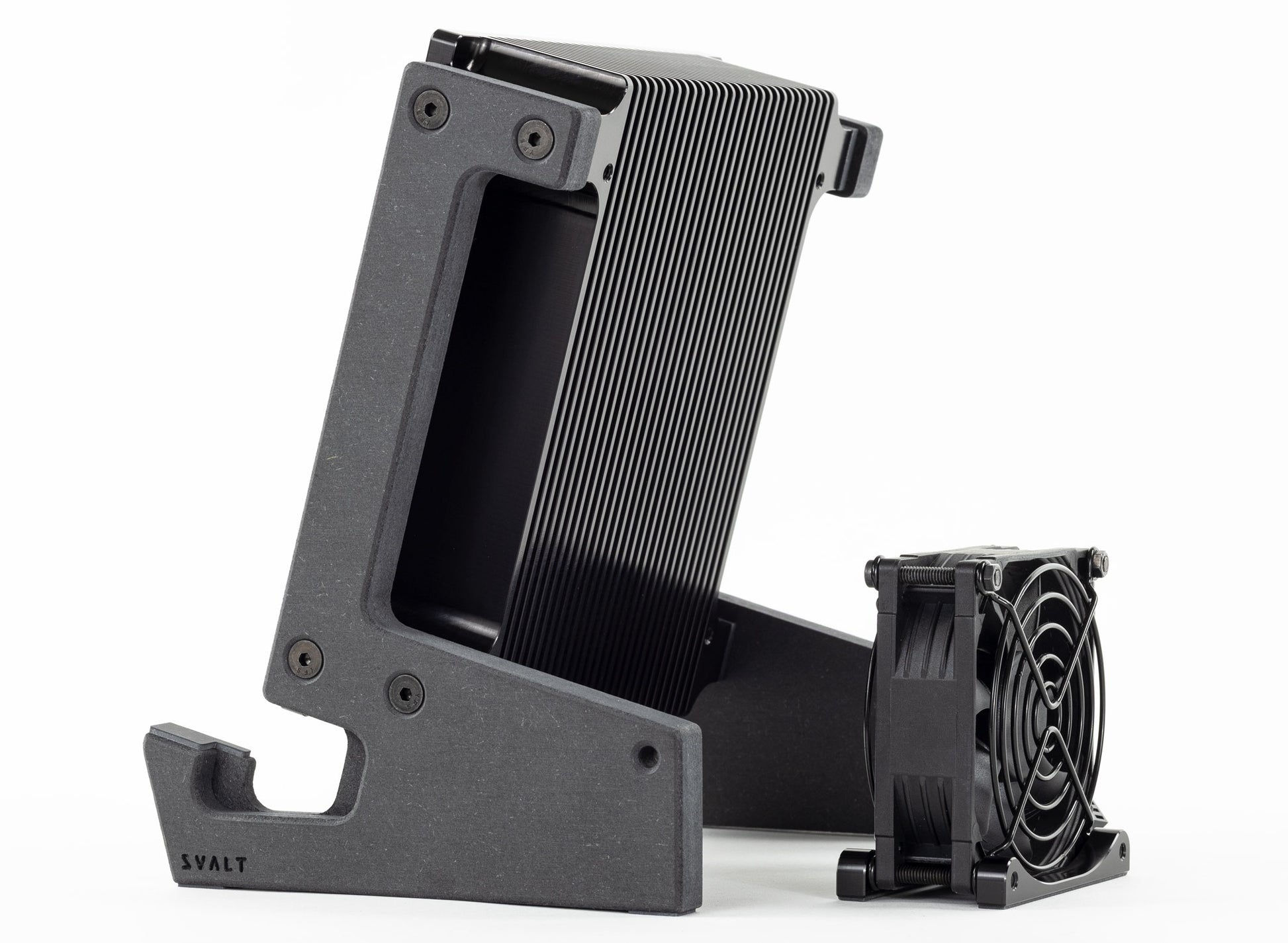

rendering showing back view of 80mm fan with grayed out MxDW2
80mm Fan Cooling
The 80mm fan sits behind the heatsink while the dock supports position the 2021+ MacBook Pros and other laptops with a center intake vent along the back/hinge edge so that the 80mm fan can simultaneously cool the heatsink, flush out hot air, and drive cool air into the laptop for direct internal processor cooling.


rendering showing exploded view of Fx 80mm fan and Mx 140mm fan with Mx heatsink
High-Quality Right-to-Repair Modular Fans
When the Mx heatsink is paired with the dock supports, then customers can choose from a number of 140mm, 80mm and a combination of both 140mm + 80mm fan cooling systems. Fan systems are available with high-end and long-life Noctua fans, and with Noctua’s adjustable speed controller. See fan technical specifications to learn more.

Fan systems use an external outlet power supply for optimal fan operation that avoids pulling power from the laptop system that would increase internal laptop temperatures and contribute to processor power throttling.

All Mx fan cooling systems offer unmatched levels of modularity and right-to-repairability for fan and electrical component installation, upgrades and servicing. The aluminum Mx heatsink includes 8-32 threaded holes for standard 140mm fans, while the aluminum Fx supports include 8-32 holes and threading for standard 80mm fans. The electrical components use standard 2/3/4-pin fan connectors and 2.5mm power connectors for easy interchangeability and upgradability.


Laptop Cooling

LAPTOP COOLING FEATURES

rendering showing MxDW2 with 14-inch MacBook Pro
Clamshell Laptop Cooling
The new second generation Mx dock supports have been revised for improved clamshell cooling capabilities with larger openings and a higher laptop position to maximize cooling performance and precise fit with the latest MacBook Pro and MacBook Air laptops, as well as compatibility with all recent Apple laptops, many PC laptops and other devices.

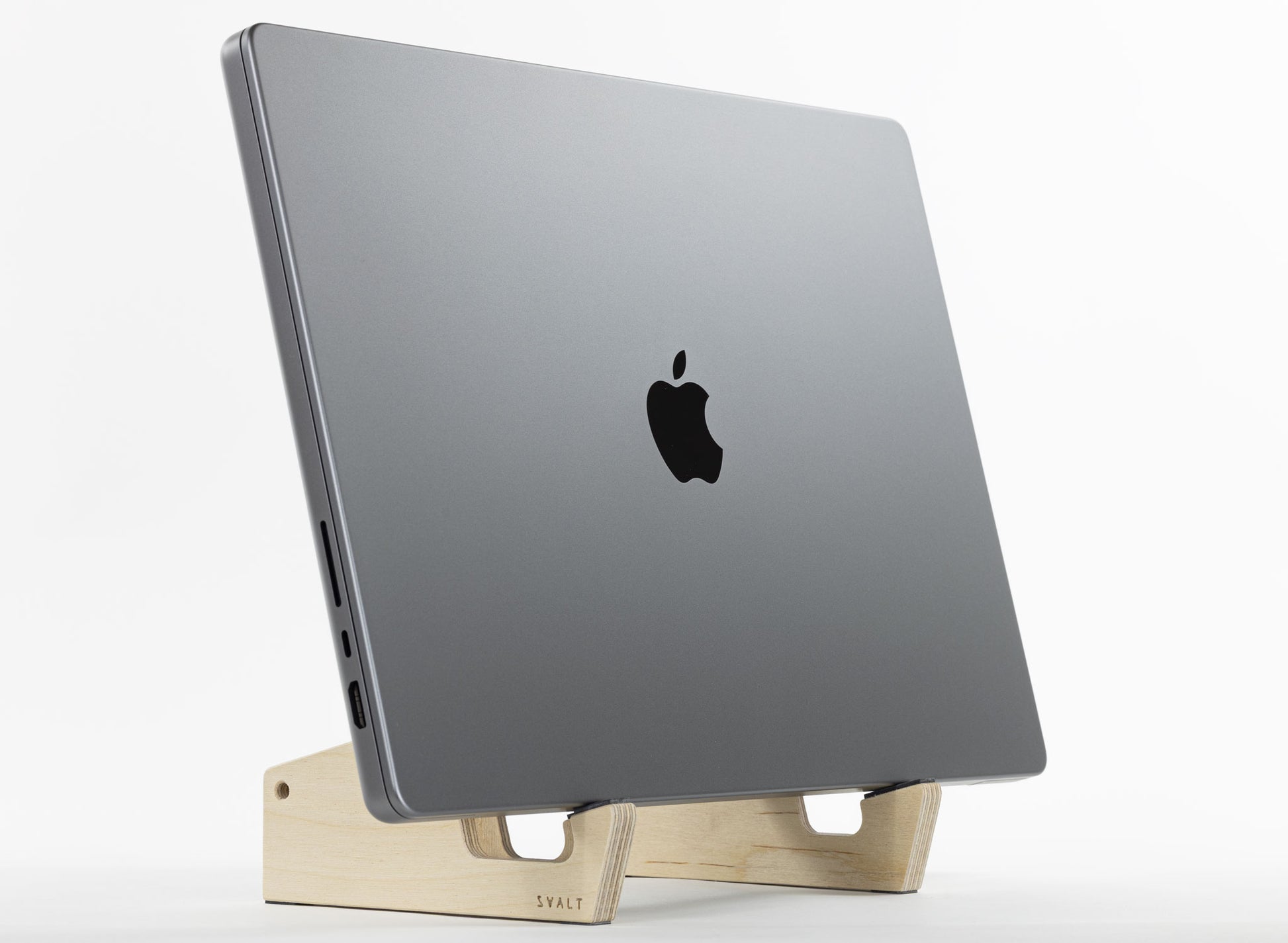

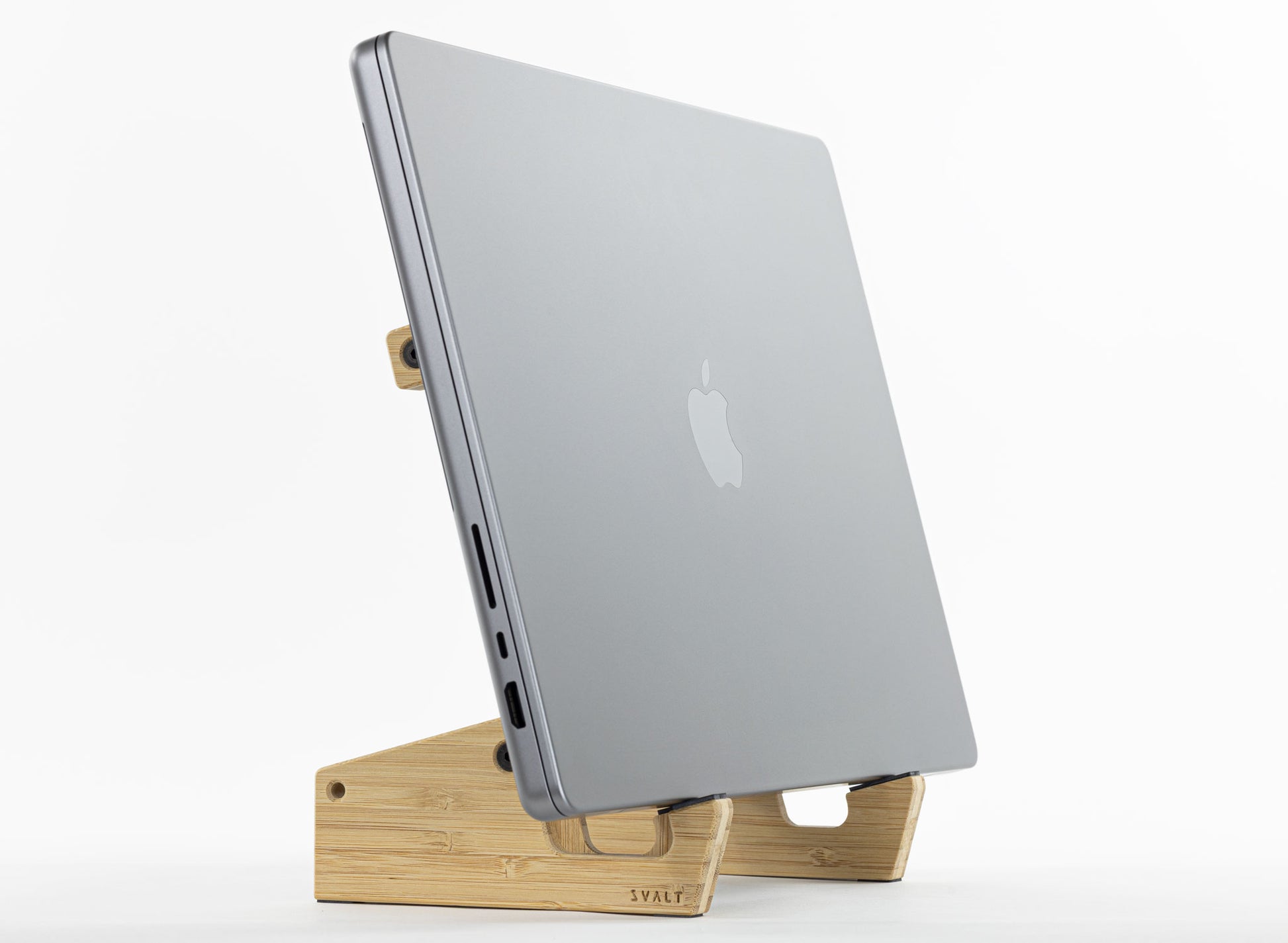

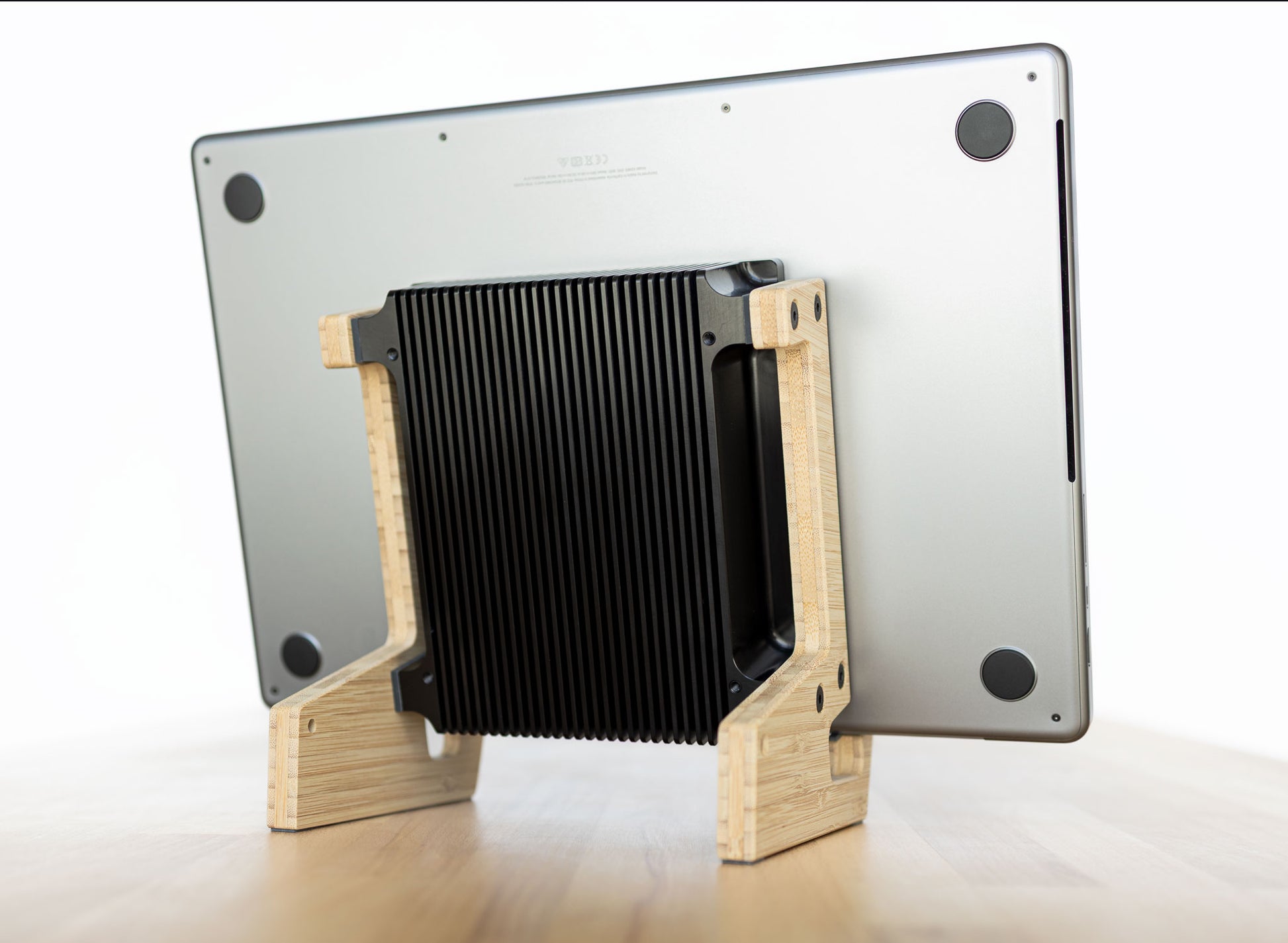

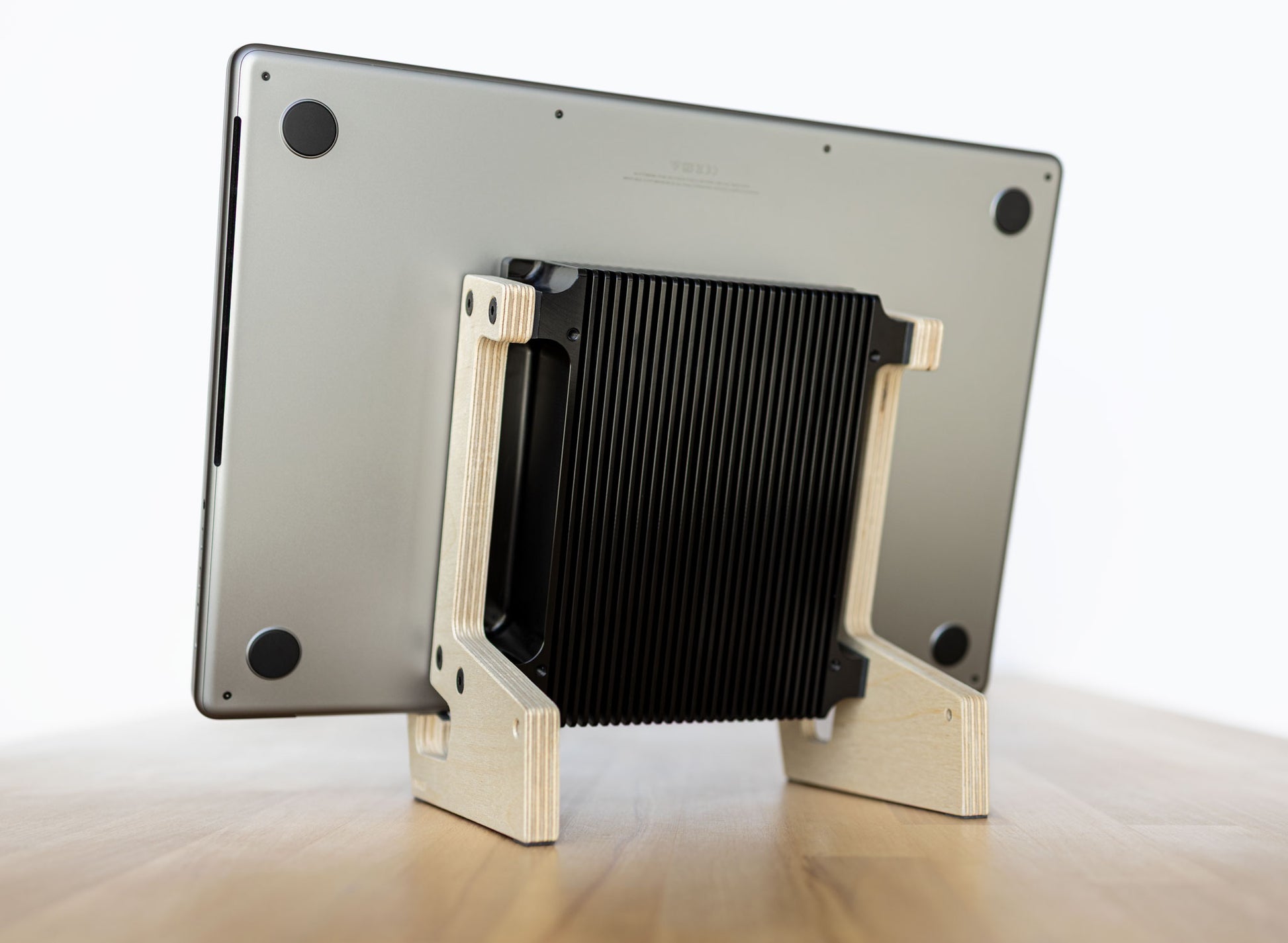

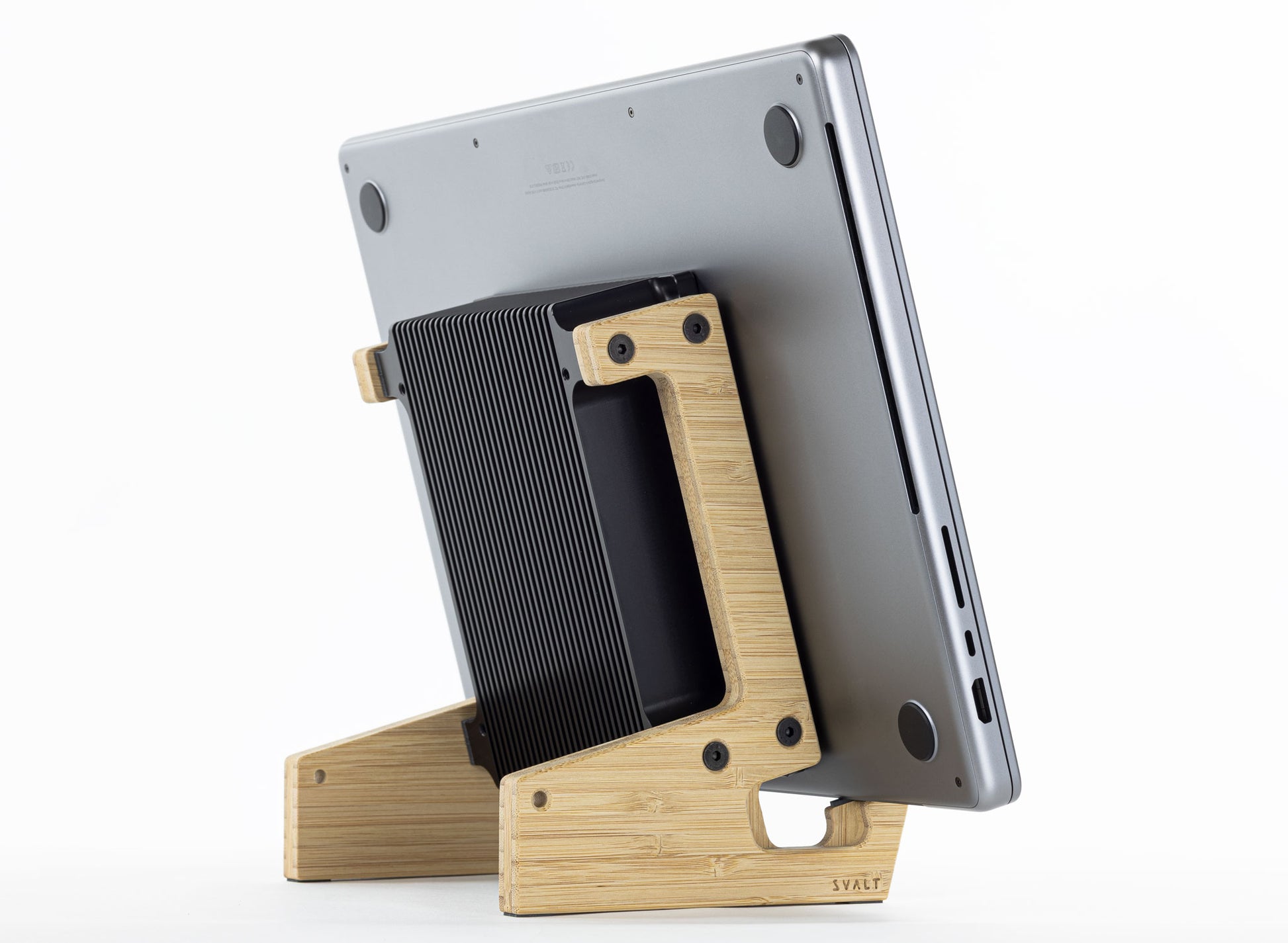

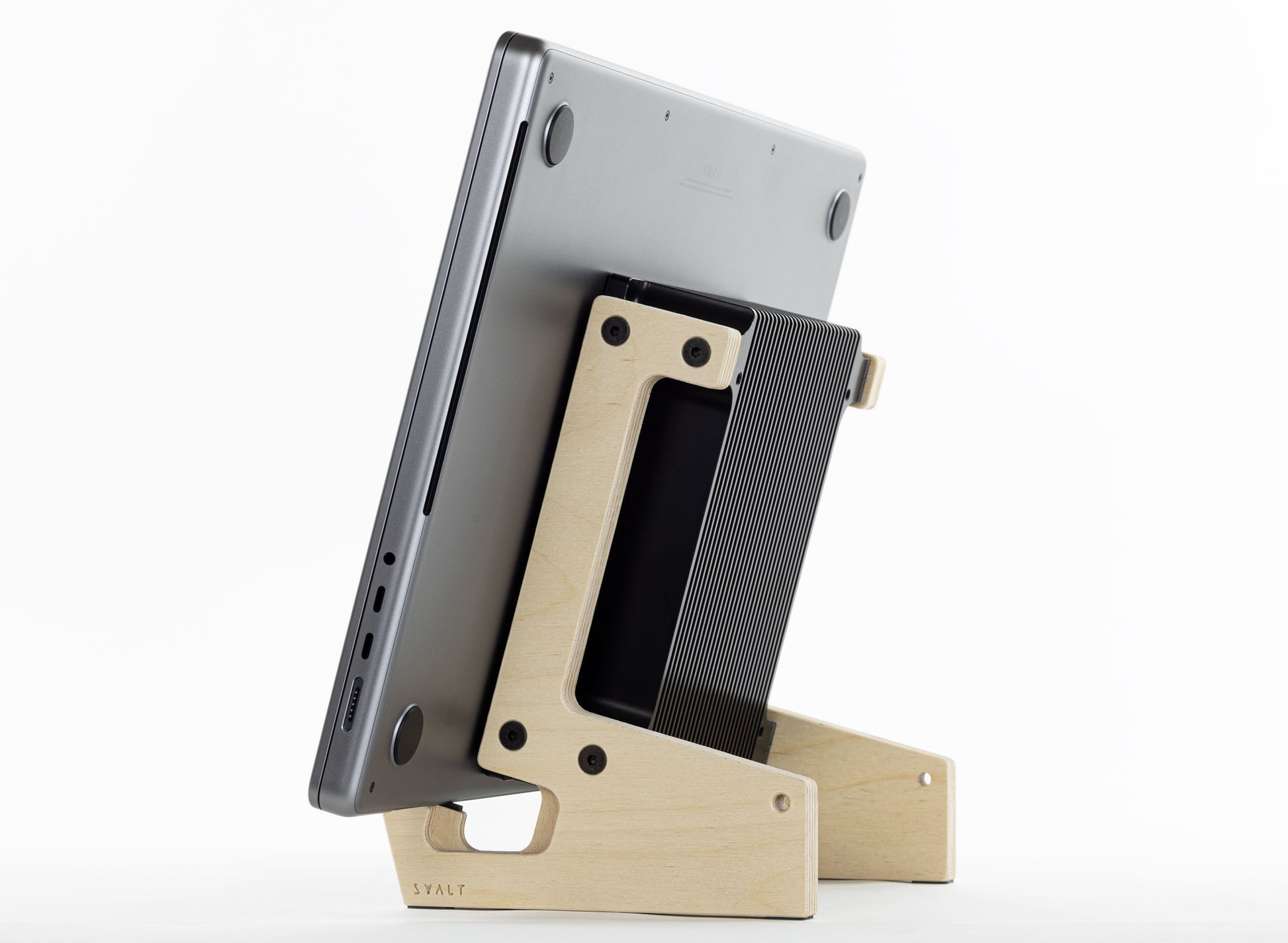

rendering showing MxDW2 with 16-inch MacBook Pro
Clamshell Laptop Heatsink
The dock supports and heatsink have been designed for seamless integration and optimal performance with the latest generations of 2021+ MacBook Pro laptops.
  • The heatsink’s width, length and cutouts are precisely designed for optimal cooling and optimal airflows with MacBook Pro’s built-in venting and cooling systems.

  • The heatsink’s array of 28 cooling fins and air channels match the MacBook Pro’s processor location and built-in cooling system layout for improved heatsink cooling performance.

  • The heatsink’s corner cutouts align with MacBook Pro vents for reduced heat gain and improved cooling performance.

  • The heatsink’s center cutout aligns with new second generation dock upper cutouts for improved passive and active cooling airflows around the heatsink.

  • The heatsink coupling plate’s length and width provide optimal MacBook Pro heat extraction, along with stable laptop support.

  • The heatsink’s mass is positioned for alignment with the MacBook Pro’s processor location.

  • The dock supports use a leaning clamshell configuration instead of a straight vertical configuration to maintain contact pressure on the heatsink’s thermally conductive coupling plate for improved heat transfer.


rendering showing MxDW2 from below with 16-inch MacBook Pro
multiple renderings showing closeup details of the MxDW2 with 16-inch MacBook Pro
Clamshell Laptop Exhaust
The dock supports include a number of innovative cooling design features to improve the MacBook Pro’s built-in venting airflows when operating in closed-screen clamshell mode. The new second generation docks have further refined and improved these cooling design features to push the design towards even higher cooling capabilities.
  • The lower support cutout located behind the padded laptop support shelf has been enlarged for improved airflows under and around the laptop and heatsink.

  • The laptop and heatsink have been raised to a higher position above the desk surface for improved airflows under and around the laptop and heatsink.


rendering showing MxDW2 with 16-inch MacBook Pro and vent airflows
Clamshell Laptop Intake
Apple included the center intake vent in the 2021+ MacBook Pro to improve cooling over the prior 2016 generation. This center intake vent is located along the bottom hinge. It is designed to pull in cold air past the processor for direct air cooling. The dock supports place the intake down for optimal cooling design.
  • Places the intake vent down where the cool air falls and collects, so the intake can pull cold air instead of exhaust hot air.

  • Places the intake vent and processor down in the cool air instead of up where the hot air rises and accumulates.


renderings showing sections through the MxDW2 with fans and the 16-inch MacBook Pro
Clamshell Laptop Fans
The dock supports use a leaning clamshell configuration with the laptop’s center cold air intake down for optimal fan cooling design.
  • The dock design directs 140mm and 80mm fan airflows to flush out hot and drive cooling airflow towards the laptop’s cold intake.

  • The dock design works with the 80mm fan to drive cooling airflow into the laptop’s intake vent to directly cool the processor.

  • The dock design works with the simultaneous use of both the 140mm and 80mm fans.

  • The new second generation dock supports raise the laptop and heatsink higher for improved fan cooling airflows.


rendering showing MxDW2 with 13-inch MacBook Air
rendering showing MxDW2 with 140mm fan and 13-inch MacBook Air
Clamshell for MacBook Air
The dock passive airflows and active fan airflows around the heatsink and laptop benefit both the MacBook Pro with a built-in fan cooling system and laptops that lack a built-in fan cooling system, such as the MacBook Air. The massive heatsink is ideally paired with the enormous 140mm fan to generate extreme cooling capabilities for professional and high-demand MacBook Air users.


diagram showing MxDW2 with different laptop sizes
Extensive Compatibility
The dock supports use a leaning laptop position instead of a straight vertical position to maintain contact pressure on the heatsink’s thermally conductive coupling plate for improved heat transfer, and for easier clamshell mode setup. The leaning position also helps to accommodate a wider range of laptop models and sizes, as well as tablets and other devices. See the compatibility technical specifications to learn more.


Workstations

WORKSTATION FEATURES

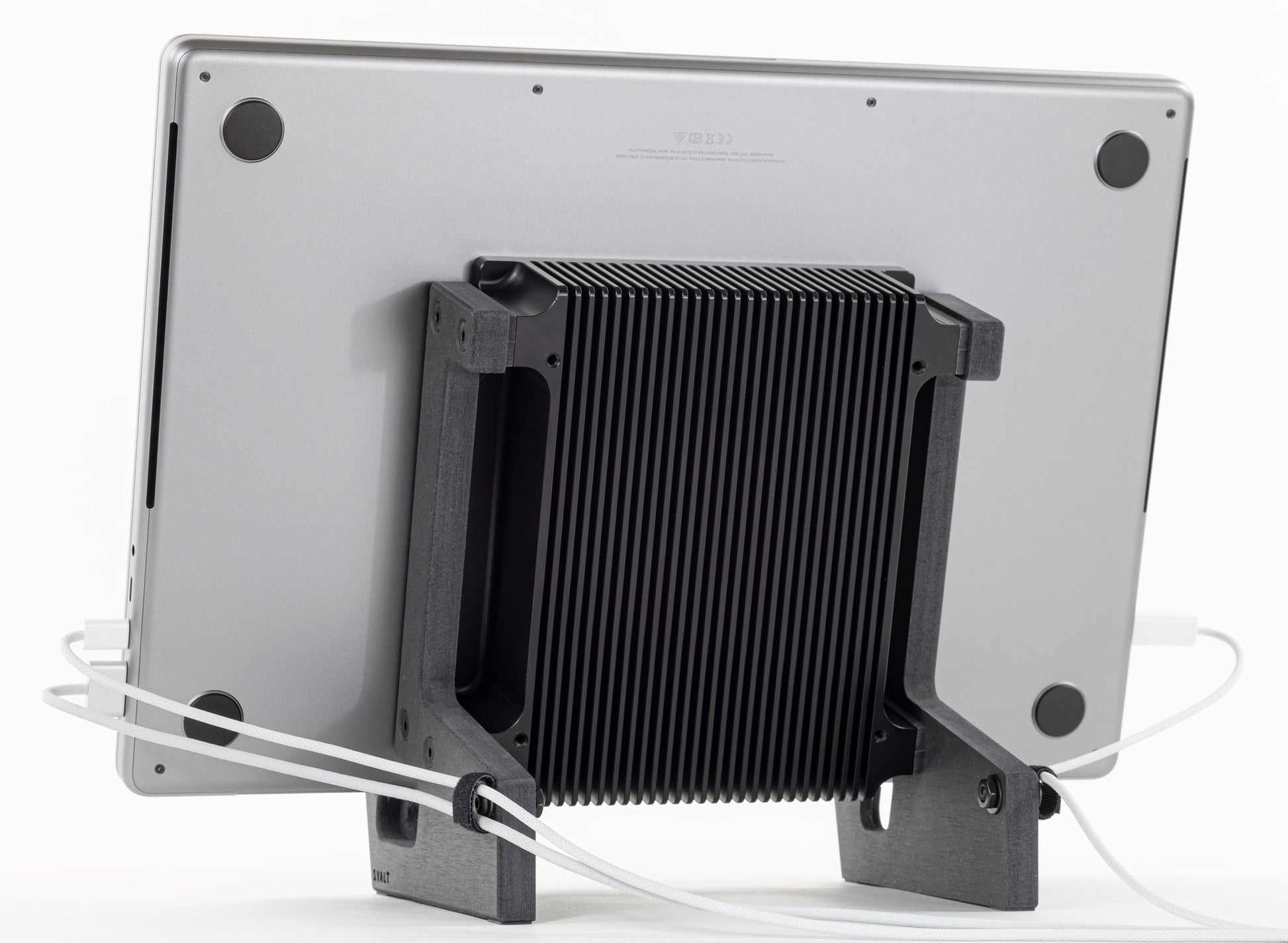

rendering showing MxDW2 with cable management straps, 14-inch MacBook Pro, external display, and external keyboard
Productive Workstations
The Mx product line includes an extensive set of innovative workstation features, such as leaning clamshell mode, dual cable straps for quicker setup and hidden cable clutter, as well as heavy-duty construction, over-sized bolted connections and uneven surface leveling to create a robust build with rock-solid laptop stability.


rendering showing MxDW2 with outlines of laptop, display and keyboard
Refined Workstations
The dock supports position the laptop upright in a leaning position for closed-screen clamshell mode operation. Clamshell mode reduces wear on the laptop’s built-in components and provides a more compact workstation setup. Clamshell mode also helps to setup a more ergonomic workstation with external monitor, keyboard and mouse / trackpad.


rendering showing MxDW2 with 14-inch MacBook Pro lid opening
Clamshell Workstations
The dock supports use an innovative leaning position that allows for easier clamshell mode setup and operation compared to a straight vertical position. With the dock supports, the laptop screen easily opens to initiate laptop startup or to access the laptop’s power / Touch ID button while the laptop remains securely resting on the dock’s padded supports and while the laptop remains connected to the required external monitor, keyboard mouse/trackpad and power supply cables. The leaning position provides an easier and quicker clamshell mode setup compared to the straight vertical position that requires the laptop to be picked up while precariously balanced in hand with cables connected to the laptop.

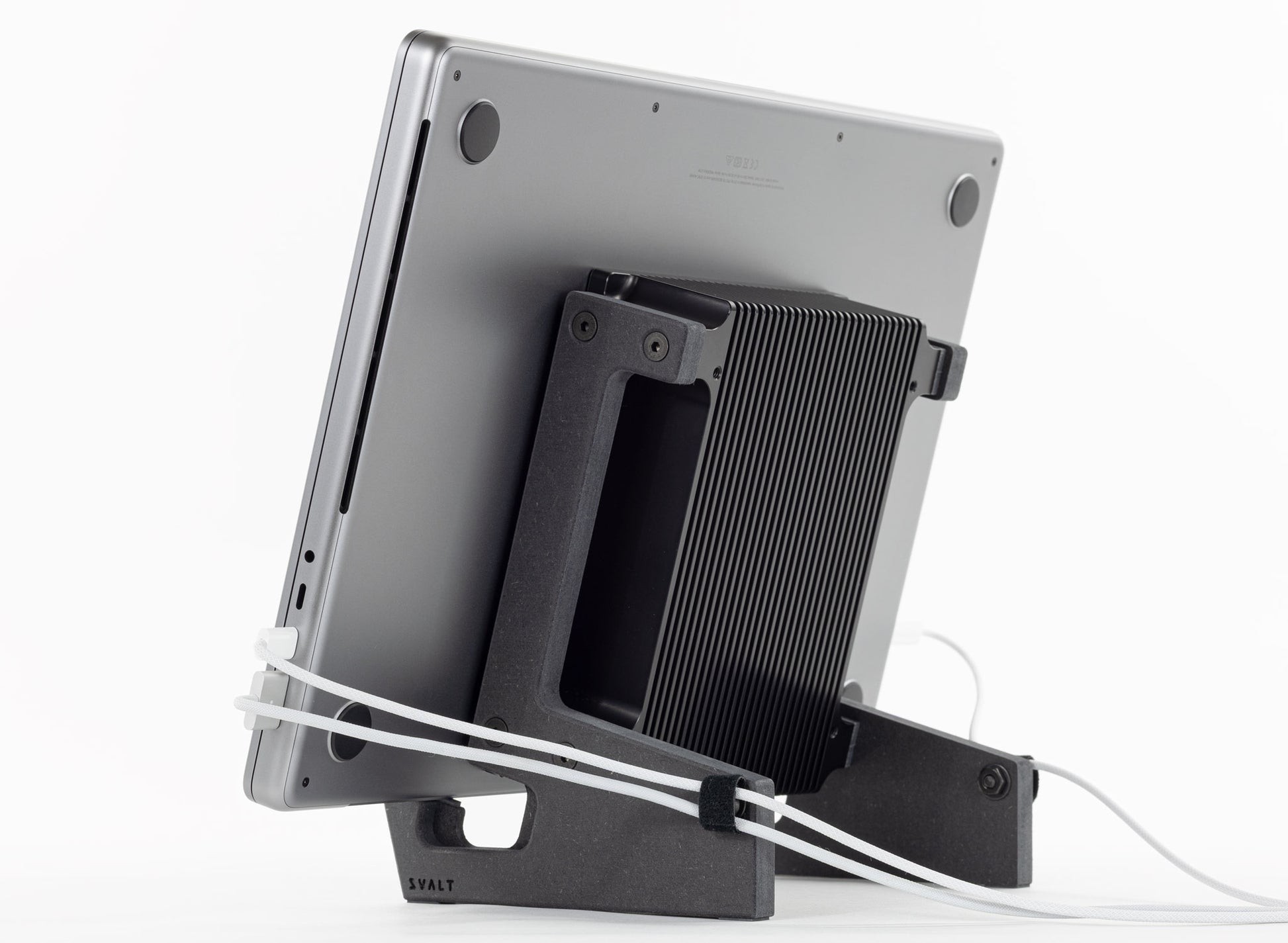

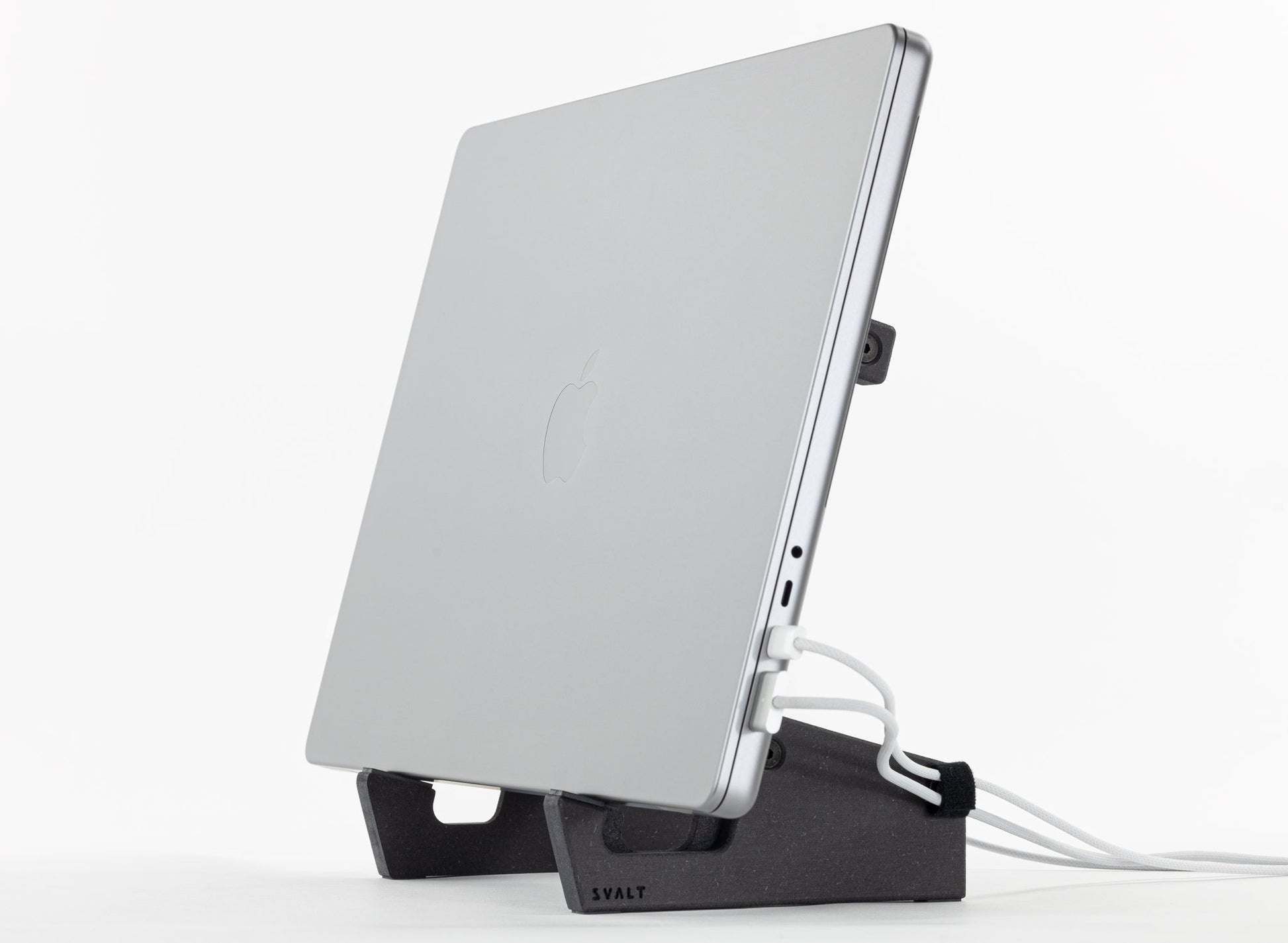

rendering showing MxDW2 with 14-inch MacBook Pro and cable management
De-Cluttered Workstations
The Mx product line helps to create a more compact, refined and productive workstation with reduced laptop footprint and with managed cable clutter. The Mx includes three sets of cable straps and mounting hardware, providing one for each side and an extra replacement set. The straps are positioned to manage and hide cable clutter behind the laptop. The straps hold cables in place for easier and quicker subsequent laptop setups. The straps are adaptable and replaceable, and can accommodate most any size of bundled cables.


rendering showing MxDW2 with leveling pads
Solid Workstations
The Mx uses a heatsink milled from solid aluminum and supports milled from solid engineered lumber, which are bolted together with eight large fasteners to create an incredibly strong and rigid laptop support system. Designed to support many hundreds of pounds, the Mx can easily support the heaviest of laptops, and will not flex or bounce even while supporting the heaviest of laptops. The Mx’s extra heavy duty construction not only results in robust strength, but also weighs up to 5 pounds. This solid and heavy structure uses industrial grade non-slide pads to create a rock solid laptop support. To ensure the Mx’s remains rock solid on uneven surfaces, wood dock supports include multiple shim pads of different thickness to help level uneven surfaces.


rendering showing MxDW2 with 14-inch MacBook Pro, display and keyboard
Stable Workstations
The Mx dock’s leaning laptop support with easy clamshell setup is inherently more stable than a straight up vertical laptop support. The Mx docks increase laptop stability with support legs that extend backwards preventing tip over and with the massive heatsink’s 4 pounds of central mass that resists tipping over.


Modularity

MODULARITY FEATURES

rendering showing exploded MxDW2 modular components
Full Modularity
The Mx offers a remarkable degree of modular system flexibility with hundreds of different configurations to create a customer’s ideal workstation setup. The modular Mx system was designed to endure through high-quality materials, high-end components and bolt / snap assemblies with right-to-repair tools included to service and upgrade components.


rendering showing exploded Mx product line modular components
Product Modularity
The Mx modular heatsink cooling system was created for extreme levels of cooling performance as well as extreme levels of workstation reconfiguration flexibility. Built around the massive heatsink, customers can easily change out supports to meet different workstation setup requirements or aesthetic preferences, all without compromising the heatsink’s cooling capabilities.

The Mx modular heatsink cooling system is available with multiple different models and over a hundred possible order configurations to help customers create their ultimate high-performance laptop workstation. The Mx product line uses three different side support types to place the heatsink and laptop in different positions, which allows customers to select a configuration that best meets their workstation setup and ergonomic requirements. Each type of side support is available with a variety of different materials, colors and finishes, which allows customers to select a configuration that best meets their workstation aesthetic preferences.

The modular system allows customers to reconfigure their Mx product as needed to meet future workstation requirements and preferences. The modular system also allows SVALT to continuously release new modular components to accommodate new laptop models and offer customers new configuration options. This incredible level of modular flexibility allows the product to adapt and to endure, which is key to sustainability.


rendering showing exploded Mx packaging modular components
Package Modularity
The Mx product line’s modularity extends to the packaging system that uses a single 12x12 modular exterior cardboard box, 12x12 modular cardboard insert layers and heavy duty bolted connections for increased protection, durability and sustainability. The bolted assembly protects components from contact with one another and holds the components away from external impacts.


diagram showing all Mx products
Right-to-Repair Modularity
The Mx product line uses a right-to-repair modular system that is designed to endure, and ships with all of the tools required for disassembly to clean, service, replace, upgrade or otherwise exercise right-to-repair usage. This ability to adapt and to endure is core to sustainability.

The Mx’s modular components are made of high-quality materials, such as anodized 6061-T6 aluminum and high-grade engineered woods, which are oversized for added strength and longer life span. Component connections use extra-large fasteners for increased strength and increased durability over repeated reconnections.

The Mx product line was designed for silent heatsink cooling without the need for electric power, however, the Mx was also designed for use with a fan cooling system. Mx models can be configured with a variety of modular right-to-repair fan systems, or customers can provide their own DIY fan system. Each Mx fan system uses high-end fans with long life bearings, standard available fan sizes, standard bolted assemblies, and standard snap connectors for modular power, on/off and speed-control components.


Sustainability

SUSTAINABILITY FEATURES

rendering showing exploded Mx2 modular components
Integral Sustainability

Sustainability is foundational to the Mx product line with a modular system that extends product service life and customer value. For end-of-life recyclability and biodegradability, the Mx uses metal/wood product construction and paper-based packaging, both with minimal plastic. As with all SVALT products, the Mx is made locally in the Pacific Northwest with care and a focus on sustainability, produced in small batches, and hand built to customer configurations.

Material Sustainability

The Mx modular product line and packaging system are physical objects that represent SVALT’s dedication to sustainability. The Mx’s modularity was designed for increased durability, flexibility and adaptability to changing customer needs, extended material and product life cycle, and then as close as possible to full recyclability and/or biodegradability at the end-of-life cycle.

The Mx heatsink and aluminum supports are made of anodized aluminum with metal bolted connections, and intentionally minimizes the use of plastics. Aluminum and metal are considered to be among the most commonly and easily recycled materials.

The Mx wood supports are available in a variety of engineered plant-based materials with increased strength, stability and more efficient use of resources. Bamboo is a strong, durable, fast-growing, rapidly-renewable and biodegradable material that is considered a more environmentally friendly and sustainable alternative to traditional hardwoods. Black-core fiber is made from 89% renewable and 100% recovered wood fiber.

The Mx modular packaging system is made primarily from cardboard, as well as other paper/plant/fiber based materials that include a varying degree of recycled content. Cardboard/paper/plant/fiber based materials are considered biodegradable, and are considered commonly and easily recycled materials.

The Mx packaging system effectively and efficiently protects products through shipping and for reuse as storage without plastic based materials. A single cardboard box serves as both the product and shipping box, thus eliminating the additional waste of having a separate outer shipping box with additional interior volume fill and cushioning. Modular interior cardboard inserts, boxes and paper envelopes secure components. A paper-based tape with recyclable reinforcement is used throughout the packaging instead of plastic tape.

Company Sustainability

The 2025 release of the Mx product line corresponds with SVALT’s ten year anniversary of its first product release at the January 2015 Las Vegas Consumer Electronics Show (CES). The Mx is the culmination of a decade of industry leading product design and research, and represents the pinnacle of laptop cooling, high-performance laptop workstations and sustainability.

For the Mx, sustainability wasn’t included as an afterthought and isn’t superficially applied branding. Sustainability is an integral and foundational aspect of the entire Mx product line designed from the ground up as a fully modular right-to-repair system. Every aspect of the innovative modular design, high-quality materials, high-end components, reusable cardboard packaging and bolt / snap assembly prioritizes the product’s ability to endure and adapt in order to extend usefulness as far into the future as possible, and when a part or product’s life cycle came to an end, it was designed for recyclability and/or biodegradability.

As with all SVALT products, the Mx is a unique, first-of-kind, best-in-class, and patented/patent pending product. SVALT products are more than engineered solutions, they are objects of substance without distracting noise and flashy gimmicks. Made locally in the Pacific Northwest with care and a focus on sustainability, SVALT products are produced in small batches and hand built to customer order configurations.


Specifications

Dimensions

DIMENSIONS SPECIFICATIONS

rendering showing multiple MxDW2 views
MxDW2 Cooling Dock
Mx Heatsink w/ Second Generation Wood Dock Supports
  • Product Side to Side: 7.2 inches.
  • Product Front to Back: 5.8 inches.
  • Product Top to Bottom: 8.2 inches.
  • Product Weight: ____ lbs, ____ lbs w/ 140mm fan, ____ lbs w/ 80mm fan, ____ lbs w/ 140mm and 80mm fans.
  • Shipping Weight: ____.


Contents

CONTENTS SPECIFICATIONS

diagram showing all available MxDW2 order configurations
Contents for All Configurations

1 x SVALT Thermally Conductive Heatsink for the Mx Modular Heatsink Cooling System. Available in raw aluminum or with a deep matte black anodize finish. Four side support mounting pads installed on heatsink.

2 x SVALT Second Generation Dock Wood Side Supports for the Mx Modular Heatsink Cooling System. A paired set of left and right sides. Black-core fiber, white hardwood or amber bamboo material. Non-slip pads installed on each side support. Note orders with support bundles include multiple sets of side supports.

8 x SVALT Leveling Pads and/or Replacement Pads for the Mx Wood Side Supports. Four 1/16” thick and four 1/32” thick.

9 x #10-32 1-inch long flat head hex drive fasteners for attaching side supports to heatsink. Configurations with black anodized heatsinks include black fasteners and configurations with raw aluminum heatsinks include stainless steel fasteners. (8 needed for installation plus 1 extra).

3 x #10-32 3/4-inch long black flat head hex drive fasteners for cable management assembly with wood side supports (1-2 needed for installation plus 1 extra).

3 x #10 black washers for cable management assembly (1-2 needed for installation plus 1 extra).

3 x #10-32 black nuts for cable management assembly (1-2 needed for installation plus 1 extra).

3 x 3-inch long and 1/2-inch wide hook and loop strips with hole in center for cable management assembly (1-2 needed for installation plus 1 extra).

1 x 1/8-inch hex wrench/key for attaching side supports to heatsink, and right-to-repair disassembly.

1 x Cloth for cleaning heatsink and laptop coupling surfaces.

Additional Contents for All Fan Cooling Systems

1 x Power adapter cable with 3/4-pin fan connecter at one end and 2.1m barrel power supply connecter at the other end. On/off switch built into the adapter.

1 x Power supply. Orders for North American include a 100-240V AC input and 12V output power supply with fixed Type A (USA, Canada, Mexico, Japan) plug, while international orders include interchangeable plugs with Type A (USA, Canada, Mexico, Japan), Type C (Europe, South America, Asia), Type G (United Kingdom, Ireland), and Type I (Australia, New Zealand, China).

Additional Contents for 140mm Fan Cooling Systems

1 x 140x140x25mm case fan per customer's selected order configuration. Installed onto heatsink.

1 x 140mm black metal fan grill / guards. Installed onto fan and heatsink.

4 x #8-32 1 1/4-inch long black fasteners. Installed onto fan and heatsink.

1 x 5/64-inch hex wrench/key for attaching fan to heatsink, and right-to-repair disassembly.

Additional Contents for 80mm Fx Fan Cooling Systems

2 x SVALT Fx Cooling Fan black anodized aluminum 80mm fan support feet with non-slip pads. Installed on Fx Cooling Fan.

1 x 80x80x25mm case fan per customer's selected order configuration. Installed on Fx Cooling Fan.

2 x 80mm black metal fan grill / guards. Installed on Fx Cooling Fan.

2 x #8-32 1 1/2-inch long black socket cap fasters. Installed on Fx Cooling Fan.

2 x #8-32 x 1 1/4-inch long black fasters. Installed on Fx Cooling Fan.

2 x #8 black nuts. Installed on Fx Cooling Fan.

1 x 9/64-inch hex wrench/key for right-to-repair Fx Cooling Fan disassembly.

Additional Contents for Adjustable-Speed Fan Cooling Systems

1 x Noctua NA-FC1 PWM dial-variable speed-controller.

1 x Noctua fan extension cable.

1 x Noctua fan 3-way splitter cable for dual 140mm and 80mm adjustable-speed configurations.

1 x Noctua fan power supply adapter for optional customer DIY setups.

Packaging System Contents for All Configurations

2 x SVALT folded cardboard packaging insert bolted onto each side of heatsink.

2 x SVALT flat cardboard packaging insert bolted onto pair of side supports. Note orders with multiple side supports include additional layers of cardboard inserts.

8 x heatsink packaging fasteners.

4 x side supports packaging fasteners. Note orders with multiple side supports use longer fasteners.

4 x side supports packaging nuts.

12 x heatsink and side supports packaging oversized washers.

2 x SVALT accessories boxes for heatsink, supports, and fan cooling system accessories.

1 or more x layers of hex cardboard for top/bottom layer cushioning and void fill.

1 x cardboard box that serves as both the shipping and product box.

Notes

Assembly: Assembly required. Follow packaging labels and see Product Setup page for product setup, operation and additional user guide resources.

Multiple Fan Cooling Systems: The 140mm and 80mm combined adjustable-speed fan cooling system includes a bundle discount for a single power supply (fixed for North America and multi-plug for other locations), single fan to power connection adapter, single Noctua NA-FC1 PWM dial-variable speed controller, and single set of Noctua cable adapters. Multiple Noctua fan extension cables are included, and a Noctua fan cable splitter allows both 140mm and 80mm fans to run simultaneously with adjustable speed control.

Discounted Support Bundles: A bundle discount is automatically applied to the shopping cart when you add any one of the Mx products along with any one of the Mx supports from the Mx Components page. The bundle discount can apply to up to three extra sets of supports. Having one or more extra set of supports provides customers with a variety of laptop workstation setups.


Fans

FANS SPECIFICATIONS

rendering showing back view of 140mm fan with grayed out MxDW2
140mm Fans
The 140mm fan and fan hardware ship bolted onto the heatsink. The 140mm fan cooling systems are available with the following high-end Noctua fan kits to provide the best fan quality and performance.


SVALT G09(14) fan w/ 140mm black finger guard, photo
140mm fixed-speed gray fan G09(14)
The G09(14) fan from Noctua offers a good balance between cooling and noise performance.
  • Noctua specifications: Noctua NF-P14s redux-900. 140x140x25mm. 3-pin long connector cord. 12-volt. 9 dark gray blades and light gray frame. 900 rpm speed. 49.3 CFM / 84 m3h airflow. 0.77 mm H2O static pressure. 13.2 dBA noise. See Noctua website for details.
  • Noctua features: Proven design. Pressure-optimized Nine-Blade Design. Vortex-Control Notches. Smooth Commutation Drive 2. SSO-Bearing. See Noctua website for details.

SVALT B15(14) fan w/ 140mm black finger guard, photo
140mm adjustable-speed black fan B15(14)
The B15(14) fan from Noctua covers the full range of ultra-quiet to hi-airflow cooling performance.
  • Noctua specifications: Noctua NF-A14 PWM chromax.black.swap. 140x140x25mm. PMW 4-pin short connector with extension cord. 12-volt. 7 black blades and frame. 300 to 1500 rpm speed range (supports zero rpm stopped speed). 82.5 CFM / 140 m3h airflow. 2.08 mm H2O static pressure. 0 noise when stopped and up to 24.6 dBA noise when set to maximum speed. See Noctua website for details.
  • Noctua features: Award-winning design. chromax.black.swap edition. Flow Acceleration Channels. AAO frame. Stepped Inlet Design. Inner Surface Microstructures. Integrated anti-vibration pads. SSO2 bearing. Metal bearing shell. Custom-designed PWM IC with SCD. Stops at 0% PWM. See Noctua website for details. See Noctua website for details.
  • Includes a Noctua NA-FC1 PWM dial variable-speed controller and accessories. Noctua specs: 36W max power. 5~12V volt range. 3A max current. Noctua features: PWM based control. Customizing motherboard fan control. Manual control mode. “No stop” mode. See Noctua website for details.

SVALT B15.2(14) fan w/ 140mm black finger guard, photo
140mm adjustable-speed black fan B15.2(14)
The B15.2(14) fan from Noctua is their latest next-generation fan design that covers the full range of ultra-quiet to hi-airflow cooling performance.
  • Noctua specifications: Noctua NF-A14x25 G2 PWM chromax.black. 140x140x25mm. PMW 4-pin long connector with extension cord. 12-volt. 9 black blades and frame. 300 to 1500 rpm speed range (supports zero rpm stopped speed). 91.6 CFM / 156 m3h airflow. 2.56 mm H2O static pressure. 0 noise when stopped and up to 24.8 dBA noise when set to maximum speed. See Noctua website for details.
  • Noctua features: Award-winning design. chromax.black edition. Highly optimized P/Q curve for all applications. Excellent on-application acoustics. Progressive Bend impeller. Centrifugal Turbulator hub. Flow Acceleration Channels. Winglets. Ultra-tight tip clearance. Sterrox liquid-crystal polymer compound. AAO frame. Stepped Inlet Design. Inner Surface Microstructures. Anti-vibration gasket and pads with load relief. Integrated anti-vibration pads. SSO2 bearing. Metal bearing shell. etaPERF™ motor with NE-FD6 PWM IC. SupraTorque. PWM control with wide speed range. Stops at 0% PWM. Smooth Commutation Drive 2. Advanced protection features. Safety certifications. See Noctua website for details.
  • Includes a Noctua NA-FC1 PWM dial variable-speed controller and accessories. Noctua specs: 36W max power. 5~12V volt range. 3A max current. Noctua features: PWM based control. Customizing motherboard fan control. Manual control mode. “No stop” mode. See Noctua website for details.

rendering showing back view of 80mm fan with grayed out MxDW2
80mm Fans
The 80mm fan and fan hardware ship assembled into the separate Fx Cooling Fan accessory. The 80mm fan cooling systems are available with the following high-end fan kits to provide the best fan quality and performance:


SVALT R17(8) fan w/ Fx supports and 80mm black finger guard, photo 80mm fixed-speed red fan R17(8)
The R17(8) fan from SilenX offers a good balance between cooling and noise performance.
  • SilenX specifications: SilenX EFX-08-15. 80x80x25mm, 3-pin long connector cord. 12-volt, 7 red blades. black frame. fluid dynamic bearing. 1700 RPM speed. 31.8 CFM airflow. 2.42 mm H2O static pressure. 16.8 dBA noise. See SilenX website for details.

SVALT B22(8) fan w/ Fx supports and 80mm black finger guard, photo
80mm adjustable-speed black fan B22(8)
The B22(8) fan from Noctua covers the full range of ultra-quiet to hi-airflow cooling performance.
  • Noctua specifications: Noctua NF-A14 PWM chromax.black.swap. 80x80x25mm, PWM 4-pin short connector with extension cord. 12-volt. 7 black blades and frame. 450 to 2200 RPM speed range. 32.7 CFM / 55.5 m3h airflow. 2.37 mm H2O static pressure. 0 noise when stopped and up to 17.7 dBA noise when set to maximum speed. See Noctua website for details.
  • Noctua features: Award-winning NF-A8 design. chromax.black.swap edition. Flow Acceleration Channels. AAO frame. Stepped Inlet Design. Inner Surface Microstructures. SSO2 Bearing. Custom-designed PWM IC with SCD. Stops at 0% PWM. See Noctua website for details.
  • Includes a Noctua NA-FC1 PWM dial variable-speed controller and accessories. Noctua specs: 36W max power. 5~12V volt range. 3A max current. Noctua features: PWM based control. Customizing motherboard fan control. Manual control mode. “No stop” mode. See Noctua website for details.

Materials

MATERIALS SPECIFICATIONS

WOOD MATERIAL

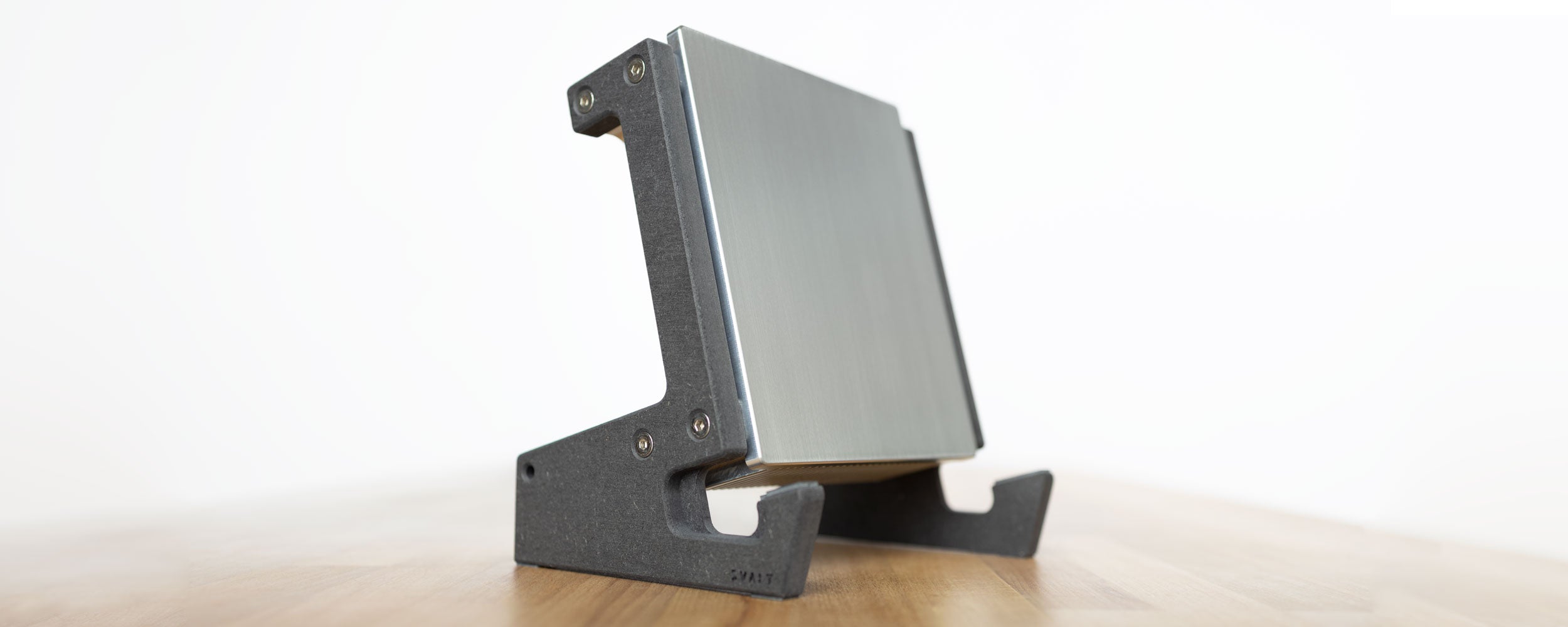

Black-core Fiber
Made from 89% renewable, 100% recovered (reduce waste and emissions), low-formaldehyde (no added formaldehyde), moisture-resistant, high-density wood fiber material. The material has a through-core solid-black color with a hard, fine and smoothly sanded face surface that has a charcoal black appearance with light color fiber flecks.

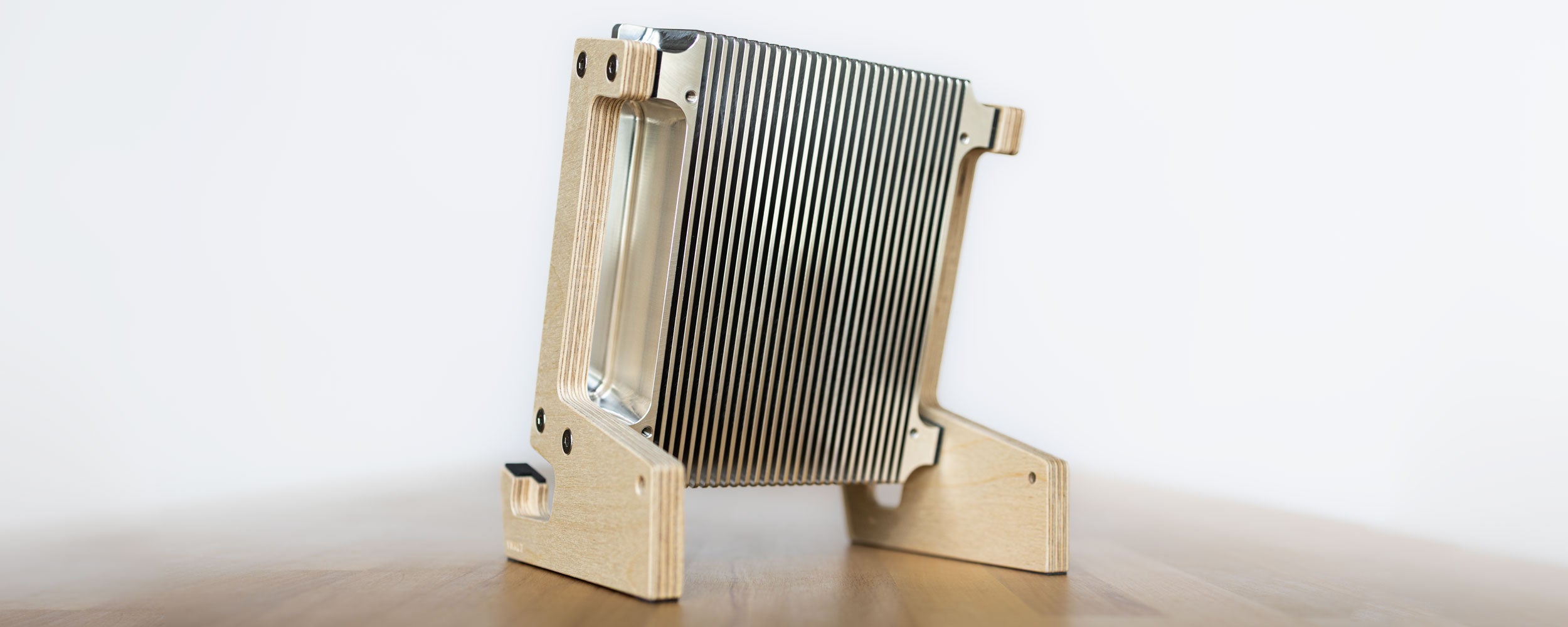

White Hardwood
Made from 9 layers of high-quality baltic birch hardwood veneers to create a solid void-free multi-ply core with formaldehyde-free binder. The baltic birch has a creamy or pale white/beige hue with mostly clear, uniform and light wood grain. The top face has a finely sanded surface without knots or plugs, and the milled edge has alternating light and dark stripes created by the dense, multi-ply construction.

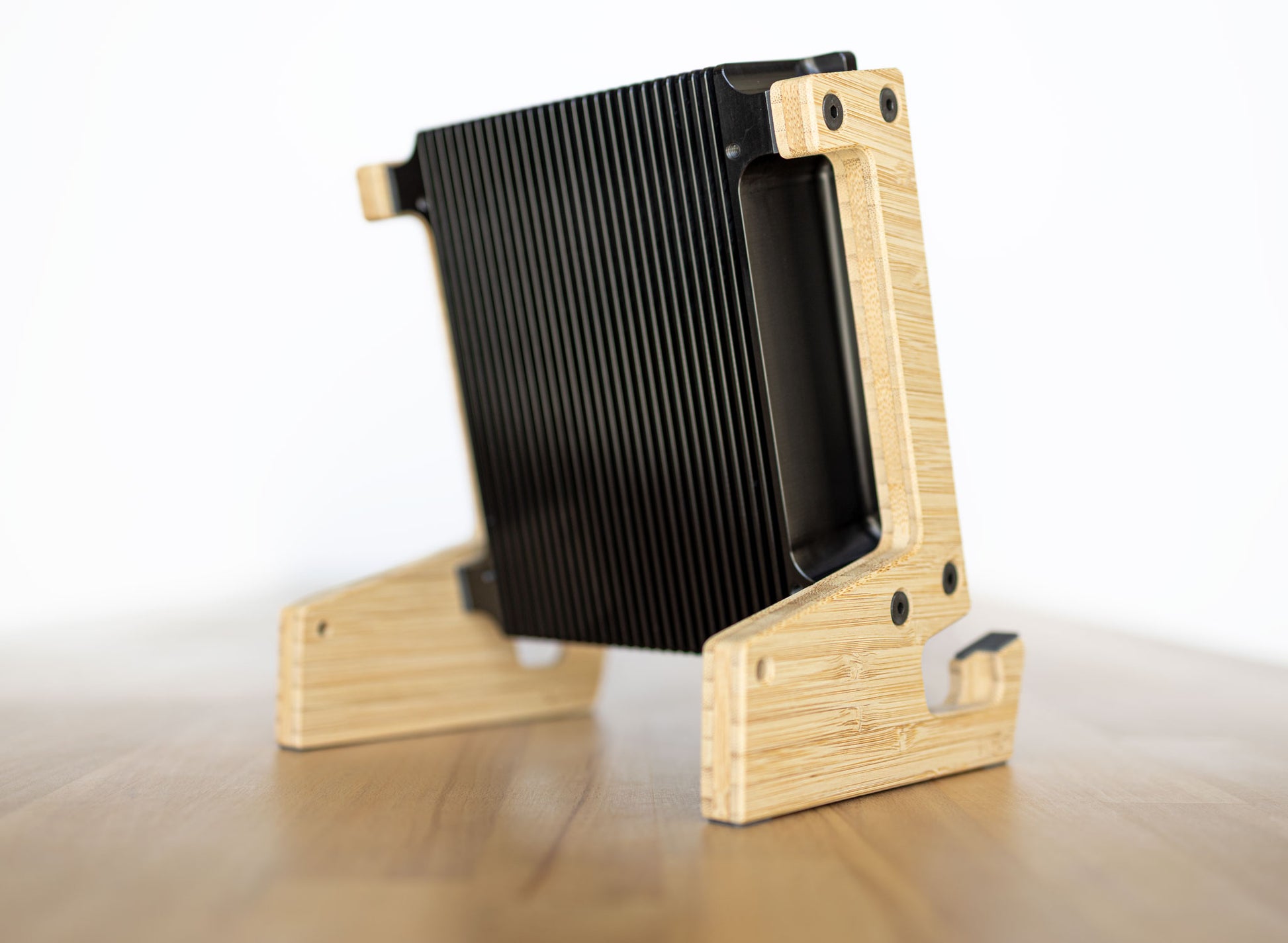

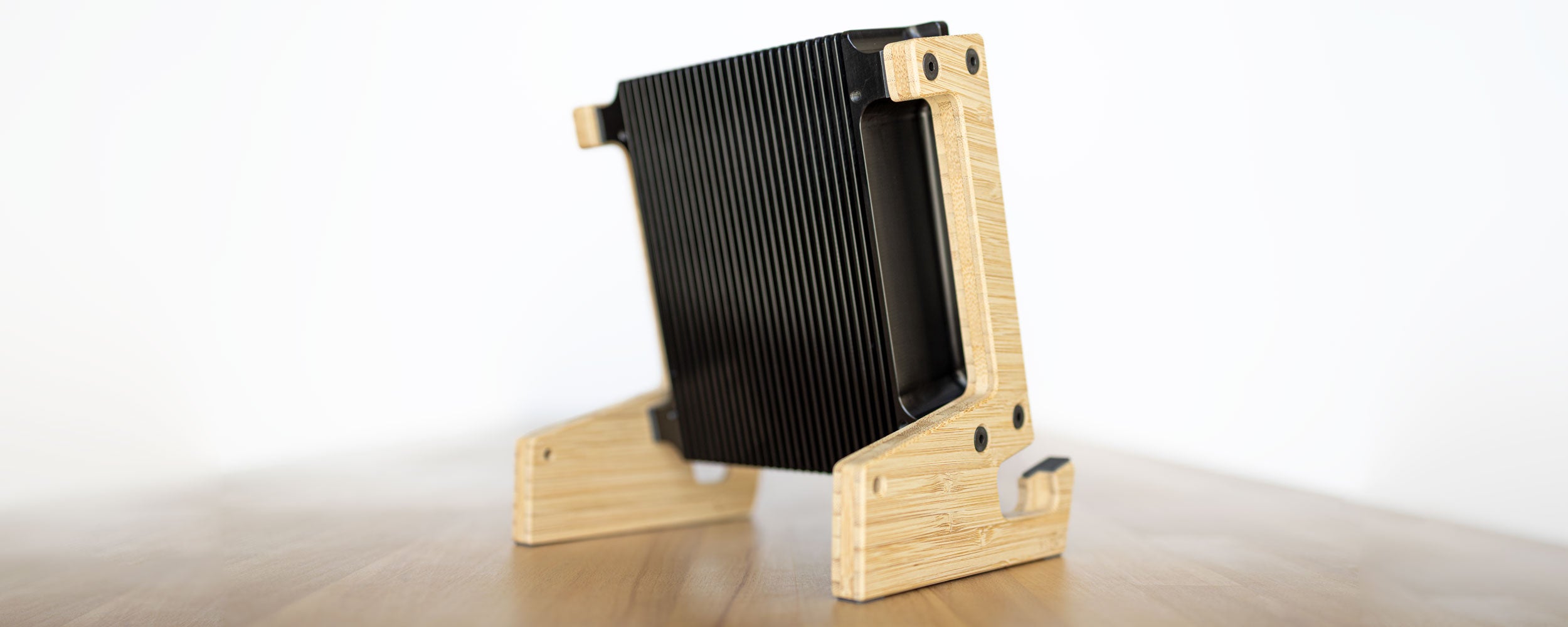

Amber Bamboo
Made from fast-growing, rapidly-renewable and sustainable bamboo in a solid void-free 3-ply vertical edge construction with formaldehyde-free binder. Bamboo ply material makes for exceedingly durable, strong, light, and consistently high-quality milled parts. The bamboo has an amber golden-brown hue produced by caramelizing naturally occurring sugars within the bamboo. The face surface has a smooth finish, and the milled edge shows the two surface layers over the central core layer.

Thickness
Approximately 1/2” thick material with +0.010 / -0.025 inch.

Finish
Unfinished flat face and edge surfaces. The materials are not sealed or coated, and they are left with a more “natural” appearance. While the materials do not require an applied finish, if customers prefer a darker color, brighter reflectivity and aesthetics of an applied finish, then they can choose to apply a wood finish such as linseed oil. Note that if applying a finish treatment, then avoid contacting pads and avoid getting near the pad’s adhesive area as it could result in adhesion failure.

Cleaning
Wipe with a slightly damp cloth, and add a mild dish soap if needed. Note to avoid exposure with no more moisture than a slightly damp cloth, and avoid exposing pad adhesive to moisture.

Variation
As an organic plant based material, there can be variations within an individual part and between parts, which can include changes in color tone (warmer or cooler), color tint (darker or lighter), changes in texture (smoother or rougher), and elements such as knots and small material voids. As a result of variability in material appearance, material sourcing and material availability, the material used for each customer order is subject to change. Product photos are approximate representations of each material type. Material details will be changed and/or updated here within specifications when possible.


ALUMINUM MATERIAL

Material Description
Heatsink milled from solid 6061-T6 aluminum bar stock.

Available Finishes and Colors
The aluminum heatsink is available with the following finish/color options:
- Deep Matte Black Anodize: A deep matte black anodized aluminum with hand and mill finish surfaces.

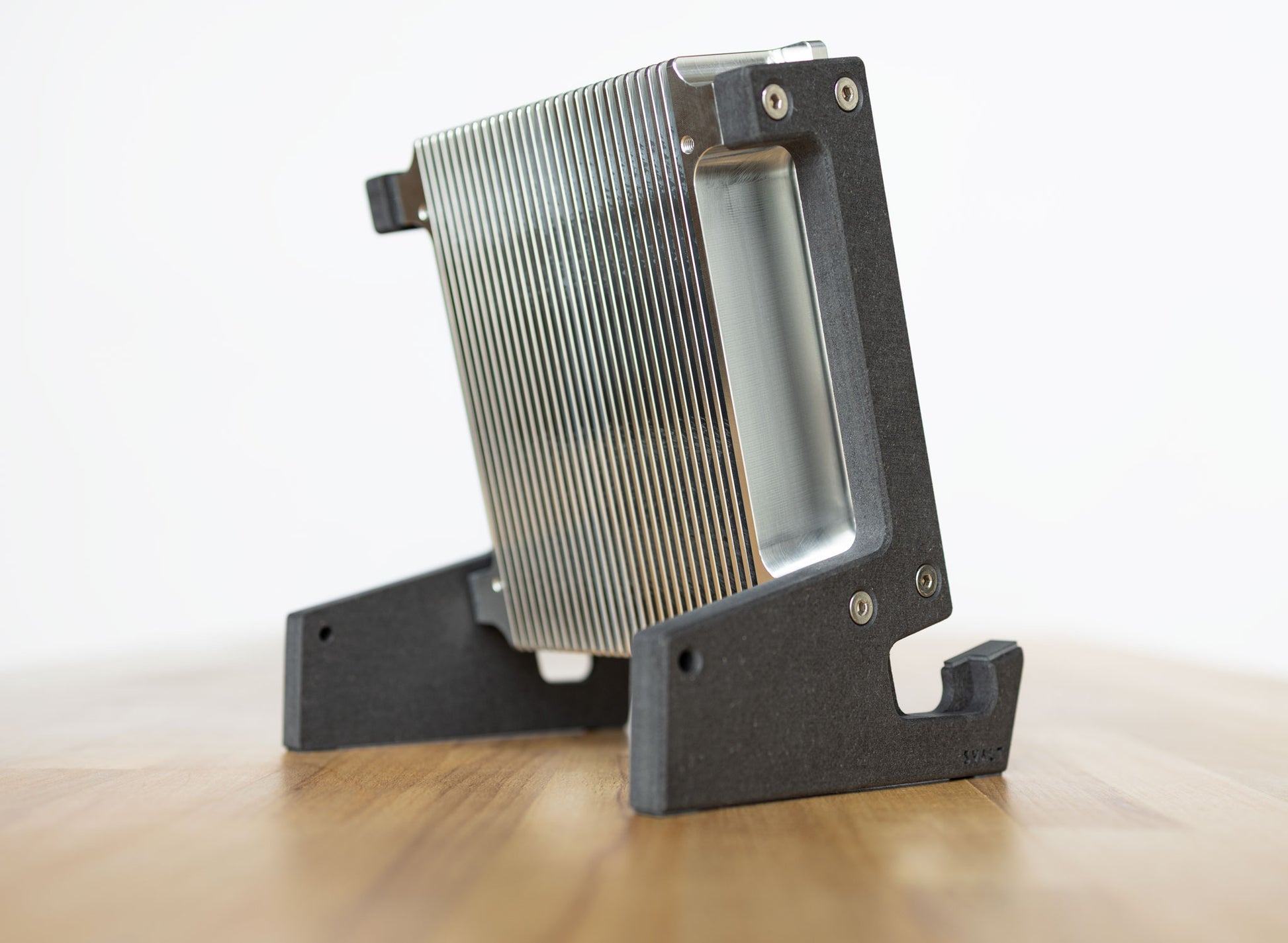

- Raw Aluminum: Raw aluminum with hand and mill finish surfaces have a mildly bright “silver” like appearance.

Cooling Performance
The heatsink with a dark anodize aluminum finish has a slight improvement in emissivity for increased radiant cooling compared to the heatsink with raw aluminum finish, and the new deep matte black finish has a slight improvement over the prior space black finish. This is only a slight improvement that is most apparent with passive airflow cooling, and is less notable when a fan is added to provide active airflow cooling.

Surface Conditions
The top coupling plate of the heatsink is hand finished to create an extra smooth and flat surface for maximum heatsink cooling performance. The coupling plate surface prioritizes functional performance and may not be visually even and consistent. The rest of the heatsink has a CNC machined / milled finish. The interior walls of the cooling fins and cooling fin channels may have a slightly rougher machined finish as the result of fabricating the incredibly thin cooling fin and incredibly narrow cooling channels required to achieve the exceptionally high levels of cooling surface area within a heatsink made from a solid block of aluminum.

Surface Finish for Anodized Aluminum
An anodize finish applied to the raw aluminum increases the thickness of the aluminum’s natural oxide layer, making it more resistant to wear, scratches, and corrosion. The anodize process includes a dye, sealant and other steps to improve appearance and durability. The heatsink’s top coupling plate surface prioritizes functional performance and may not be visually even and consistent. The heatsink’s new deep matte black finish prioritizes cooling performance and so has a more dull appearance.

Surface Finish for Raw Aluminum
Raw aluminum is a strong and enduring material that is naturally resistant to corrosion and does not “rust” like steel. Raw aluminum is inherently stable as the surface forms a thin and protective layer of oxide on the surface when exposed to air, which is a natural type of anodize finish that helps prevent further corrosion. The surface appearance will patina and change over time as a result of this oxidization process, as well as reacting to sunlight, moisture, fingerprints, and other factors.

Care for Raw Aluminum
Keep raw aluminum dry. When handling the heatsink’s top surface laptop coupling plate care should be taken to prevent scratches and exposure to substances that can leave a mark, including finger prints. Surface scratches, marks or other changes to the cosmetic surface may occur over time. Customers may prefer the patina and “weathered” surface appearance, or they can recondition and brighten surfaces as desired. With proper care aluminum can endure for decades and centuries.

Cleaning Anodized Aluminum
Wipe surface with a soft cloth or sponge that is dampened with warm water. Add a mild dish soap if needed. For the heatsink’s top coupling surface, it is recommended to work with the surfaces existing grain from the top-to-bottom and not from side-to-side.

Cleaning and Reconditioning Raw Aluminum
Wipe surface with a soft cloth or sponge that is dampened with warm water. Add a mild dish soap if needed. Additional steps can be used to clean and/or recondition raw aluminum surfaces, including polishing with a polishing product made specifically for use with raw aluminum. Additional steps can be taken as needed to restore or repair, such wet sanding with a fine grain sand paper. Make sure to fully dry raw aluminum with a soft towel and then leave surfaces uncovered to air dry after any cleaning or restoration. For all of the above options, it is recommended to work with the heatsink’s top coupling surface grain that runs from the top-to-bottom and do not work from side-to-side.

Warning
Do not use chemical cleaners, solvents or other substances unless they are specially designed for use with anodized or raw aluminum. Avoid exposing pad adhesive to moisture.


Compatibility

COMPATIBILITY SPECIFICATIONS

diagram showing MxDW2 with different laptop sizes
Dock Support Compatibility
The Mx dock supports use a leaning laptop position instead of a straight vertical position to maintain contact pressure on the heatsink’s thermally conductive coupling plate for improved heat transfer, and for easier clamshell mode setup. The leaning position accommodates a wider range of laptop models and sizes, as well as tablets and other devices.

Mx Product Line Compatibility
All Mx models within the Mx modular heatsink cooling system use a universal support design approach to offer compatibility with a wider range of devices, including all modern Apple laptops, many PC laptops and other devices. The following is a list of compatible devices. The list includes recommended heatsink mounting position when used with first generation high/low stand supports, and recommended laptop support arm size when used with second generation high/low stand supports.

Apple MacBook Pro
  • 2021+ 16-inch (Apple Silicon): position 1 / large arm.
  • 2021+ 14-inch (Apple Silicon): position 3 / small arm.
  • 2023+ 14-inch (Apple Silicon): position 3 / small arm.
  • 2020-2023 13-inch Touch Bar (Apple Silicon): position 4 / small arm.
  • 2019-2020 16-inch Touch Bar (Intel): position 2 / large arm.
  • 2016-2019 15-inch Touch Bar (Intel): position 3 / large arm .
  • 2016-2020 13-inch Touch Bar (Intel): position 4 / small arm.
  • 2016-2019 13-inch non-Touch Bar (Intel): position 4 / small arm.
  • 2012-2018 15-inch Retina (Intel): position 2 / large arm.
  • 2013-2017 13-inch Retina (Intel): position 4 / small arm.
  • 2012 13-inch Retina (Intel): position 4 / small arm.
Apple MacBook Air
  • 2023+ 15-inch (Apple Silicon): position 2 / large arm.
  • 2022+ 13-inch (Apple Silicon): position 4 / small arm.
  • 2020-2023 13-inch Retina (Apple Silicon): position 4 / small arm.
  • 2018-2020 13-inch Retina (Intel): position 4 / small arm.
  • 2010-2019 13-inch (Intel): position 4 / small arm.
Apple MacBook Neo
  • 2026+ 13-inch (Apple Silicon): position 4 / small arm.
Apple MacBook
  • 2015-2018 12-inch Retina (Intel): position 4 / small arm.
Other Devices
  • The Mx is compatible with many other laptops, tablets and devices per the Compatibility Criteria below.

Compatibility Criteria
The Mx is a fully modular system built around the core heatsink component. The top of heatsink has an extra large coupling plate for direct metal-to-metal coupling with a device’s metal enclosure/chassis to thermally conduct heat from the device and into the heatsink. For device compatibility with the Mx modular heatsink cooling system, all of the following compatibility criteria must be met:
  • Metal Coupling: For proper heatsink coupling and maximum thermally conductive heat transfer, the back/bottom of the device should have a metal enclosure/chassis without a protective cover/case installed over or on top of the metal surface.
  • Flat Coupling: For proper heatsink coupling and maximum thermally conductive heat transfer, the back/bottom of the device should have a flat metal surface free of pads, bumps and protrusions within the heatsink’s coupling area.
  • Coupling Area: For proper heatsink coupling and maximum thermally conductive heat transfer, the back/bottom of the device should have flat metal surface that is at least 6.750 inches front-to-back and 5.950 inches side-to-side. A smaller area can work with a device that is smaller than the heatsink and meets other compatibility criteria.
  • Air Vents: If the device has a built-in air cooling system, then the device’s vent locations and their direction of airflow needs to be considered, such as the following: 1) The device’s vents should not be covered by the heatsink’s coupling area. 2) The device’s hot exhaust vents should not blow directly onto the heatsink.
  • Fit w/ Dock Supports: The Dock Supports position the heatsink above the device’s bottom edge by approximately 0.430 inches.
  • Fit w/ Stand Supports: The second generation High/Low Stand Supports use laptop support arms available in two sizes, large and small. The large arms position the front edge of heatsink approximately 2.5 inches from the device’s front edge. The small arms position the front edge of heatsink approximately 1.4 inches from the device’s front edge.

Learn More
See Laptops page to learn more.


Testing

TESTING SPECIFICATIONS

SVALT model approximate performance comparison, graphic rendering Mx Cooling Performance

The Mx product line was designed to exceed everything that had come before with extreme cooling capabilities. The Mx's massive thermally conductive heatsink silently pulls heat from the laptop to help reduce temperatures and quiet built-in fans. While the Mx’s optional fan cooling system helps tackle extra high-intensity and long-duration workloads.

Test Results

SVALT product cooling and audio performance shown in the graph above is approximate and based on a wide range of averaged and normalized testing through conceptual research, product development and final production proving phases.

Test results vary depending on a product’s configuration, fan use, fan model, fan speed setting, laptop model, laptop configuration, laptop operation, workstation setup, external monitor setup, and overall testing conditions.

Test Conditions

Mx tests were conducted per SVALT’s testing guidelines that control testing conditions.

Test Laptop Configurations

Mx tests for all models and configurations were conducted with the laptop in closed-screen operation while connected to a single low-resolution external monitor. Comparison tests were also conducted with the screen open and without an external monitor for high and low stand models.

As a general condition for all laptop models, adding a high-resolution external monitors and/or multiple external monitors will increase demand on the laptop and generate more heat. Demand and heat generation can be reduced by using only the laptop’s built-in display, or by closing the built-in display and connected to a single low resolution external monitor.

Test Mx Model Configurations

Tests were conducted with multiple Mx model configurations. In general, results were more similar than dissimilar between the different Mx model configurations as they all share the same massive heatsink and all are available with an optional fans to boost cooling performance.

Mx Model Comparison

When selecting a Mx model, it is recommended to select a model based on a desired workstation setup, such as the dock supports for positioning the laptop upright with screen closed and moved aside to free up desk space, the high stand supports for improved screen viewing ergonomics with the laptop’s built-in screen, or the low stand supports for a low-profile setup.

However, if you would like to understand the differences between each Mx model’s cooling design, then see the following detailed comparisons.

New 2nd Gen Mx Models: Cooling design advantages per Mx model with new second generation supports:

MxSW2-hi
The second generation high stand supports use a totally new design that brings the following significant improvements:
  • Lower Heatsink Support Angle: Improves conductive cooling design by approximately halving the laptop support angle so that more of the laptop’s weight presses down onto the heatsink’s conductive coupling plate for increased heat transfer. The laptop support angle has been set to as low as possible while still retaining sufficient forward slope to hold the laptop in place.
  • Higher Heatsink Support Position: Improves airflow cooling design by approximately doubling the heatsink’s and 140mm fan’s minimum height above the desk surface. More open space under the heatsink increases passive airflows through the heatsink’s cooling fins for increased heat extraction. More open space under the 140mm fan reduces fan intake restriction for increased fan efficiency with lower noise and higher airflow.
  • Larger Heatsink Support Opening: Improves airflow cooling design by approximately doubling the heatsink support’s open area. More open area increases passive airflows through and around the heatsink, as well as increases active airflows into and out of the 140mm fan.
  • New Laptop Support Arms: Improves heatsink cooling design for both smaller and larger laptops by using new bolt-on laptop support arms of different sizes that optimally place the laptop for heatsink cooling.
  • New Heatsink Finish: Improves radiant passive cooling by increasing emissivity with a new matte black anodize finish.

MxSW2-lo
The second generation low stand supports use a totally new design that brings the following significant improvements:
  • Lower Heatsink Support Angle: Improves conductive cooling design by reducing the laptop support angle to a flat horizontal so that all of the laptop’s weight presses down onto the heatsink’s conductive coupling plate for increased heat transfer. The laptop support angle is adjustable and can be set to a flat horizontal position. When set to a low or flat horizontal position, then the laptop is more likely to slide or rotate on the heatsink’s smooth coupling surface.
  • Higher Heatsink Support Position: Improves airflow cooling design by approximately tripling the heatsink’s minimum height above the desk surface so that more airflow moves under, around and through the heatsink for increased heat extraction.
  • Larger Heatsink Support Opening: Improves airflow cooling design by approximately quadrupling the heatsink support’s open area for increased airflows through and around the heatsink.
  • New Laptop Support Arms: Improves heatsink cooling design for both smaller and larger laptops by using new bolt-on laptop support arms of different sizes that optimally place the laptop for heatsink cooling.
  • New Heatsink Finish: Improves radiant passive cooling by increasing emissivity with a new matte black anodize finish.

MxDW2
The second generation dock supports use a refined design to bring the following improvements:
  • Raised Position: Improves airflow cooling design by raising the laptop and heatsink to a higher position for increased airflows under and around the laptop and heatsink.
  • Larger Openings: Improves airflow cooling design by enlarging the lower support cutout located behind the padded laptop support shelf for increased airflows under and around the laptop and heatsink.
  • New Heatsink Finish: Improves radiant passive cooling by increasing emissivity with a new matte black anodize finish.

All Mx Models
Cooling design advantages per Mx model configuration:
  • MxSW2-hi: The second generation high stand supports include numerous cooling design improvements with approximately the greatest cooling design advantages.
  • MxSW2-lo / MxSW-lo / MxS-lo / MxSW2-hi / MxSW-hi / MxS-hi: The low and high stand supports have a nearer to horizontal laptop support orientation, which allows the weight of the laptop to press down onto the heatsink’s conductive coupling plate, which in turn increases conductive heat transfer between the laptop and heatsink. The new MxSW2-lo second generation supports provide the option for a flat horizontal laptop position, while the new MxSW2-hi second generation supports reduce the laptop angle by approximately half of the first generation supports.
  • MxDW2 / MxDW / MxD: The dock supports allow for the simultaneous use of both the 140mm and 80mm fans, which increases both heatsink and laptop cooling. The extra large size of 140mm fan provides both maximum heatsink cooling. The 80mm fan is positioned to flush out hot air, and for the 2021+ MacBook Pro, and other laptops that include a center intake vent along the back/hinge edge, the 80mm fan drive cooling air into the center intake vent to directly cool processors.
  • MxDW2 / MxDW / MxD / MxSW2-hi / MxSW-hi / MxS-hi: The 140mm fan's larger size generates slightly more airflow for a given amount of noise generation. The 140mm fan's larger size spans the full width of the heatsink and nearly span the full length, which moves more cooling air over/through the heatsink cooling fins and removes more heat from the heatsink. The new MxSW2-hi second generation supports have approximately double the open area and approximately half the incline angle for improved fan airflow and increased fan efficiency.
  • MxDW2 / MxDW / MxD / MxSW2-lo / MxSW-lo / MxS-lo: The dock and low stand supports position laptops with a center intake vent so that the 80mm fan can simultaneously cool the heatsink and drive air into the laptop for direct internal processor cooling.
  • Mx All Models: The heatsink with a dark anodize aluminum finish has a slight improvement in emissivity for increased radiant cooling compared to the heatsink with raw aluminum finish, and the new deep matte black finish has a slight improvement over the prior space black finish. This is only a slight improvement that is most apparent with passive airflow cooling, and is less notable when a fan is added to provide active airflow cooling.

All Mx Models per Laptop Models
Cooling design advantages per laptop model:
  • All laptop models: The second generation high stand supports (MxSW2-hi) include numerous cooling design improvements with approximately the greatest cooling design advantages for all laptop models.
  • 2021+ 14-inch MacBook Pros: The second generation stands (MxSW2-hi / MxSW2-lo) use separate bolt-on laptop support arm modular components to position the laptop on the heatsink for optimal cooling. The arms are available in two sizes, large and small, that maintain the same high level of cooling optimization for both large and small laptops. Smaller 2021+ 14-inch MacBook Pro laptops benefit from unrestricted vent airflow for improved laptop built-in cooling efficiency, and offer an improvement in cooling with smaller laptops compared to first generation stands.
  • 2021+ 16/14-inch MacBook Pros: The 2021+ MacBook Pro includes a built-in fan cooling system with a center intake vent along the bottom/hinge edge, as well as two exhaust vents on both sides of the intake vent. The MxDW2 / MxDW / MxD models with both 140mm and 80mm fans running simultaneously increases cooling performance. The MxSW2-lo / MxSW-lo / MxS-lo models with 80mm fan also increases cooling performance. This is the case for this laptop model, and for laptops with similar built-in cooling systems.
  • 2022+ 15/13-inch MacBook Airs: The 2022+ MacBook Air does not include a built-in fan cooling system or associated venting. The MxSW2-hi / MxSW-hi / MxS-hi models with 140mm fan increases cooling performance. The MxDW2 / MxDW / MxD models with 140mm fan also increases cooling performance. This is the case for this laptop model, and for laptops with similar built-in cooling systems.

Learn More
See Performance page and Testing Guide page to learn more.


Related Products

1 9

Product Selection Guides
